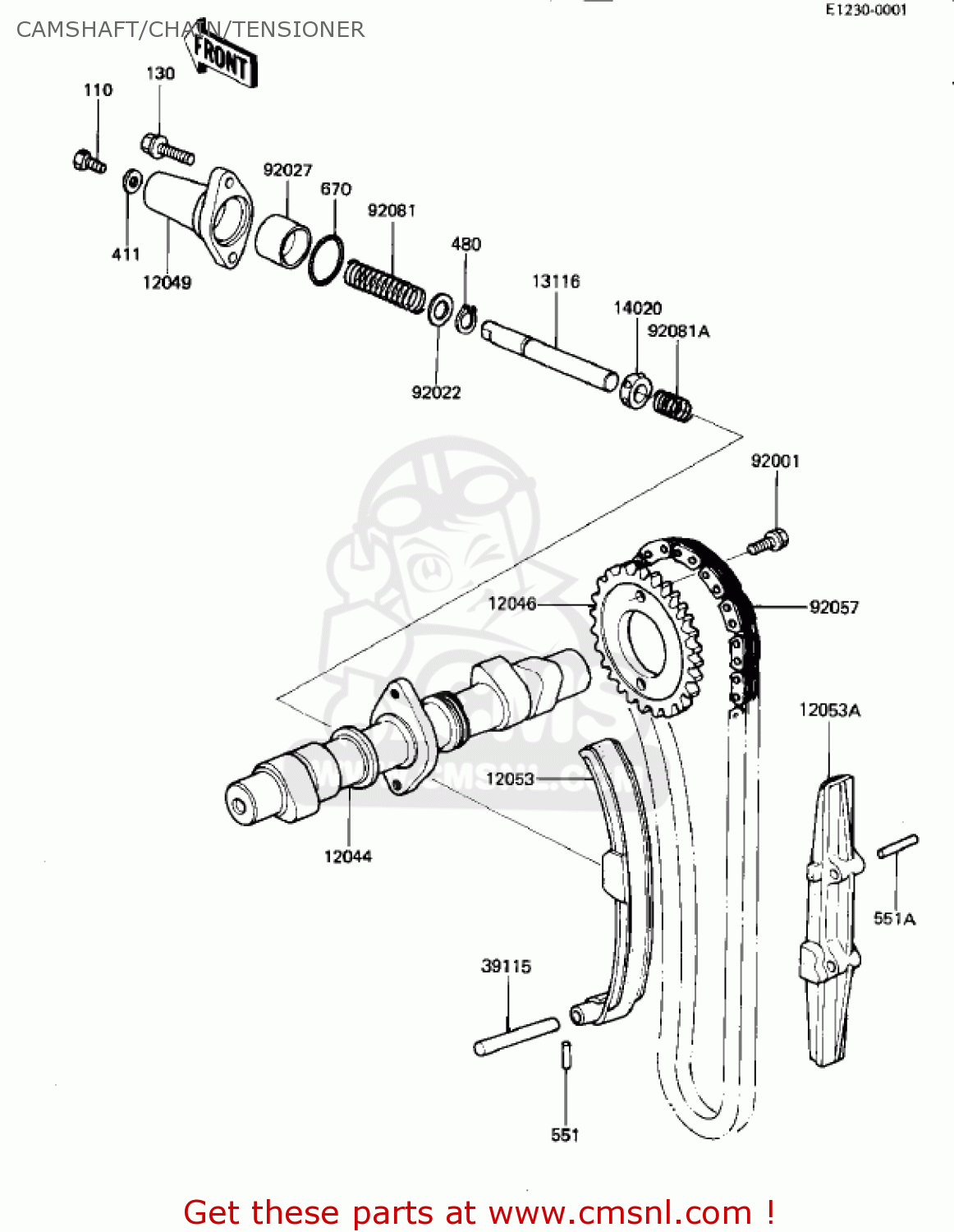

CAMSHAFT/CHAIN/TENSIONER

ref

part #

description

quantity

12044

120445001
ref: 12044

CAMSHAFT,VALVE

€ 114.50

12046

120461022
ref: 12046

SPROCKET,CAM,46T

€ 47.50

12049

120491010
ref: 12049

BRACKET,TENSIONER

€ 16.00

12053

120531041
ref: 12053

GUIDE-CHAIN,FR

€ 45.50

12053A

120531042
ref: 12053A

GUIDE,CAM CHAIN REAR

€ 25.50

13116

131161022
ref: 13116

ROD-PUSH,TENSIONER

€ 11.50

14020

140201002
ref: 14020

RETAINER,TENSIONER

€ 10.50

39115

391151001
ref: 39115

SHAFT,IDLER,9X55

€ 2.50

92001

92003208
ref: 92001

BOLT,SPROCKET FITTING

€ 2.50

92022

920221181
ref: 92022

WASHER,10.2X14.5X1.0

€ 2.50

92027

920271240
ref: 92027

COLLAR,TENSIONER

€ 10.00

92057

920571038
ref: 92057

CHAIN,CAMSHAFT,114L

€ 21.50

92081

920811206
ref: 92081

SPRING,TENSIONER

€ 3.00

92081A

920811207
ref: 92081A

SPRING,TENSIONER

€ 2.50

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

130

130G0620
ref: 130

BOLT,FLANGED,6X20

€ 2.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

480

480J1000
ref: 480

CIRCLIP-TYPE-C,10MM

€ 0.50

551

551A0325
ref: 551

PIN,DOWEL,3X25

€ 2.00

551A

551A0532
ref: 551A

PIN,DOWEL,5X32

€ 2.00

670

670B2021
ref: 670

O RING,21MM

€ 3.00

all assemblies
