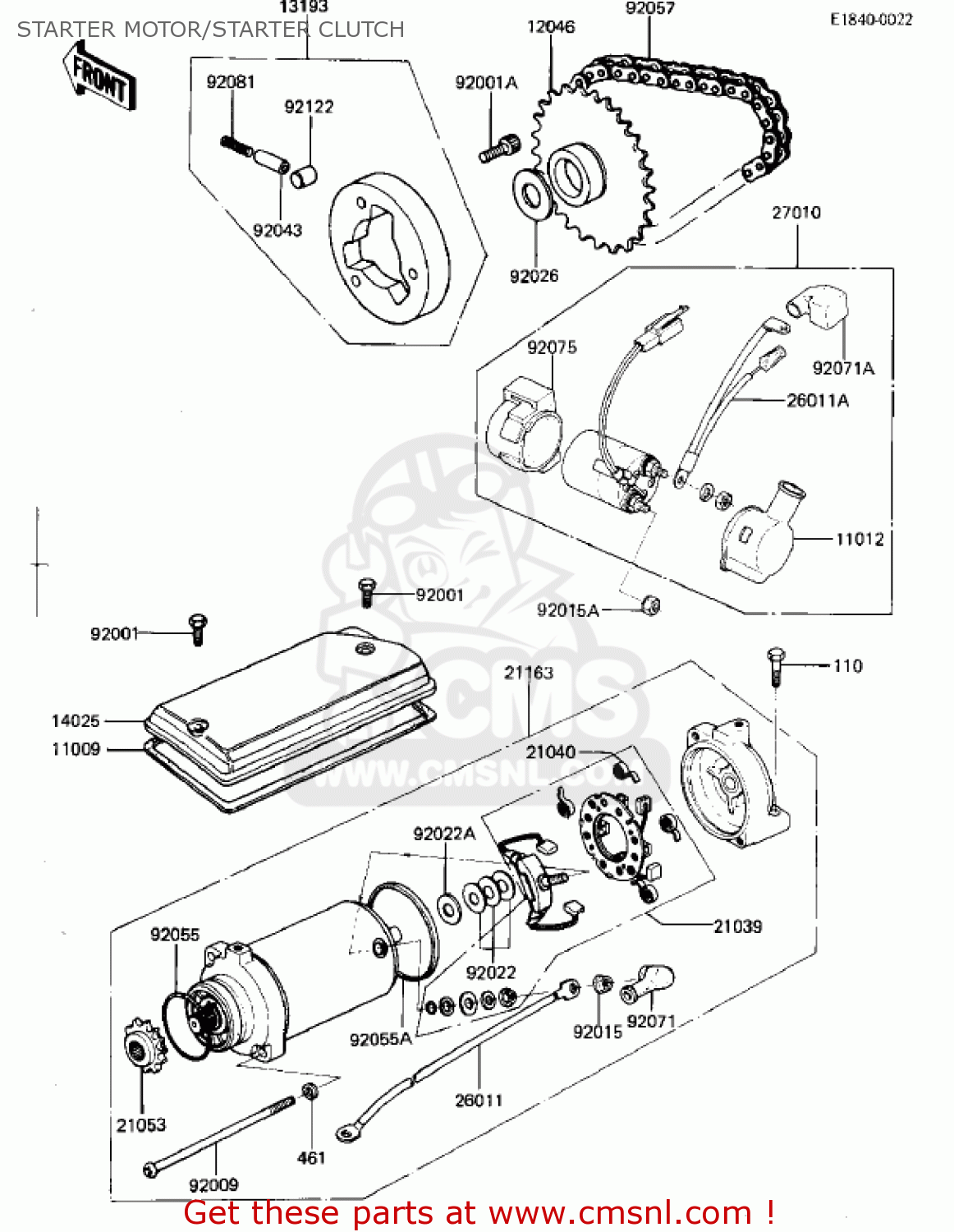

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

11009

110091006
ref: 11009

GASKET,STARTER COVER (NAS)

€ 8.00

11012

21141004
ref: 11012

COVER,MAG SWITCH

€ 8.50

12046

120461030
ref: 12046

SPROCKET,ONWAY CLUTCH

€ 99.00

13193

131931001
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 141.50

14025

140251284
ref: 14025

COVER,STARTER

€ 16.00

21039

210391005
ref: 21039

BRUSH,CARBON

€ 112.50

21040

210401002
ref: 21040

SPRING-BRUSH

€ 5.50

21053

21053002
ref: 21053

SPROCKET,STARTNG MOT

€ 24.50

21163

211631011
ref: 21163

MOTOR ASSY,STARTER

€ 595.00

26011

26010035
ref: 26011

WIRE,STARTER LEAD

€ 33.50

26011A

260111107
ref: 26011A

WIRE LEAD,MAGNETIC SW

€ 20.00

27010

270101068
ref: 27010

SWITCH,MAGNETIC

€ 111.50

92001

920011151
ref: 92001

BOLT,6X10

€ 3.00

92001A

120P0816
ref: 92001A

BOLT-SOCKET

€ 2.50

92009

920091097
ref: 92009

SCREW,PAN HEAD,6X119

€ 9.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

92017014
ref: 92015A

NUT,LOCK,6MM

€ 4.00

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221132
ref: 92022A

WASHER,9.1X18X0.8

€ 4.00

92026

920261004
ref: 92026

SPACER,25X40X1

€ 4.50

92043

92043087
ref: 92043

PIN

€ 8.00

92055

21027005
ref: 92055

'O' RING,42.8MM

€ 5.50

92055A

920551086
ref: 92055A

O RING,64MM

€ 6.50

92057

920571009
ref: 92057

CHAIN,DYNAMO

€ 12.50

92071

21017020
ref: 92071

CAP,STARTING MOTOR

€ 6.00

92071A

21017021
ref: 92071A

CAP,MAG SWITCH TEMNL

€ 8.50

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92081

92081110
ref: 92081

SPRING

€ 3.00

92122

92122004
ref: 92122

ROLLER,15X13

€ 7.00

110

112G0625
ref: 110

BOLT-UPSET,6X25

€ 4.00

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

all assemblies
