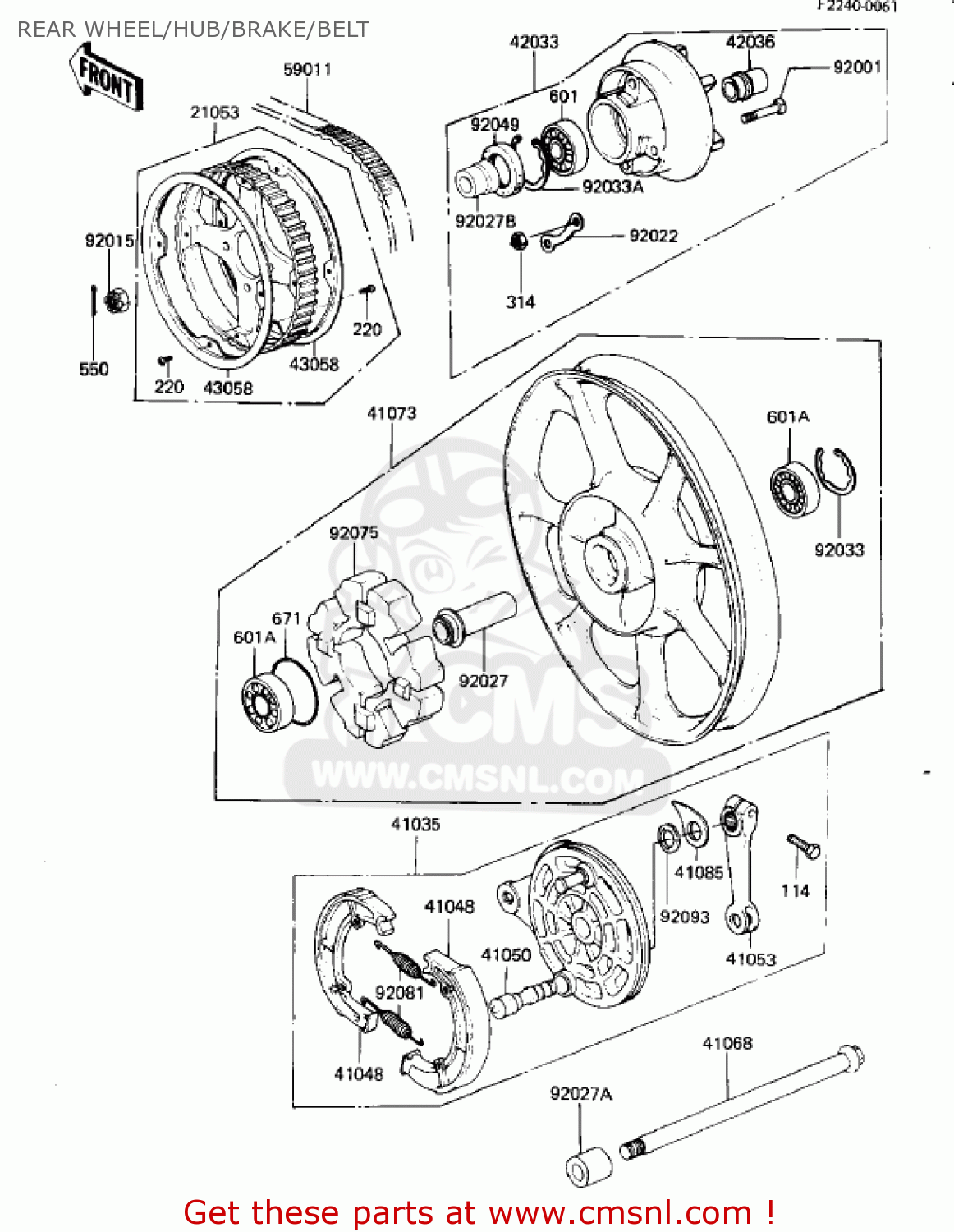

REAR WHEEL/HUB/BRAKE/BELT

ref

part #

description

quantity

21053

210531009
ref: 21053

SPROCKET-ASSY,RR HUB

€ 300.50

41035

410351087
ref: 41035

PANEL-ASSY-BRAKE,RR,F

€ 106.00

41048

410481069
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41050

410501001
ref: 41050

CAM-BRAKE

€ 24.00

41053

410531016
ref: 41053

LEVER-BRAKE CAM

€ 37.50

41068

410681060
ref: 41068

AXLE,RR,L=286

€ 50.50

41073

410731098
ref: 41073

WHEEL-ASSY,RR,SOLID

€ 358.00

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331046
ref: 42033

COUPLING-ASSY,RR HUB

€ 112.00

42036

420361002
ref: 42036

SLEEVE,COUPLING

€ 27.50

43058

430581018
ref: 43058

RING,HUB SPROCKET

€ 53.50

59011

590111009
ref: 59011

BELT,DRIVE,129T

€ 349.00

92001

92003156
ref: 92001

BOLT,RR SPROCKET FIT

€ 6.50

92015

92015055
ref: 92015

NUT,16MM

€ 8.00

92022

92088005
ref: 92022

WASHER,SPROCKET LOCK

€ 4.00

92027

920271192
ref: 92027

COLLAR,REAR HUB BRG

€ 11.50

92027A

920271395
ref: 92027A

COLLAR,L=34.5

€ 9.00

92027B

920271398
ref: 92027B

COLLAR,L=30.5

€ 14.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

92052006
ref: 92049

OIL SEAL WTC35527

€ 6.50

92075

920751008
ref: 92075

DAMPER,REAR HUB SHOCK

€ 53.50

92081

42020004
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00

601A

601B630322
ref: 601A

UNAVAILABLE IN PRICE BOOK

€ 0.00

671

671B2560
ref: 671

O RING,60MM

€ 1.50

all assemblies
