FRONT HUB/BRAKE ('80 B1)
KZ440B2 1981 USA / MPH

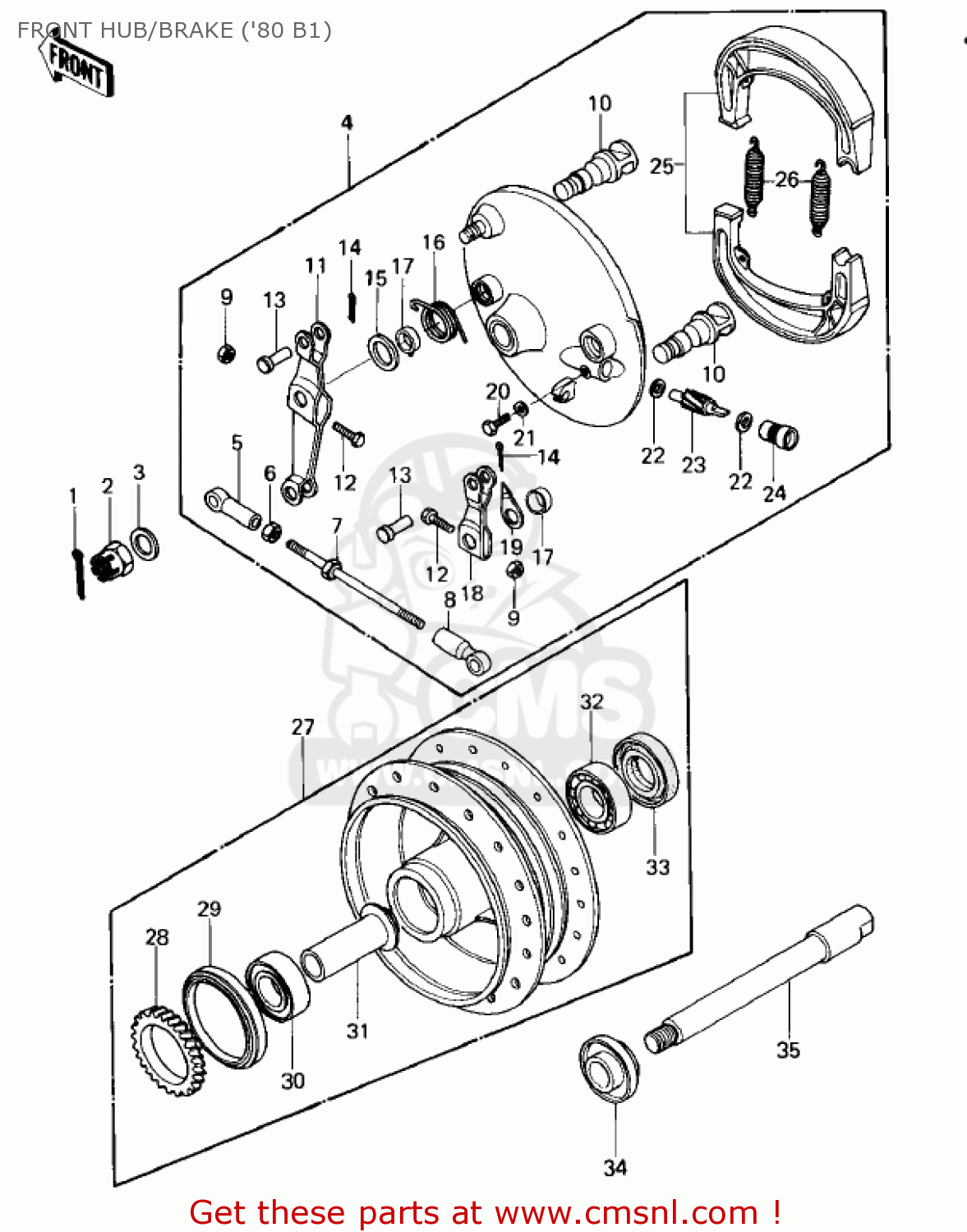

Front hub/brake ('80 b1) diagram KZ440B2 1981 USA / MPH
FRONT HUB/BRAKE ('80 B1) KZ440B2 1981 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
550D3025
ref: 1
PIN-COTTER,3.0X25
€ 0.50
2
42045020
ref: 2
NUT,14MM
€ 6.50
3
410B1400
ref: 3
410B1400
4
410351005
ref: 4
PANEL ASSY,FR BRAKE
€ 290.50
5
41058008
ref: 5
RODEND-BRAKE
€ 13.00
6
311B0500
ref: 6
NUT-HEX
€ 0.50
7
41057004
ref: 7
ROD-BRAKE
€ 32.50
8
41058009
ref: 8
RODEND-BRAKE
€ 13.00
9
41072007
ref: 9
NUT,6MM
€ 2.50
10
41050016
ref: 10
CAM-BRAKE
€ 48.00
11
41053011
ref: 11
LEVER-BRAKE CAM
€ 28.00
12
112G0630
ref: 12
BOLT-UPSET
€ 1.00
13
41055003
ref: 13
PIN
€ 5.50
14
550D1210
ref: 14
PIN-COTTER,1.2X10
€ 1.50
15
41052005
ref: 15
WASHER,14.5X25X1
€ 3.00
16
41056001
ref: 16
SPRING-FR BRK CAM LEV
€ 9.50
17
41051001
ref: 17
DUST SHIELD-BRAKE CAM
€ 2.50
18
41053012
ref: 18
LEVER-BRAKE CAM
€ 19.50
19
41085015
ref: 19
INDICATOR,FR BRAKE
€ 6.00
20
112G0618
ref: 20
BOLT-UPSET
€ 0.50
21
411B0600
ref: 21
WASHER-PLAIN,6MM
€ 0.50
22
41063003
ref: 22
WASHER,7.2X12X0.5
€ 2.50
23
41060007
ref: 23
PINION-SPEEDOMETER
€ 24.00
24
41062003
ref: 24
BUSHING,SPEEDOMETER C
€ 21.00
25
41048019
ref: 25
SHOE, FRONT BRAKE (MCA)
€ 21.00
26
41049004
ref: 26
SPRING-FRNT BRK SHOE
€ 4.00
27
410341008
ref: 27
DRUM ASSY,FR BRAKE
€ 131.00
28
410601014
ref: 28
GEAR,SPEEDOMETER,30T
€ 17.50
29
92050017
ref: 29
OIL SEAL WOC55687
€ 18.50
30
601B6302Z
ref: 30
BEARING-BALL,#6302ZC3
€ 22.50
31
41039011
ref: 31
SPACER-FRNT AXLE BERG
€ 6.00
32
601B6302
ref: 32
BEARING-BALL,#6302C3
€ 16.00
33
92052005
ref: 33
OIL SEAL WTC25428
€ 13.50
34
920271049
ref: 34
FRONT AXLE COLLAR
€ 5.50
35
41068045
ref: 35
AXLE,FRONT
€ 25.00
