CARBURETOR ASSY ('81 B2)
KZ440B2 1981 USA / MPH

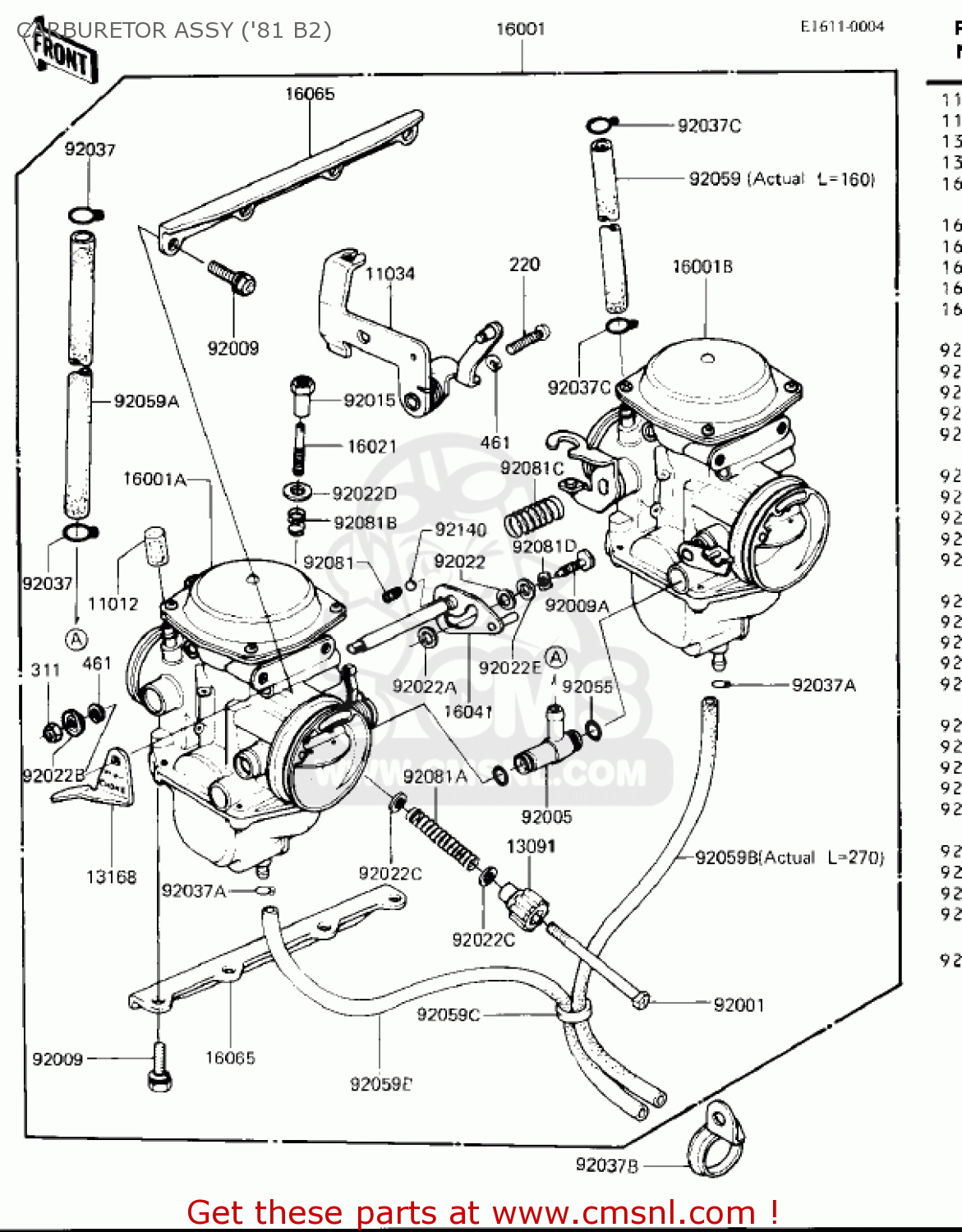

Carburetor assy ('81 b2) diagram KZ440B2 1981 USA / MPH
CARBURETOR ASSY ('81 B2) KZ440B2 1981 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
11012
110121129
ref: 11012
CAP,RUBBER
€ 4.50
11034
110341805
ref: 11034
BRACKET,THROTTLE CABL
€ 15.50
13091
130911078
ref: 13091
HOLDER,ADJUST
€ 9.00
13168
131681065
ref: 13168
LEVER,CHOKE
€ 8.50
16001
160011241
ref: 16001
CARBURETOR ASSEMBLY
€ 428.00
16001A
160011292
ref: 16001A
CARBURETOR,LH
€ 177.50
16001B
160011293
ref: 16001B
CARBURETOR,RH
€ 218.00
16021
160211027
ref: 16021
SCREW,SLOTTED
€ 12.00
16041
160411020
ref: 16041
SHAFT,LINK
€ 36.00
16065
160651012
ref: 16065
PLATE,STAY
€ 23.00
92001
920011328
ref: 92001
BOLT,HEX HEAD,5X70
€ 6.50
92005
920051026
ref: 92005
FITTING,FUEL TUBE
€ 28.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091096
ref: 92009A
SCREW,LINK SHAFT
€ 6.00
92015
920151118
ref: 92015
NUT,5MM
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221200
ref: 92022A
WASHER,6.4X9.4X0.8,PO
€ 2.00
92022B
920221201
ref: 92022B
WASHER,LOCK,5M/M
€ 2.00
92022C
920221203
ref: 92022C
WASHER
€ 2.50
92022D
920221204
ref: 92022D
WASHER
€ 2.00
92022E
920221207
ref: 92022E
WASHER,6.5X11X1.2,STE
€ 2.50
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371682
ref: 92037B
CLAMP,TUBE
€ 4.00
92055
920551004
ref: 92055
O RING
€ 2.50
92059
920591001
ref: 92059
HOSE, FUEL INLET
€ 13.50
92059A
920591029
ref: 92059A
TUBE,FUEL,7.3X12.5X20
€ 18.50
92059B
92059111
ref: 92059B
HOSE,FUEL OVERFLOW
€ 17.50
92059C
920591141
ref: 92059C
TUBE,CLAMP
€ 7.00
92081
920811249
ref: 92081
SPRING
€ 4.00
92081A
920811251
ref: 92081A
SPRING
€ 3.00
92081B
920811252
ref: 92081B
SPRING
€ 2.50
92081C
920811258
ref: 92081C
SPRING
€ 3.00
92081D
920811262
ref: 92081D
SPRING,WAVED WASHER
€ 3.00
92140
921401004
ref: 92140
BALL,STEEL,3/16"
€ 1.50
220
220B0520
ref: 220
SCREW-PAN-CROS
€ 0.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
