CLUTCH ('80 B1)

KZ440B2 1981 USA / MPH

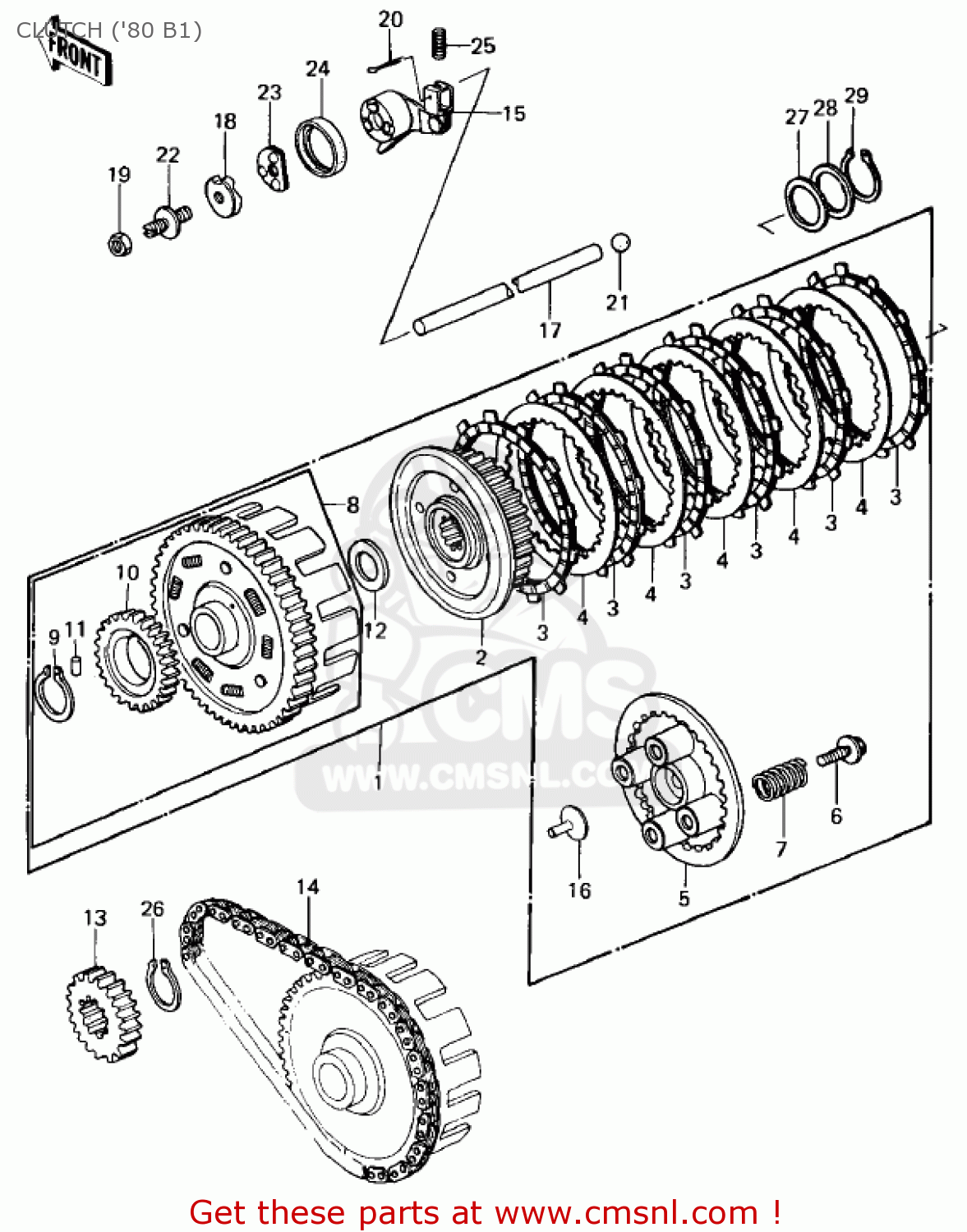

Clutch ('80 b1) diagram KZ440B2 1981 USA / MPH

CLUTCH ('80 B1) KZ440B2 1981 USA / MPH

CLUTCH ('80 B1) KZ440B2 1981 USA / MPH

prices are in EUR

ref

part #

description

quantity

1

130811019
ref: 1

CLUTCH ASSY

€ 364.50

2

13087040
ref: 2

HUB,CLUTCH

€ 56.00

3

130881001
ref: 3

PLATE-FRICTION (NAS)

€ 11.50

4

13089026
ref: 4

PLATE,CLUTCH STEEL (NAS)

€ 6.50

5

131871003
ref: 5

PLATE,CLUTCH OPERATNG

€ 35.50

6

920011066
ref: 6

BOLT, CLUTCH SPR FITT

€ 4.00

7

920811033
ref: 7

SPRING,CLUTCH

€ 6.50

8

130951008
ref: 8

HOUSING-COMP-CLUTCH

€ 237.50

9

480J3800
ref: 9

CIRCLIP-TYPE-C,38MM

€ 3.50

10

590511001
ref: 10

GEAR OIL PUMP,34T

€ 32.00

11

610A0606
ref: 11

PIN,DOWEL,6X6

€ 1.50

12

92022288
ref: 12

WASHER,CLUTCH THRUST

€ 9.00

13

13121030
ref: 13

SPROCKET,PRIMARY

€ 38.50

14

13122005A
ref: 14

CHAIN,63-139X74L(TUBA

€ 208.00

15

131021004
ref: 15

RELEASE-COMP-CLUTCH

€ 46.00

16

13116029
ref: 16

ROD-PUSH,CLUTCH SPRIN

€ 18.00

17

131161017
ref: 17

ROD-PUSH,CLUTCH,7X250

€ 26.00

18

131191003
ref: 18

CAM-RELEASE,CLUTCH

€ 11.50

19

318B0800
ref: 19

NUT,8MM

€ 0.50

20

550D1615
ref: 20

PIN-COTTER,1.6X15

€ 1.50

21

600A1200
ref: 21

BALL-STEEL,3/8

€ 0.50

22

920091009
ref: 22

SCREW,SLOTTED,8M/M

€ 2.50

23

920451001
ref: 23

BEARING,B.CLUTCH

€ 8.00

24

920491003
ref: 24

OIL SEAL,CLUTCH

€ 8.00

25

920811058
ref: 25

SPRING,CLUTCH RETURN

€ 4.50

26

480J3000
ref: 26

CIRCLIP-TYPE-C,30MM

€ 3.50

27

92022225
ref: 27

WASHER-THRUST

€ 3.50

28

92022302
ref: 28

WASHER,CLUTCH THRUST

€ 3.50

29

480J2400
ref: 29

CIRCLIP-TYPE-C,24MM

€ 3.50
