CARBURETOR ASSY ('80 B1)
KZ440B2 1981 USA / MPH

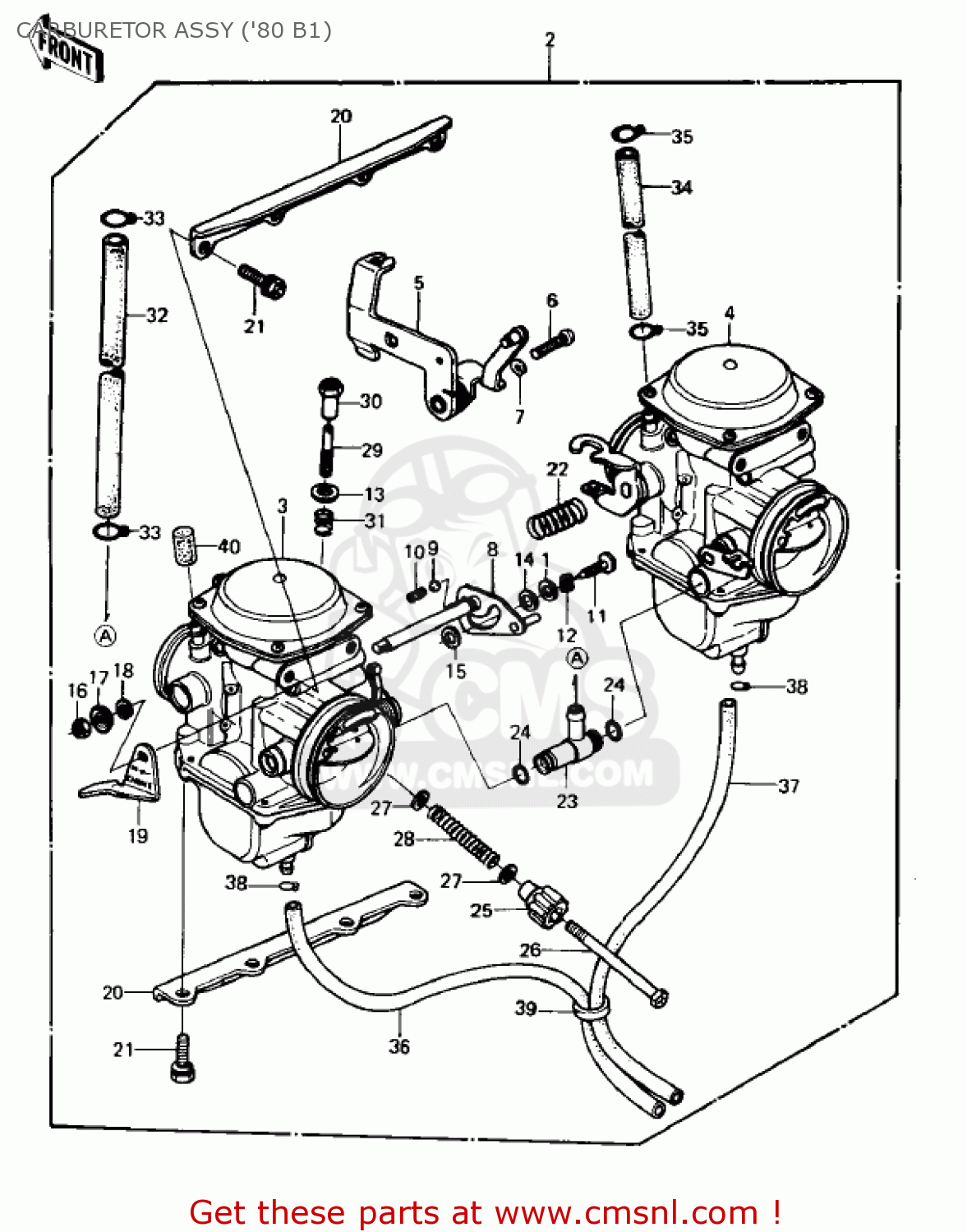

Carburetor assy ('80 b1) diagram KZ440B2 1981 USA / MPH
CARBURETOR ASSY ('80 B1) KZ440B2 1981 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
920221207
ref: 1
WASHER,6.5X11X1.2,STE
€ 2.50
2
160011241
ref: 2
CARBURETOR ASSEMBLY
€ 428.00
3
160011292
ref: 3
CARBURETOR,LH
€ 177.50
4
160011293
ref: 4
CARBURETOR,RH
€ 218.00
5
110341805
ref: 5
BRACKET,THROTTLE CABL
€ 15.50
6
220B0520
ref: 6
SCREW-PAN-CROS
€ 0.50
7
461F0500
ref: 7
WASHER-SPRING,5MM
€ 0.50
8
160411020
ref: 8
SHAFT,LINK
€ 36.00
9
921401004
ref: 9
BALL,STEEL,3/16"
€ 1.50
10
920811249
ref: 10
SPRING
€ 4.00
11
920091096
ref: 11
SCREW,LINK SHAFT
€ 6.00
12
920811262
ref: 12
SPRING,WAVED WASHER
€ 3.00
13
920221204
ref: 13
WASHER
€ 2.00
14
920221199
ref: 14
WASHER,6.1X11X0.8,POL
€ 3.00
15
920221200
ref: 15
WASHER,6.4X9.4X0.8,PO
€ 2.00
16
311B0500
ref: 16
NUT-HEX
€ 0.50
17
920221201
ref: 17
WASHER,LOCK,5M/M
€ 2.00
18
461F0500
ref: 18
WASHER-SPRING,5MM
€ 0.50
19
131681065
ref: 19
LEVER,CHOKE
€ 8.50
20
160651012
ref: 20
PLATE,STAY
€ 23.00
21
920091129
ref: 21
SCREW,6X16
€ 3.00
22
920811258
ref: 22
SPRING
€ 3.00
23
920051026
ref: 23
FITTING,FUEL TUBE
€ 28.00
24
920551004
ref: 24
O RING
€ 2.50
25
130911078
ref: 25
HOLDER,ADJUST
€ 9.00
26
920011328
ref: 26
BOLT,HEX HEAD,5X70
€ 6.50
27
920221203
ref: 27
WASHER
€ 2.50
28
920811251
ref: 28
SPRING
€ 3.00
29
160211027
ref: 29
SCREW,SLOTTED
€ 12.00
30
920151118
ref: 30
NUT,5MM
€ 4.50
31
920811252
ref: 31
SPRING
€ 2.50
32
920591029
ref: 32
TUBE,FUEL,7.3X12.5X20
€ 18.50
33
920371075
ref: 33
CLAMP,FUEL INLET TUBE
€ 2.50
34
920591001
ref: 34
HOSE, FUEL INLET
€ 13.50
35
920371682
ref: 35
CLAMP,TUBE
€ 4.00
36
92059111
ref: 36
HOSE,FUEL OVERFLOW
€ 17.50
37
92059111
ref: 37
HOSE,FUEL OVERFLOW
€ 17.50
38
920371142
ref: 38
CLAMP,TUBE
€ 2.50
39
920591141
ref: 39
TUBE,CLAMP
€ 7.00
40
110121129
ref: 40
CAP,RUBBER
€ 4.50
