FUEL TANK ('80 A1)
KZ440A4 LTD 1983 USA CANADA

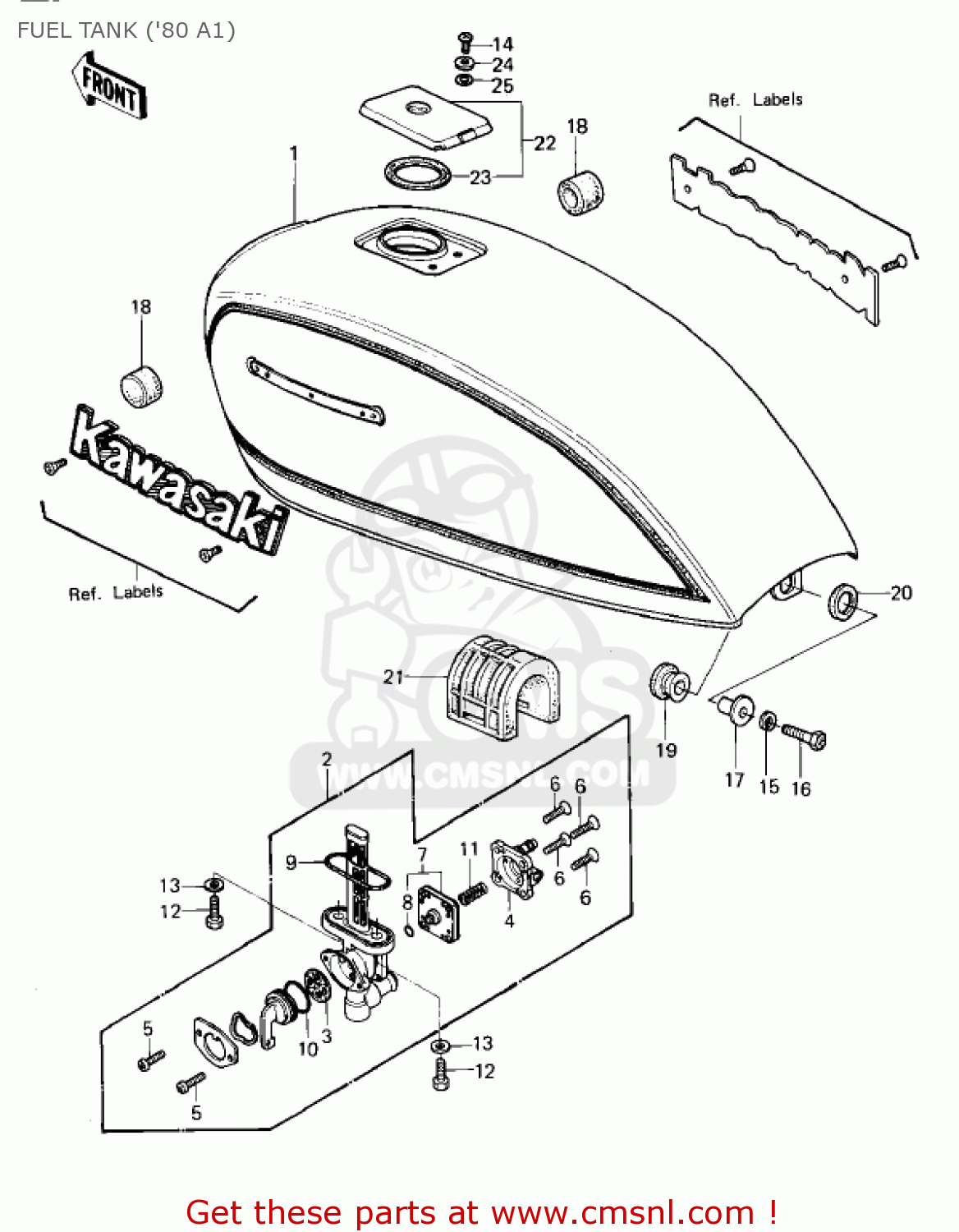

Fuel tank ('80 a1) diagram KZ440A4 LTD 1983 USA CANADA
FUEL TANK ('80 A1) KZ440A4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
5100110268G
ref: 1
TANK,FUEL,EBONY
€ 610.00
1
510015049A5
ref: 1
TANK,FUEL,C.P.RED
€ 454.00
2
510231030
ref: 2
TAP ASSY,FUEL
€ 128.00
3
110091188
ref: 3
GASKET,TAP VALVE (NAS)
€ 4.00
4
161461009
ref: 4
COVER-ASSY,TAP DIAPHR
€ 12.50
5
220B0308
ref: 5
SCREW-PAN-CROS
€ 0.50
6
221B0414
ref: 6
SCREW-CSR-CROS,4X14
€ 2.50
7
430281021
ref: 7
DIAPHRAGM,TAP
€ 19.50
8
670B1504
ref: 8
O RING,4MM
€ 2.50
9
51039003
ref: 9
'O' RING
€ 4.00
10
920551085
ref: 10
'O' RING,FUEL TAP LEV
€ 3.00
11
920811240
ref: 11
SPRING,DIAPHRAGM VLV
€ 2.50
12
920011091
ref: 12
BOLT,6X20,FUEL TAP
€ 2.50
13
92022183
ref: 13
WASHER,6.2X11X1.5
€ 2.50
14
220B0510
ref: 14
SCREW-PAN-CROS,5X10
€ 0.50
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
920011284
ref: 16
BOLT,HEX HEAD,6X25
€ 3.00
17
92027251
ref: 17
COLLAR,L=13.1
€ 1.00
18
92075101
ref: 18
DAMPER RUBBER-FL TANK
€ 4.00
19
92075174
ref: 19
DAMPER,MALE
€ 3.00
20
92075175
ref: 20
DAMPER,FEMALE
€ 2.50
21
92075284
ref: 21
DAMPER,FUEL TANK
€ 12.50
22
510481018
ref: 22
CAP-ASSY-TANK
€ 75.50
23
110091051
ref: 23
GASKET,FUEL TANK CAP (NAS)
€ 7.00
24
920221038
ref: 24
WASHER,PLAIN
€ 2.50
25
920551023
ref: 25
ORING
€ 2.50
