CLUTCH ('80 A1)
KZ440A4 LTD 1983 USA CANADA

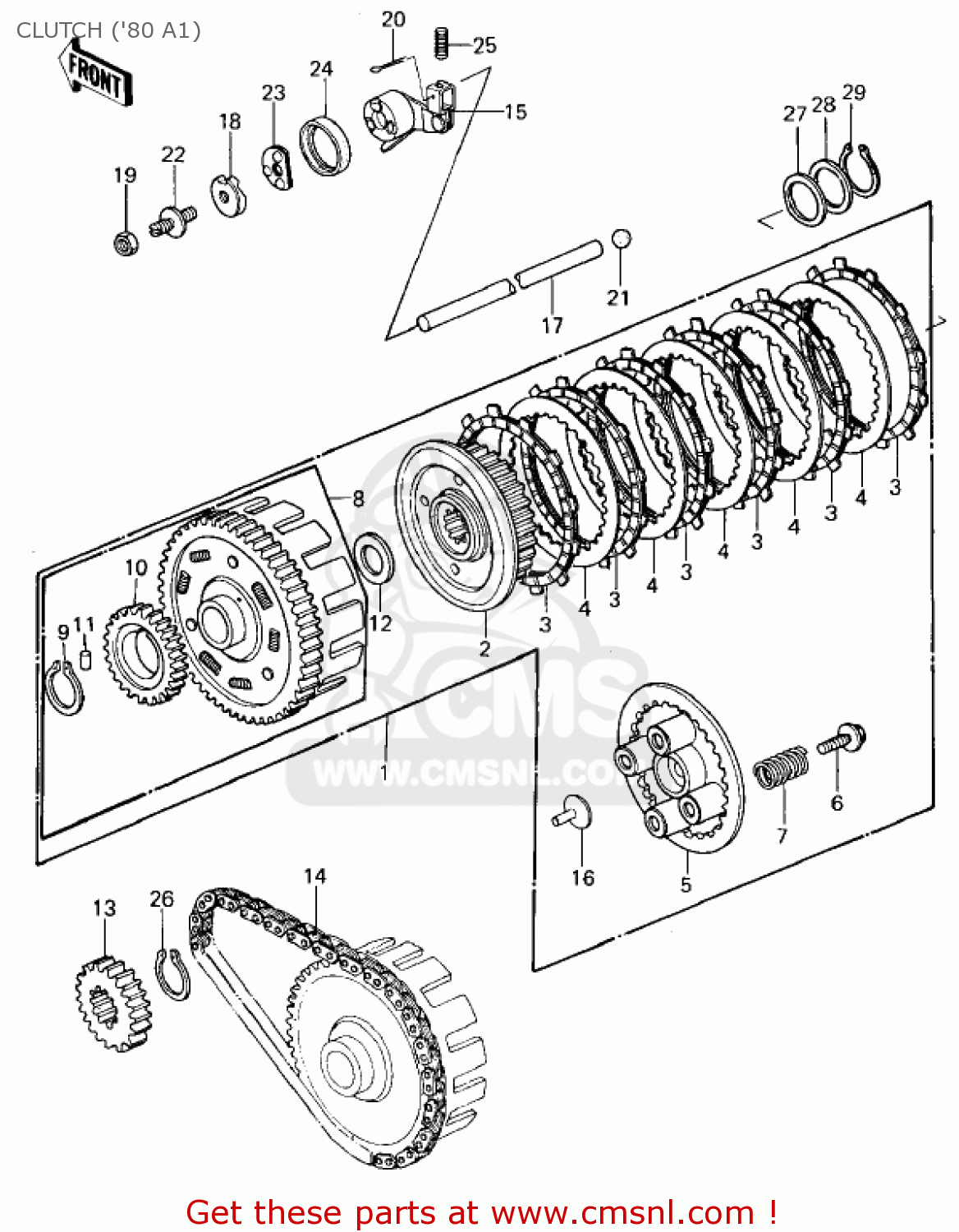

Clutch ('80 a1) diagram KZ440A4 LTD 1983 USA CANADA
CLUTCH ('80 A1) KZ440A4 LTD 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
130811019
ref: 1
CLUTCH ASSY
€ 364.50
2
13087040
ref: 2
HUB,CLUTCH
€ 56.00
3
130881001
ref: 3
PLATE-FRICTION (NAS)
€ 11.50
4
13089026
ref: 4
PLATE,CLUTCH STEEL (NAS)
€ 6.50
5
131871003
ref: 5
PLATE,CLUTCH OPERATNG
€ 35.50
6
920011066
ref: 6
BOLT, CLUTCH SPR FITT
€ 4.00
7
920811033
ref: 7
SPRING,CLUTCH
€ 6.50
8
130951008
ref: 8
HOUSING-COMP-CLUTCH
€ 237.50
9
480J3800
ref: 9
CIRCLIP-TYPE-C,38MM
€ 3.50
10
590511001
ref: 10
GEAR OIL PUMP,34T
€ 32.00
11
610A0606
ref: 11
PIN,DOWEL,6X6
€ 1.50
12
92022288
ref: 12
WASHER,CLUTCH THRUST
€ 9.00
13
13121030
ref: 13
SPROCKET,PRIMARY
€ 38.50
14
13122005A
ref: 14
CHAIN,63-139X74L(TUBA
€ 208.00
15
131021004
ref: 15
RELEASE-COMP-CLUTCH
€ 46.00
16
13116029
ref: 16
ROD-PUSH,CLUTCH SPRIN
€ 18.00
17
131161017
ref: 17
ROD-PUSH,CLUTCH,7X250
€ 26.00
18
131191003
ref: 18
CAM-RELEASE,CLUTCH
€ 11.50
19
318B0800
ref: 19
NUT,8MM
€ 0.50
20
550D1615
ref: 20
PIN-COTTER,1.6X15
€ 1.50
21
600A1200
ref: 21
BALL-STEEL,3/8
€ 0.50
22
920091009
ref: 22
SCREW,SLOTTED,8M/M
€ 2.50
23
920451001
ref: 23
BEARING,B.CLUTCH
€ 8.00
24
920491003
ref: 24
OIL SEAL,CLUTCH
€ 8.00
25
920811058
ref: 25
SPRING,CLUTCH RETURN
€ 4.50
26
480J3000
ref: 26
CIRCLIP-TYPE-C,30MM
€ 3.50
27
92022225
ref: 27
WASHER-THRUST
€ 3.50
28
92022302
ref: 28
WASHER,CLUTCH THRUST
€ 3.50
29
480J2400
ref: 29
CIRCLIP-TYPE-C,24MM
€ 3.50
