FRAME ('80 A1)

KZ440A4 LTD 1983 USA CANADA

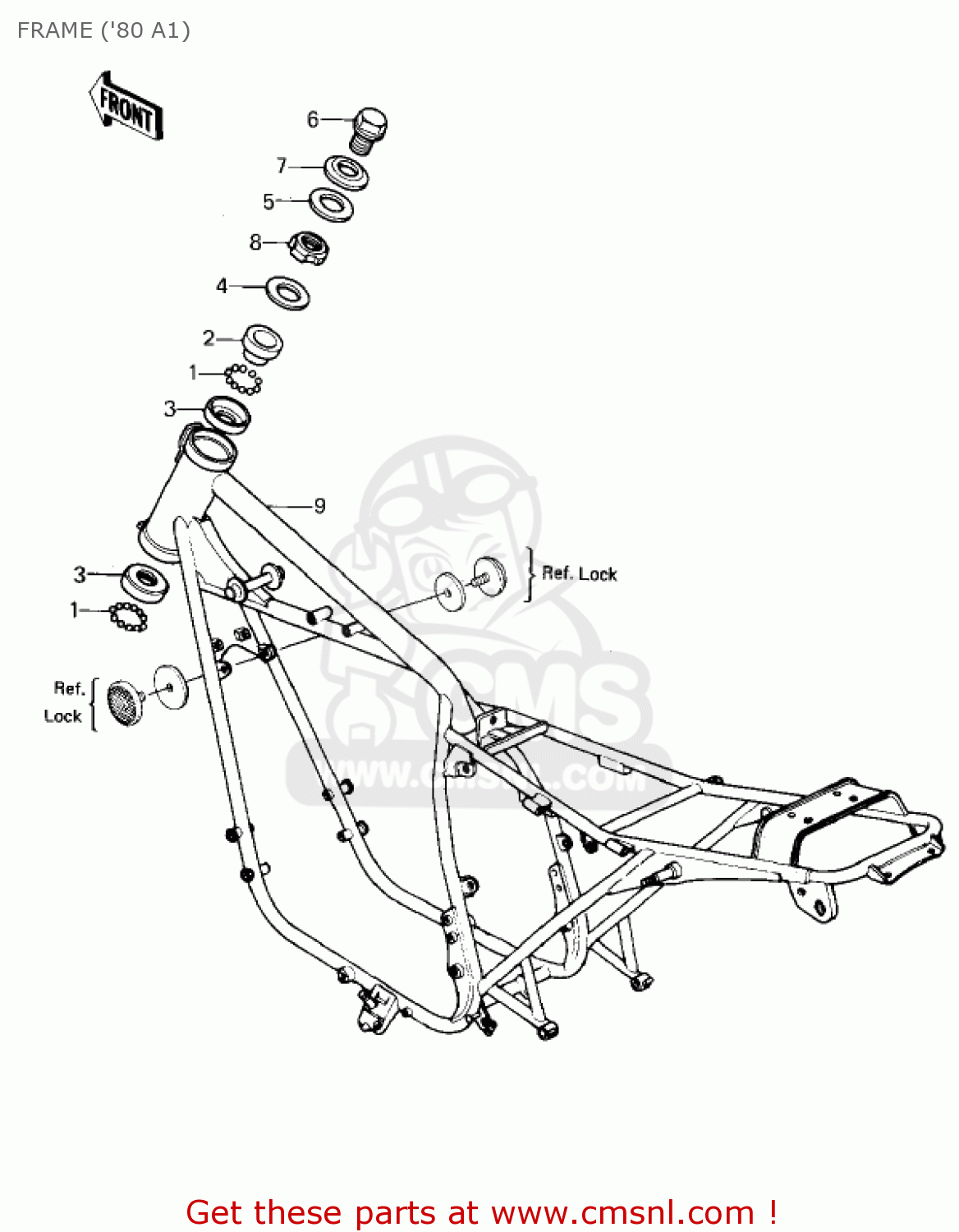

Frame ('80 a1) diagram KZ440A4 LTD 1983 USA CANADA

FRAME ('80 A1) KZ440A4 LTD 1983 USA CANADA

FRAME ('80 A1) KZ440A4 LTD 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

600A0800
ref: 1

BALL-STEEL,1/4

€ 0.50

2

92047006
ref: 2

CONE-STRNG STEM

€ 11.00

3

92048006
ref: 3

RACE-STRNG BEARIN-STE

€ 11.50

4

46098016
ref: 4

CAP,STEERING STEM

€ 4.00

5

46100003
ref: 5

WASHER,WAVE

€ 6.50

6

92007031
ref: 6

BOLT-STEERG STEM HEAD

€ 17.50

7

92022230
ref: 7

WASHER-STEERG STM HD

€ 7.50

8

92090007
ref: 8

NUT-STEERING STEM LCK

€ 8.00

9

320021248
ref: 9

FRAME

€ 830.50
