STARTER MOTOR/STARTER CLUTCH ('
KZ400D4 1977 CANADA

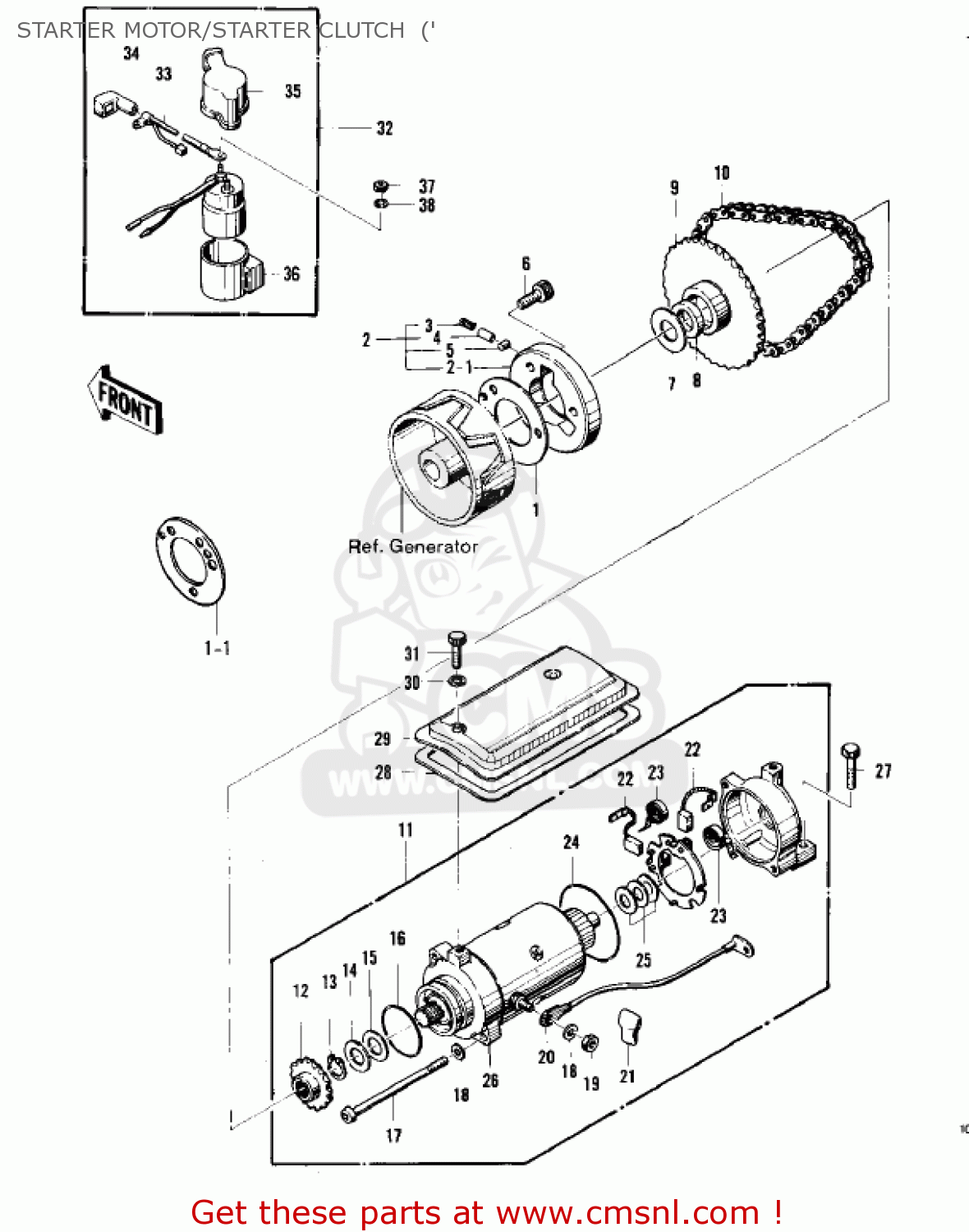

Starter motor/starter clutch (' diagram KZ400D4 1977 CANADA
STARTER MOTOR/STARTER CLUTCH (' KZ400D4 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92026082
ref: 1
KZ400-D3
WASHER-FREE WHEEL
€ 6.50
1-1
92026112
ref: 1-1
KZ400-D4
SPACER,45X79.5X0.5 (NAS)
€ 7.50
2
131931001
ref: 2
CLUTCH-ASSY-ONEWAY
€ 141.50
2-1
131931001
ref: 2-1
CLUTCH-ASSY-ONEWAY
€ 141.50
3
92081110
ref: 3
SPRING
€ 3.00
4
92043087
ref: 4
PIN
€ 8.00
5
92122004
ref: 5
ROLLER,15X13
€ 7.00
6
120P0816
ref: 6
BOLT-SOCKET
€ 2.50
7
92026100
ref: 7
WASHER,THRUST
€ 6.50
8
92050066
ref: 8
OIL SEAL
€ 7.50
9
21170001
ref: 9
GEAR,STARTER CLUTCH
€ 46.50
10
920571009
ref: 10
CHAIN,DYNAMO
€ 12.50
10
920571009
ref: 10
CHAIN,DYNAMO
€ 12.50
11
211631011
ref: 11
MOTOR ASSY,STARTER
€ 595.00
11
211631011
ref: 11
MOTOR ASSY,STARTER
€ 595.00
12
21053002
ref: 12
SPROCKET,STARTNG MOT
€ 24.50
13
480J1400
ref: 13
CIRCLIP-TYPE-C,14MM
€ 3.00
14
21025008
ref: 14
0.2T
WASHER,PLAIN,14MM
€ 3.50
15
21025009
ref: 15
0.5T
WASHER,PLAIN,14MM
€ 3.50
16
21027005
ref: 16
'O' RING,42.8MM
€ 5.50
17
220B06110
ref: 17
SCREW-PAN HEAD,6X110
€ 2.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
312B0600
ref: 19
NUT,6MM
€ 0.50
20
26010035
ref: 20
WIRE,STARTER LEAD
€ 33.50
21
21017020
ref: 21
CAP,STARTING MOTOR
€ 6.00
22
21039004
ref: 22
BRUSH,CARBON
€ 23.00
23
21040004
ref: 23
SPRING-BRUSH
€ 5.50
24
21027006
ref: 24
RING-O,62MM
€ 8.00
25
21025007
ref: 25
WASHER,PLAIN,9MM
€ 2.50
26
99990536
ref: 26
CITIZEN WALL CLOCK
€ 27.00
27
112G0625
ref: 27
BOLT-UPSET,6X25
€ 4.00
28
21166002
ref: 28
GASKET,START MOTOR (NAS)
€ 13.50
29
21165002
ref: 29
COVER,STARTER MOTOR
€ 12.00
30
410D0600
ref: 30
WASHER-PLAIN-SMALL,6M
€ 0.50
31
132E0612
ref: 31
BOLT-FLANGED-SMALL
€ 3.50
32
21164006
ref: 32
SWITCH ASSY,MAGNETIC
€ 74.50
33
260111027
ref: 33
WIRE,LEAD,MAG SWITCH
€ 25.00
34
21017021
ref: 34
CAP,MAG SWITCH TEMNL
€ 8.50
35
21141004
ref: 35
COVER,MAG SWITCH
€ 8.50
36
21064002
ref: 36
DAMPER,MAGNETIC SWITC
€ 13.50
37
311B0600
ref: 37
NUT,6MM
€ 0.50
38
461F0600
ref: 38
WASHER-SPRING,6MM
€ 0.50
