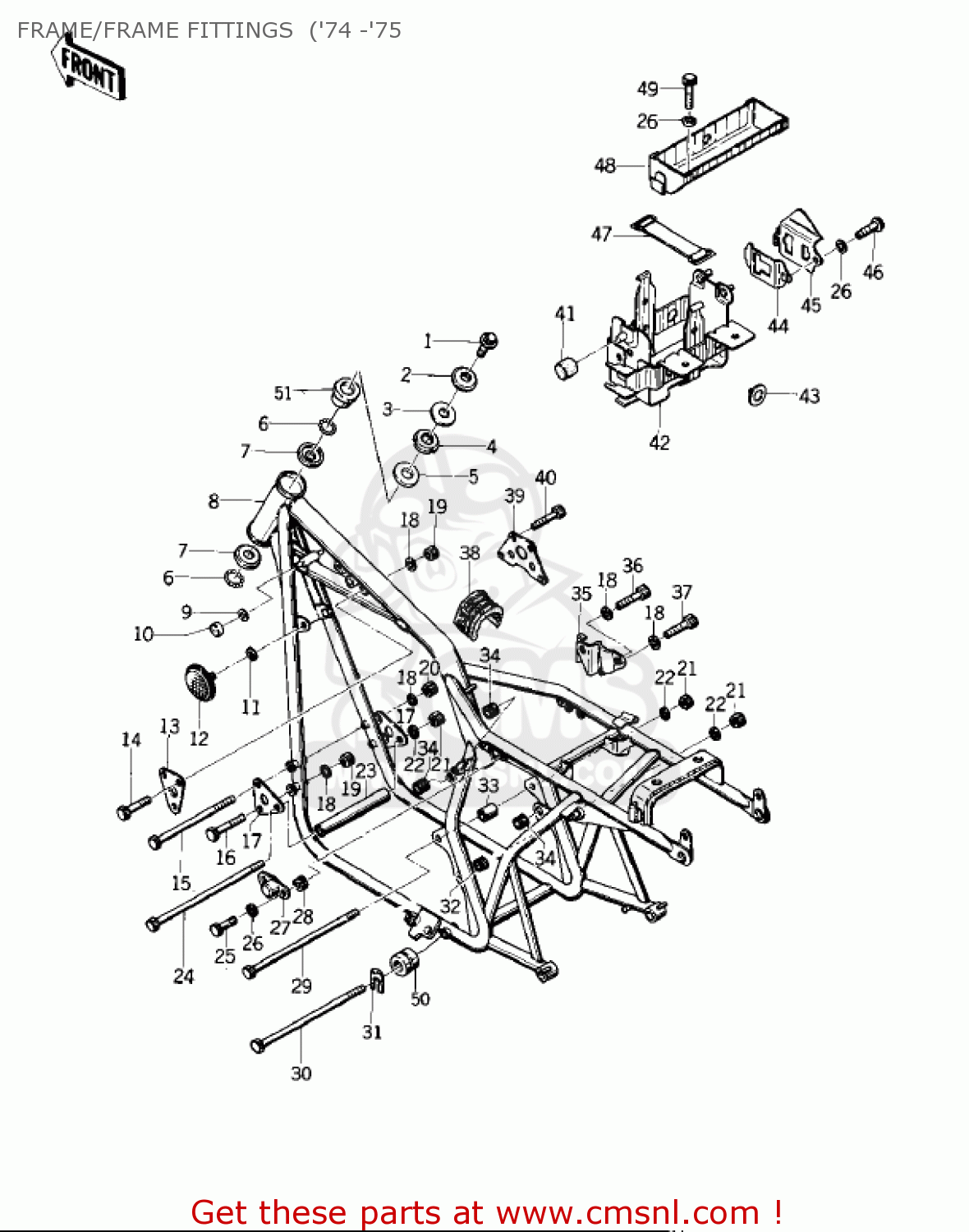

FRAME/FRAME FITTINGS ('74 -'75

ref

part #

description

quantity

1

92007031
ref: 1

BOLT-STEERG STEM HEAD

€ 17.50

2

92022230
ref: 2

WASHER-STEERG STM HD

€ 7.50

3

46100003
ref: 3

WASHER,WAVE

€ 6.50

4

92090007
ref: 4

NUT-STEERING STEM LCK

€ 8.00

5

46098016
ref: 5

CAP,STEERING STEM

€ 4.00

6

600A0800
ref: 6

BALL-STEEL,1/4

€ 0.50

7

92048006
ref: 7

RACE-STRNG BEARIN-STE

€ 11.50

8

32002093
ref: 8

FRAME

€ 540.00

9

92022044
ref: 9

WASHER,10.5X26X2.3

€ 2.50

10

92075125
ref: 10

DAMPER RUBBER-FL TANK

€ 4.00

11

92094011
ref: 11

DAMPER,REFLECTOR

€ 3.00

12

28012009
ref: 12

REFLECTOR-REFLEX,RR

€ 17.50

13

32030038
ref: 13

PLATE,ENG MOUNT UPPE

€ 4.00

14

920011398
ref: 14

BOLT,FLANGED 8X55

€ 2.50

15

92003171
ref: 15

BOLT,HEX HEAD,8X256.5

€ 10.50

16

110G0859
ref: 16

BOLT,HEX HEAD,8X59

€ 3.50

16

920011581
ref: 16

BOLT,FLANGED,8X60

€ 3.50

17

32030044
ref: 17

PLATE,ENG MOUNT,FRNT

€ 4.50

18

461F0800
ref: 18

WASHER-SPRING,8MM

€ 0.50

19

311B0800
ref: 19

NUT,8MM

€ 0.50

20

920151124
ref: 20

NUT,LOCK,8MM

€ 3.50

21

92019021
ref: 21

NUT,LOCK,10M/M

€ 2.00

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

92027233
ref: 23

COLLAR,ENG PLAT,FRNT

€ 6.00

24

920011609
ref: 24

BOLT,FLANGED,10X255

€ 14.00

25

112B0614
ref: 25

BOLT-UPSET 6X14

€ 2.50

26

461F0600
ref: 26

WASHER-SPRING,6MM

€ 0.50

27

32122031
ref: 27

BRACKET,BATTERY CASE

€ 3.00

28

92075242
ref: 28

DAMPER RUBBER

€ 1.00

29

920021197
ref: 29

BOLT,10X220

€ 14.50

30

92003162
ref: 30

BOLT,HEX HEAD,10X292

€ 12.00

31

92025053
ref: 31

SHIM,T=0.5

€ 3.00

31

92025054
ref: 31

SHIM-ENG FIT FR,0.8MM

€ 2.50

31

92025055
ref: 31

SHIM-ENG FIT FR,1.0MM

€ 1.50

31

92025056
ref: 31

SHIM-ENG FIT FR,1.6MM

€ 1.00

31

92025057
ref: 31

SHIM,T=2.0

€ 2.50

31

92025058
ref: 31

SHIM,T=2.3

€ 2.50

32

92027160
ref: 32

COLLAR,L=30.5

€ 7.00

33

92027228
ref: 33

COLLAR,10.5X24X26.5

€ 11.50

34

92071056
ref: 34

GROMMET

€ 2.50

35

32030034
ref: 35

PLATE,ENG MOUNT,REAR

€ 7.00

36

115G0825
ref: 36

BOLT-HEX,HEAD,8X25

€ 3.00

37

115G0820
ref: 37

BOLT,8X20

€ 2.00

38

92075215
ref: 38

DAMPER,FUEL TANK

€ 9.50

39

32058045
ref: 39

BRACKET,IGNITON COIL

€ 7.00

39

32058049
ref: 39

BRACKET,IGNITON COIL

€ 7.50

40

92003208
ref: 40

BOLT,SPROCKET FITTING

€ 2.50

41

92075243
ref: 41

DAMPER RUBBER

€ 4.50

42

32097035
ref: 42

CASE,BATTERY

€ 24.50

43

92075078
ref: 43

DAMPER,RUBBER

€ 2.50

44

32129004
ref: 44

BRACKET,ELECT BASE

€ 3.00

45

32129003
ref: 45

BRACKET,ELECT BASE

€ 3.00

46

220B0612
ref: 46

SCREW-PAN HEAD,6X12

€ 1.00

47

92072045
ref: 47

BAND-OIL TANK

€ 10.00

48

32098023
ref: 48

CASE,TOOL

€ 10.50

49

112G0610
ref: 49

BOLT,6X10

€ 0.50

50

92027250
ref: 50

COLLAR

€ 9.00

51

92047006
ref: 51

CONE-STRNG STEM

€ 11.00

all assemblies
