REAR HUB/BRAKE/CHAIN ('76 -'77 K
KZ400D4 1977 CANADA

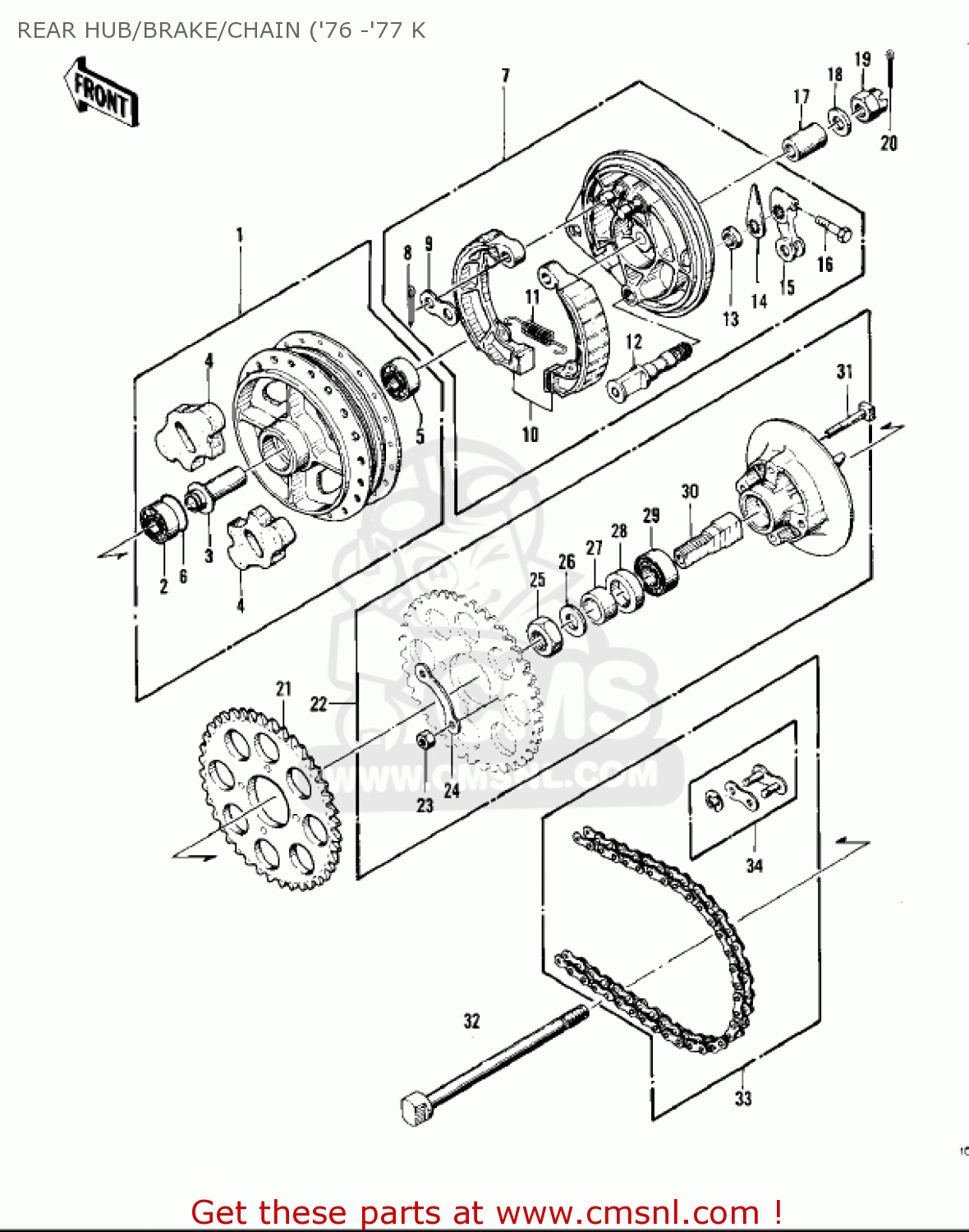

Rear hub/brake/chain ('76 -'77 k diagram KZ400D4 1977 CANADA
REAR HUB/BRAKE/CHAIN ('76 -'77 K KZ400D4 1977 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
4200504480
ref: 1
BUFF FINISH
DRUM ASY,RR BRK,BUFF
€ 447.00
2
601B6303
ref: 2
BEARING-BALL,#6303C3
€ 24.00
3
42010027
ref: 3
SPACER,RR HUB BEARNG
€ 14.50
4
42014008
ref: 4
DAMPER,RR HUB SHOCK
€ 24.50
5
601B6303Z
ref: 5
BEARING-BALL,#6303ZC3
€ 17.50
6
671B2560
ref: 6
O RING,60MM
€ 1.50
7
4200605580
ref: 7
BUFF FINISH
PANEL ASY,RR BR,BUFF
€ 223.00
8
550D2025
ref: 8
PIN-COTTER,2.0X25
€ 2.00
9
41045007
ref: 9
WASHER,BRAKE SHOE
€ 4.00
10
42019003
ref: 10
SHOE-REAR BRAKE (MCA)
€ 24.50
11
41049003
ref: 11
SPRING-BRAKE SHOE
€ 2.50
12
42026024
ref: 12
CAM SHAFT,REAR BRAKE
€ 15.50
13
41051001
ref: 13
DUST SHIELD-BRAKE CAM
€ 2.50
14
41085016
ref: 14
INDICATOR,RR BK SHOE
€ 3.50
15
42029036
ref: 15
LEVER,REAR BRAKE CAM
€ 38.50
16
115G0825
ref: 16
BOLT-HEX,HEAD,8X25
€ 3.00
17
42032053
ref: 17
COLLAR,REAR AXLE
€ 23.50
18
42046009
ref: 18
WASHER-SLEEVE
€ 5.00
19
92015055
ref: 19
NUT,16MM
€ 8.00
20
550D4035
ref: 20
PIN-COTTER,4.0X35
€ 1.00
21
42041145
ref: 21
REAR SPROCKET,45T
€ 82.00
22
42008024
ref: 22
COUPLING ASSY,RR HUB
€ 114.50
23
314B1000
ref: 23
NUT,10MM
€ 0.50
24
92088005
ref: 24
WASHER,SPROCKET LOCK
€ 4.00
25
42045006
ref: 25
NUT-SLEEVE
€ 7.50
26
92022293
ref: 26
WASHER,PLAIN,24MM
€ 3.00
27
42037026
ref: 27
COLLAR,RR HUB COUPLN
€ 10.00
28
92052006
ref: 28
OIL SEAL WTC35527
€ 6.50
29
601B6205
ref: 29
BEARING-BALL,#6205C3
€ 14.00
30
42036021
ref: 30
SLEEVE,RR HUB COUPLN
€ 30.00
31
92003156
ref: 31
BOLT,RR SPROCKET FIT
€ 6.50
32
42031050
ref: 32
AXLE,REAR
€ 33.50
33
92057092
ref: 33
EK530SH
CHAIN ASY,DRIVE,100L
€ 45.00
34
92058008
ref: 34
JOINT-CHAIN
€ 4.00
