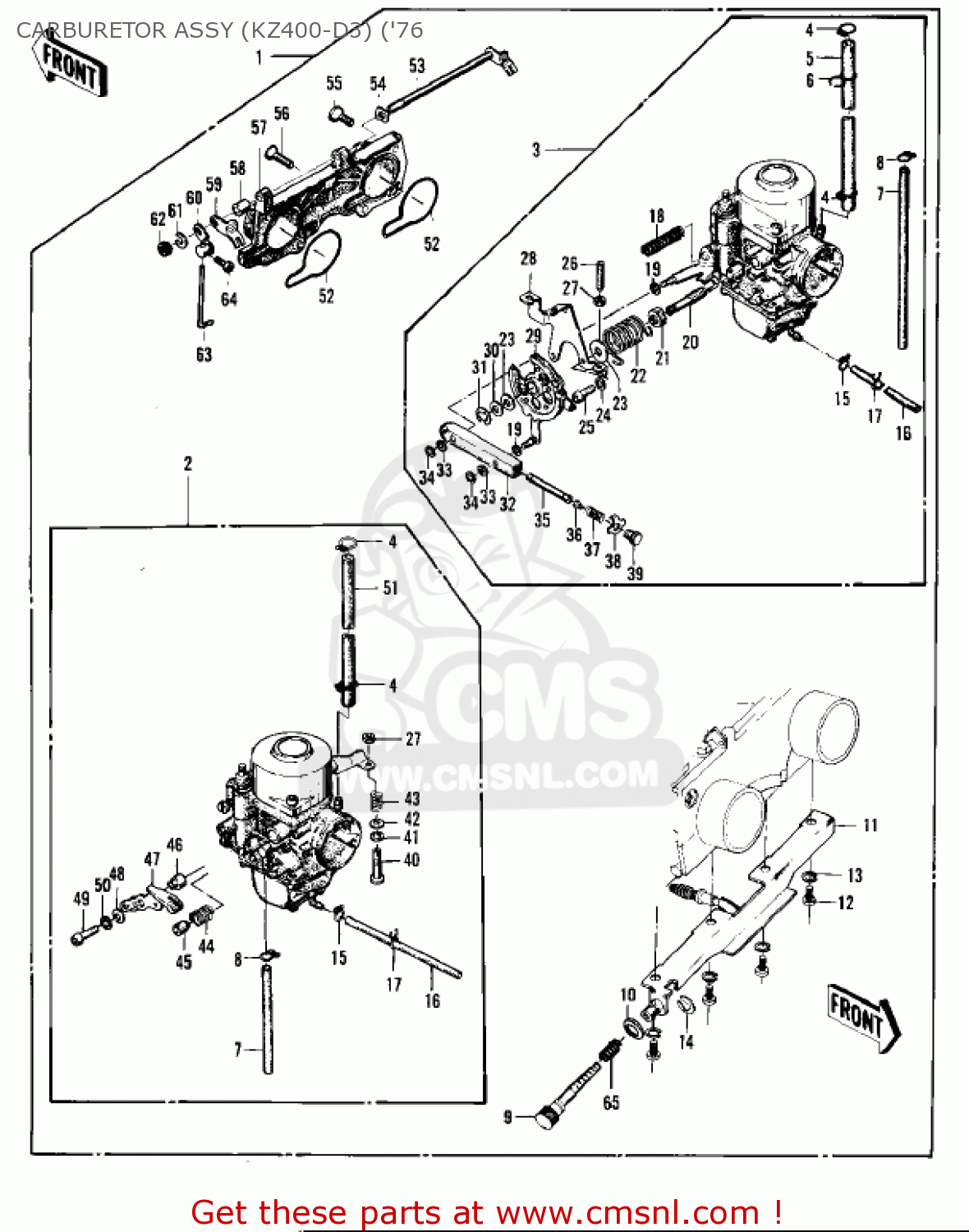

CARBURETOR ASSY (KZ400-D3) ('76

ref

part #

description

quantity

1

16001275
ref: 1

CARBURETOR ASSY

€ 654.50

2

16001282
ref: 2

CARBURETOR ASSY,RH

€ 291.00

3

16001283
ref: 3

CARBURETOR, LH

€ 291.00

4

920371040
ref: 4

CLAMP,FUEL HOSE

€ 2.00

5

92059112
ref: 5
5.30 X 240 MM

HOSE,FUEL

€ 8.50

6

16044005
ref: 6

CLAMP,FUEL HOSE

€ 1.50

7

92059110
ref: 7

HOSE

€ 11.50

8

16044004
ref: 8

CLAMP,HOSE

€ 1.00

9

16021024
ref: 9

SCREW,THROTTLE STOP

€ 13.00

10

16039029
ref: 10

WASHER,PLAIN,7MM

€ 1.50

11

16065044
ref: 11

STAY PLATE,THR.STP SC

€ 9.50

12

220B0416
ref: 12

SCREW-PAN-CROS

€ 2.00

13

461F0400
ref: 13

WASHER-SPRING,4MM

€ 0.50

14

482J6000
ref: 14

CIRCLIP-TYPE-E,6MM

€ 0.50

15

920371142
ref: 15

CLAMP,TUBE

€ 2.50

16

92059111
ref: 16
3.50 X 360 MM

HOSE,FUEL OVERFLOW

€ 17.50

17

16044002
ref: 17

CLAMP,OVERFLOW HOSE

€ 1.00

18

16040013
ref: 18

SPRING,THR CABLE PLY

€ 2.00

19

16034009
ref: 19

WASHER,WAVE

€ 1.00

20

16041008
ref: 20

SCREW,BALANCE ADJUST

€ 7.00

21

16003010
ref: 21

NUT,5MM

€ 1.50

22

16040011
ref: 22

SPRING,ADJUST

€ 6.50

23

16039023
ref: 23

WASHER,PLAIN

€ 0.50

24

461F0500
ref: 24

WASHER-SPRING,5MM

€ 0.50

25

220B0510
ref: 25

SCREW-PAN-CROS,5X10

€ 0.50

26

16046006
ref: 26

SCREW,SLOTTED

€ 1.50

27

16003011
ref: 27

NUT,5MM

€ 1.50

28

16070002
ref: 28

HOLDER,THR CABL PULY

€ 10.50

29

16074003
ref: 29

PULLEY,THROTTLE CABL

€ 23.50

30

16039024
ref: 30

WASHER,PLAIN,8MM

€ 0.50

31

482J6000
ref: 31

CIRCLIP-TYPE-E,6MM

€ 0.50

32

16071002
ref: 32

LINK,ADJUSTER

€ 15.00

33

16039030
ref: 33

WASHER,PLAIN,3MM

€ 1.50

34

16008013
ref: 34

CIRCLIP

€ 1.00

35

16002015
ref: 35

ROD,CABLE ADJUSTING

€ 3.00

36

16042007
ref: 36

PLUG,CABLE ADJST ROD

€ 1.00

37

16040012
ref: 37

SPRING,CABLE ADJUST

€ 1.50

38

16054006
ref: 38

WASHER,LOCK,7MM

€ 1.50

39

16067007
ref: 39

BOLT,HEX HEAD,7MM

€ 3.00

40

16021030
ref: 40
757 B/C OR V5A

THROTTLE STOP SCREW

€ 18.50

40

16021031
ref: 40
757D OR V5B

THROTTLE STOP SCREW

€ 18.50

41

16039025
ref: 41
757 B/C OR V5A

WASHER,PLAIN,5MM

€ 2.00

41

16039045
ref: 41
757D OR V5B

WASHER,PLAIN

€ 8.00

42

16039026
ref: 42
757 B/C OR V5A

WASHER,PLAIN,5MM

€ 0.50

42

16039027
ref: 42
757D OR V5B

WASHER,PLAIN

€ 1.00

43

16022012
ref: 43
757 B/C OR V5A

SPRING,THR STOP SCRE

€ 1.00

43

16022014
ref: 43
757D OR V5B

THROTTLE STOP SCREW SPRING

€ 4.50

44

16040014
ref: 44

SPRING,CHOKE LEVER

€ 4.00

45

16147002
ref: 45

CONTACT,CHOKE LEVER

€ 7.00

46

16073010
ref: 46

COLLAR,CHOKE LEVER

€ 3.50

47

16063006
ref: 47

LEVER,CHOKE

€ 7.00

48

16039027
ref: 48

WASHER,PLAIN

€ 1.00

49

220B0520
ref: 49

SCREW-PAN-CROS

€ 0.50

50

461F0500
ref: 50

WASHER-SPRING,5MM

€ 0.50

51

92059113
ref: 51
5.30 X 150 MM

HOSE,FUEL

€ 7.50

52

16038015
ref: 52
- E/NO. 083196

GASKET,CARBURETOR MOU

€ 9.00

52

16038023
ref: 52
E/NO. 083197 -

CARBURETOR MOUNT RING

€ 4.50

53

16041009
ref: 53
757B

SHAFT,THROTTLE VALVE

€ 9.50

53

16041019
ref: 53
757C & LATER

THROTTLE VALVE SHAFT

€ 36.50

54

16034010
ref: 54

WASHER,WAVE

€ 1.50

55

220B0616
ref: 55

SCREW-PAN HEAD,6X16

€ 2.50

56

220B0620
ref: 56

SCREW-PAN HEAD,6X20

€ 2.50

57

16070003
ref: 57

PLATE,CARB MOUNTING

€ 43.00

58

16073011
ref: 58

COLLAR,CHOKE LEVSFT

€ 1.00

59

16063007
ref: 59
757B

LEVER,THROTTLE VALVE

€ 3.00

59

16063011
ref: 59
757C & LATER

THROTTLE VALVE LEVER

€ 18.50

60

16063008
ref: 60

LEVER,THROTTLE VALVE

€ 4.00

61

16054007
ref: 61

WASHER,LOCK,6MM

€ 1.50

62

16003012
ref: 62

NUT,6MM

€ 1.00

63

16024013
ref: 63

ROD

€ 1.50

64

220B0305A
ref: 64

SCREW-PAN HEAD,3X5

€ 1.00

65

16022011
ref: 65

SPRING,THR STOP SCRE

€ 4.50
