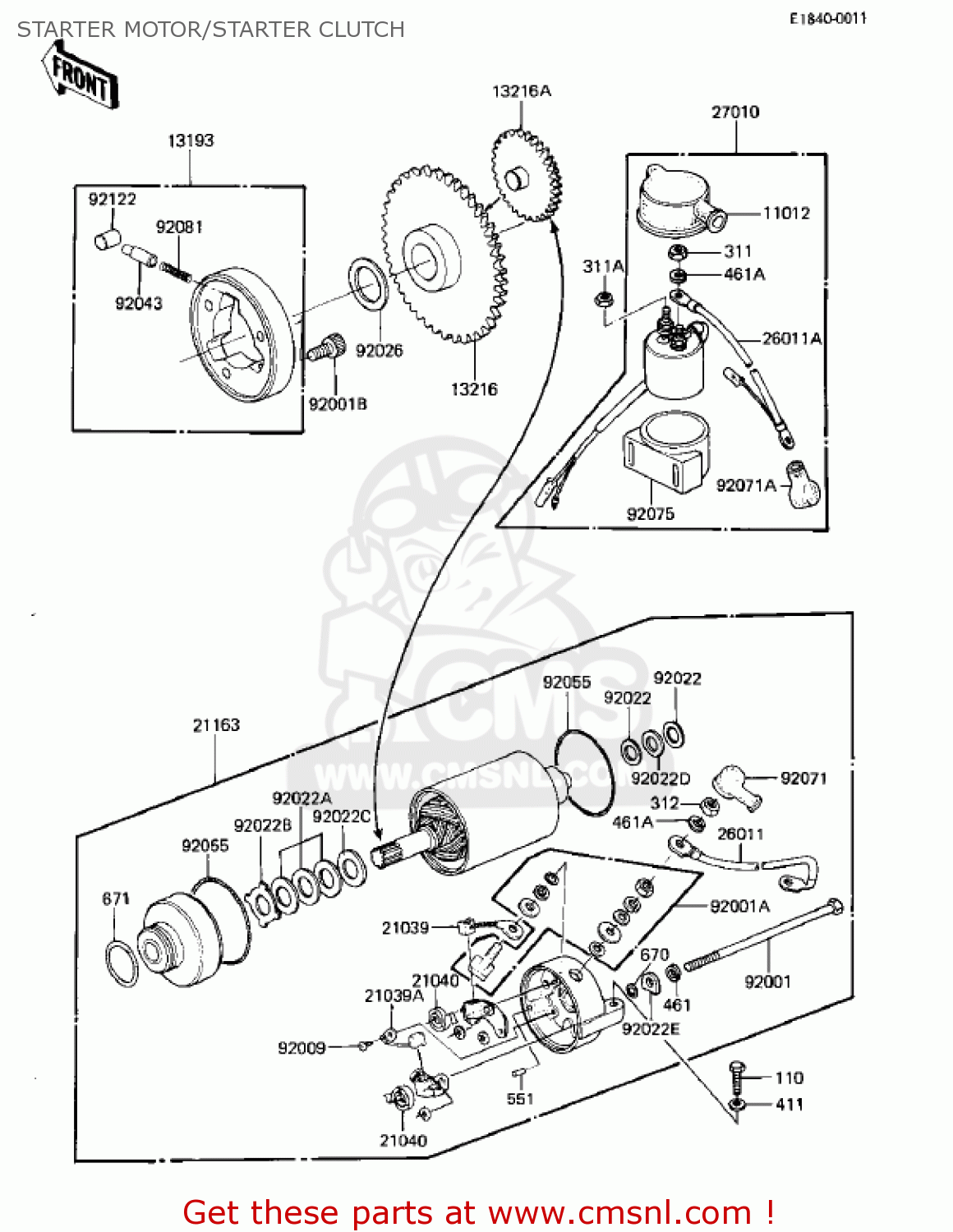

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

11012

21141004
ref: 11012

COVER,MAG SWITCH

€ 8.50

13193

131931002
ref: 13193

CLUTCH-ASSY-ONEWAY

€ 96.00

13216

160851032
ref: 13216

GEAR-COMP,ONEWAY

€ 93.00

13216A

132161009
ref: 13216A

GEAR-ASSY,STARTER,IDL

€ 79.00

21039

210391001
ref: 21039

BRUSH,CARBON(+)

€ 21.50

21039A

210391002
ref: 21039A

BRUSH,CARBON(-)

€ 15.50

21040

210401001
ref: 21040

SPRING-BRUSH

€ 4.50

21163

211631199
ref: 21163

STARTER-ELECTRIC

€ 369.50

26011

260111049
ref: 26011

WIRE-LEAD,STARTER MOT

€ 22.50

26011A

260111128
ref: 26011A

WIRE-LEAD,MAGNETIC SW

€ 36.00

27010

270101050
ref: 27010

SWITCH,MAGNETIC

€ 88.50

92001

920011156
ref: 92001

BOLT,PAN HEAD,5X108.5

€ 3.50

92001A

920011204
ref: 92001A

BOLT ASSY,STARTER MOT

€ 13.00

92001B

120P0816
ref: 92001B

BOLT-SOCKET

€ 2.50

92009

920091058
ref: 92009

SCREW,TAPPING,3.5X8

€ 2.00

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221129
ref: 92022A

WASHER,THRUST,B

€ 1.50

92022B

920221130
ref: 92022B

WASHER,THRUST SUPPORT

€ 4.00

92022C

920221131
ref: 92022C

WASHER,BAKELITE

€ 2.00

92022D

920221132
ref: 92022D

WASHER,9.1X18X0.8

€ 4.00

92022E

920221133
ref: 92022E

WASHER,LOCK,T=3.2

€ 2.00

92026

92026092
ref: 92026

SPACER,22X35.5X1.0

€ 8.50

92043

92043132
ref: 92043

PIN

€ 4.00

92055

920551042
ref: 92055

RING-O,56MM

€ 3.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92071A

21017023
ref: 92071A

GROMMET,MAGNETIC SWIT

€ 12.00

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92081

92081139
ref: 92081

SPRING,CLUTCH

€ 5.50

92122

92122006
ref: 92122

ROLLER

€ 4.00

110

112G0620
ref: 110

BOLT 6X20

€ 1.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

311A

311G0600
ref: 311A

NUT,6M/M

€ 0.50

312

312B0600
ref: 312

NUT,6MM

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

551

551A0306
ref: 551

PIN,DOWEL,3X6

€ 1.00

670

670B1505
ref: 670

O RING,5MM

€ 1.00

671

671B2525
ref: 671

O RING,25MM

€ 3.00

all assemblies
