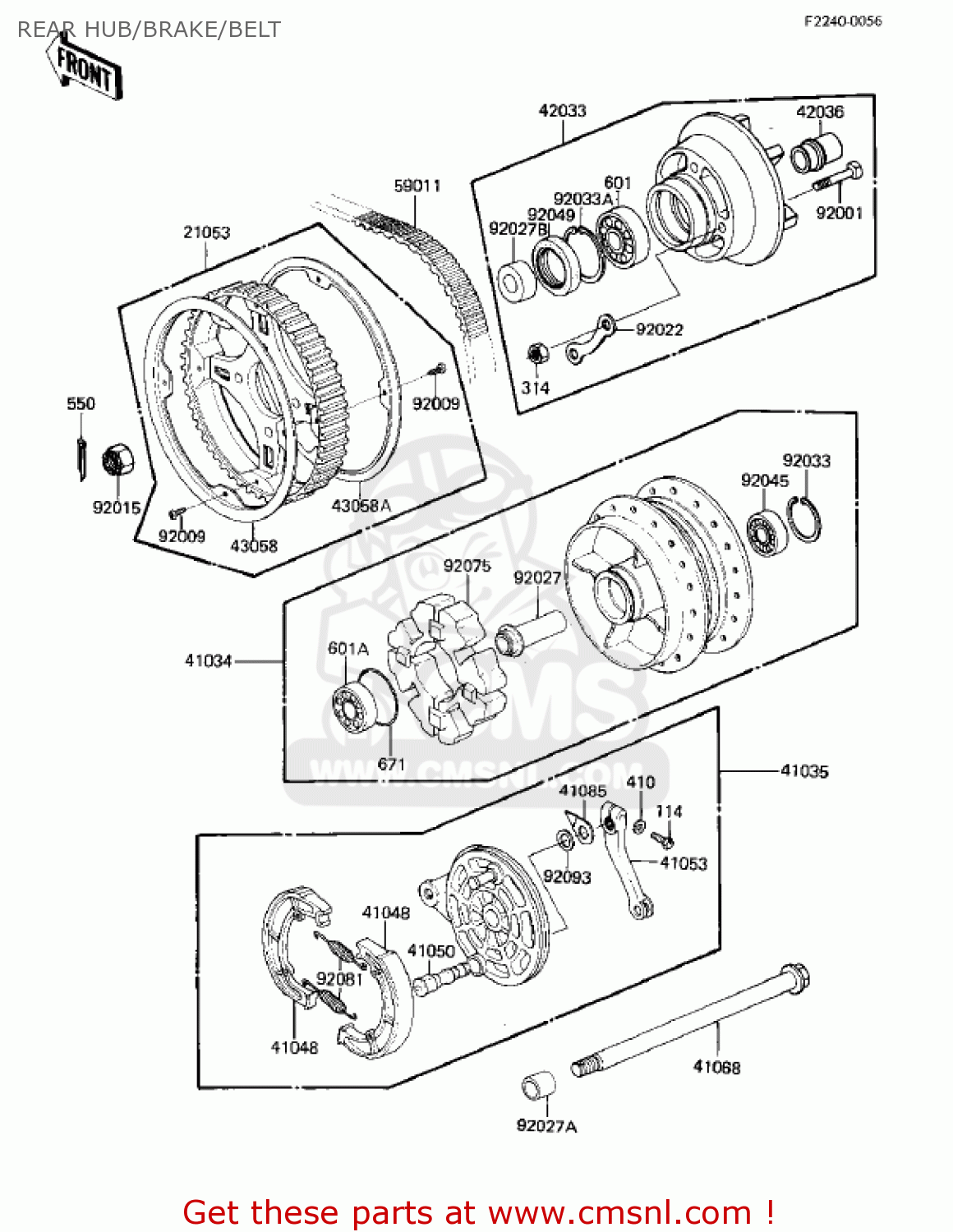

REAR HUB/BRAKE/BELT

ref

part #

description

quantity

21053

210531010
ref: 21053

SPROCKET-ASSY,RR,50T

€ 245.50

41034

410341005
ref: 41034

DRUM ASSY,REAR BRAKE

€ 209.50

41035

410351089
ref: 41035

PANEL ASSY,REAR BRAKE

€ 239.50

41048

410481069
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41050

410501001
ref: 41050

CAM-BRAKE

€ 24.00

41053

410531001
ref: 41053

LEVER,BRAKE CAM

€ 27.50

41068

410681067
ref: 41068

AXLE,RR,L=267

€ 35.00

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331044
ref: 42033

COUPLING-ASSY,REAR HU

€ 100.50

42036

420361002
ref: 42036

SLEEVE,COUPLING

€ 27.50

43058

430581016
ref: 43058

RING,REAR HUB SPROCKE

€ 36.50

43058A

430581016
ref: 43058A

RING,REAR HUB SPROCKE

€ 36.50

59011

590111002
ref: 59011

BELT,DRIVE,121T

€ 258.00

92001

92003156
ref: 92001

BOLT,RR SPROCKET FIT

€ 6.50

92009

920091131
ref: 92009

SCREW,5X10

€ 2.50

92015

92015055
ref: 92015

NUT,16MM

€ 8.00

92022

92088005
ref: 92022

WASHER,SPROCKET LOCK

€ 4.00

92027

920271013
ref: 92027

COLLAR,REAR HUB BRG

€ 15.50

92027A

920271256
ref: 92027A

COLLAR,RR AXLE,R.H.

€ 9.00

92027B

920271368
ref: 92027B

COLLAR,REAR AXLE,LH,L

€ 20.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92045

601B6303U
ref: 92045

BEARING-BALL

€ 26.00

92049

92052006
ref: 92049

OIL SEAL WTC35527

€ 6.50

92075

920751008
ref: 92075

DAMPER,REAR HUB SHOCK

€ 53.50

92081

42020004
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00

601A

601B6303
ref: 601A

BEARING-BALL,#6303C3

€ 24.00

671

671B2560
ref: 671

O RING,60MM

€ 1.50

all assemblies
