CARBURETOR PARTS

KZ305B1 CSR 1982 USA / BELT DRIVE

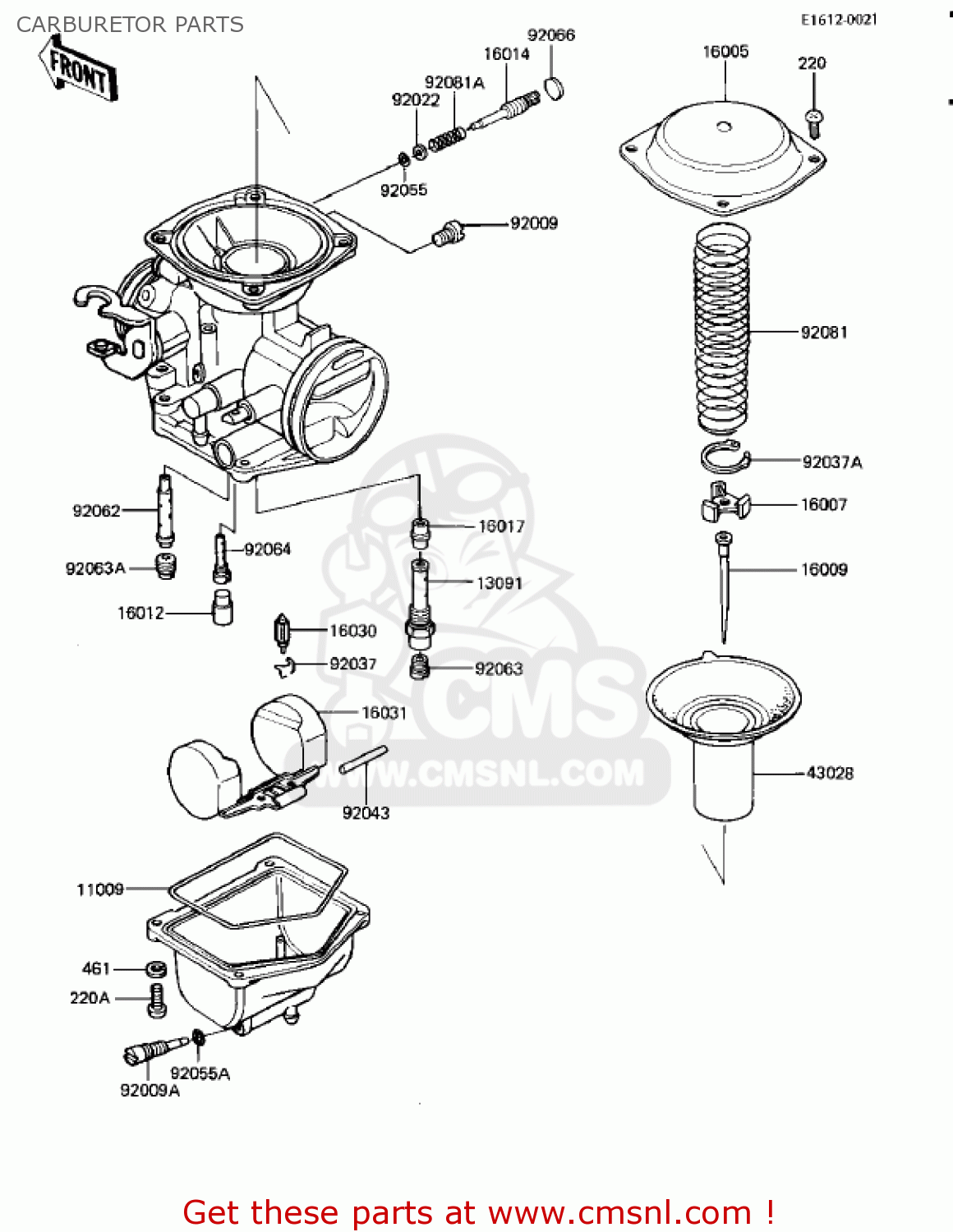

Carburetor parts diagram KZ305B1 CSR 1982 USA / BELT DRIVE

CARBURETOR PARTS KZ305B1 CSR 1982 USA / BELT DRIVE
CARBURETOR PARTS KZ305B1 CSR 1982 USA / BELT DRIVE
CARBURETOR PARTS KZ305B1 CSR 1982 USA / BELT DRIVE
prices are in EUR
ref
part #
description
quantity
11009
16019024
ref: 11009
O RING,FLOAT CHAMBER
16019024
€ 15.00
13091
130911050
ref: 13091
HOLDER,NEEDLE JET,N41
130911050
€ 16.00
16005
160051001
ref: 16005
TOP-CHAMBER,MIXING
€ 23.50
16007
160071001
ref: 16007
SEAT-SPRING,THROTTLE
160071001
€ 8.00
16009
160091081
ref: 16009
NEEDLE-JET,#N05C
€ 19.50
16012
160121001
ref: 16012
CAP,RUBBER
160121001
€ 3.50
16014
160141029
ref: 16014
SCREW-PILOT AIR
160141029
€ 13.50
16017
160171079
ref: 16017
JET-NEEDLE
160171079
€ 26.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311001
ref: 16031
FLOAT
160311001
€ 38.50
43028
430281023
ref: 43028
DIAPHRAGM
430281023
€ 153.00
92009
920091004
ref: 92009
SCREW, PLUG
920091004
€ 5.50
92009A
920091095
ref: 92009A
SCREW,DRAIN
920091095
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
16044007
€ 4.00
92037A
920371005
ref: 92037A
CLAMP
920371005
€ 5.50
92043
920431002
ref: 92043
PIN,FLOAT
920431002
€ 3.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92062
920621018
ref: 92062
NOZZLE,MAIN
€ 15.50
92063
920631023
ref: 92063
JET-MAIN,#85
920631023
€ 9.50
92063A
920631070
ref: 92063A
JET-MAIN,PRI,#62
920631070
€ 8.00
92064
920641001
ref: 92064
JET-PILOT,#35
920641001
€ 14.00
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811001
ref: 92081
SPRING
920811001
€ 10.00
92081A
920811002
ref: 92081A
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220B0412
ref: 220A
SCREW-PAN CROS 4X12
220B0412
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
461F0400
€ 0.50
