GEAR CHANGE MECHANISM

KZ305B1 CSR 1982 USA / BELT DRIVE

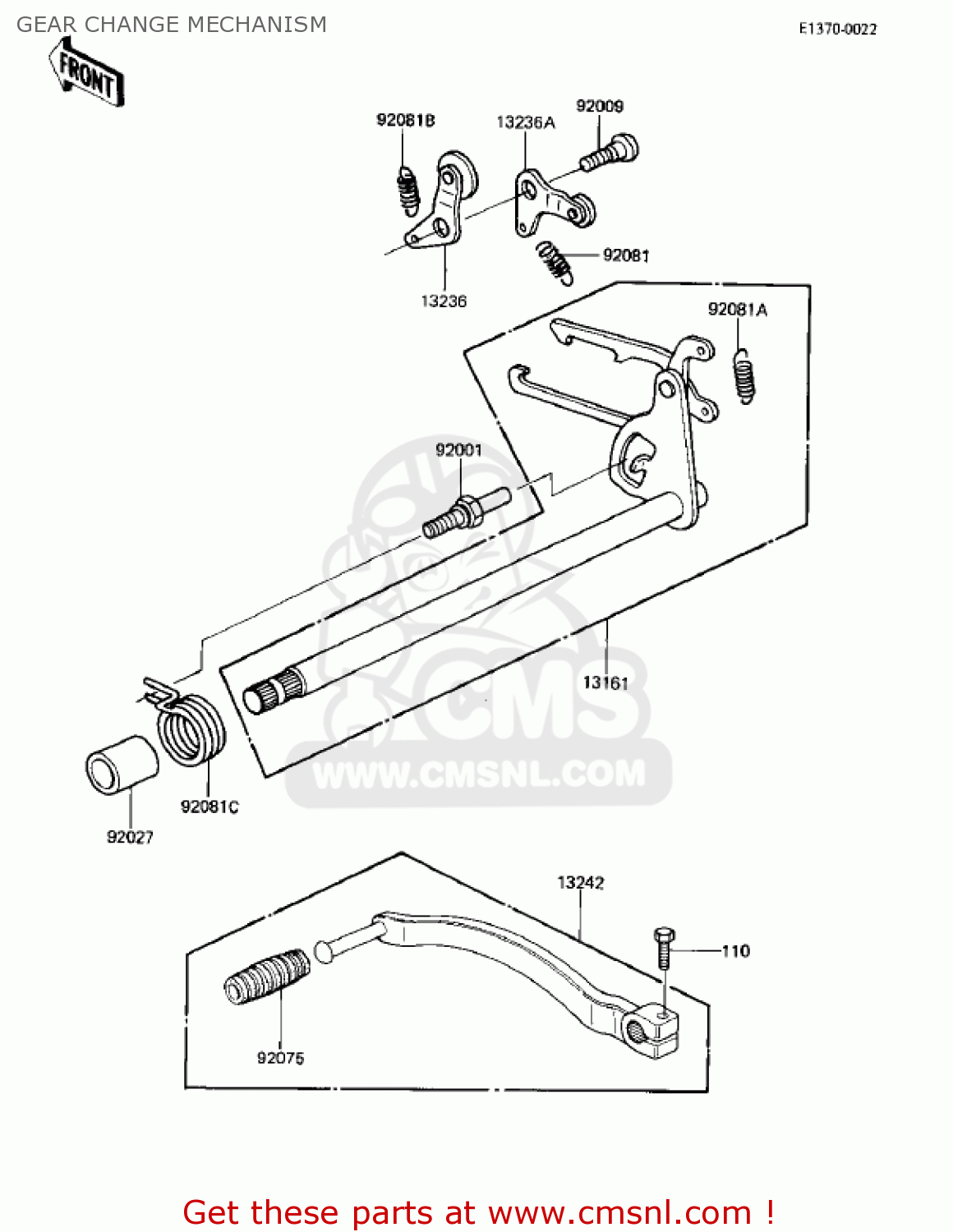

Gear change mechanism diagram KZ305B1 CSR 1982 USA / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

13161

131611007
ref: 13161

LEVER-COMP-CHANGE SHA

€ 66.00

13236

132361037
ref: 13236

LEVER-COMP,GEAR POSIT

€ 9.00

13236A

132361038
ref: 13236A

LEVER-COMP,NEUTRAL PO

€ 9.00

13242

132421038
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 33.50

92001

920011401
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92009

92011023
ref: 92009

SCREW-PAN HEAD

€ 2.50

92027

920271440
ref: 92027

COLLAR,13X18.3X21.5

€ 3.50

92075

921601036
ref: 92075

DAMPER,CHANGE PEDAL

€ 3.50

92081

92081051
ref: 92081

SPRING-CHNG DRUM LEV

€ 2.50

92081A

92081076
ref: 92081A

SPRING-CHANG LEVER

€ 3.50

92081B

920811354
ref: 92081B

SPRING,GEAR POSITION

€ 3.00

92081C

92083031
ref: 92081C

SPRING,CHANGE PEDAL

€ 6.50

110

112G0620
ref: 110

BOLT 6X20

€ 1.00
