STARTER MOTOR/STARTER CLUTCH
KZ305A2 CSR 1982 USA

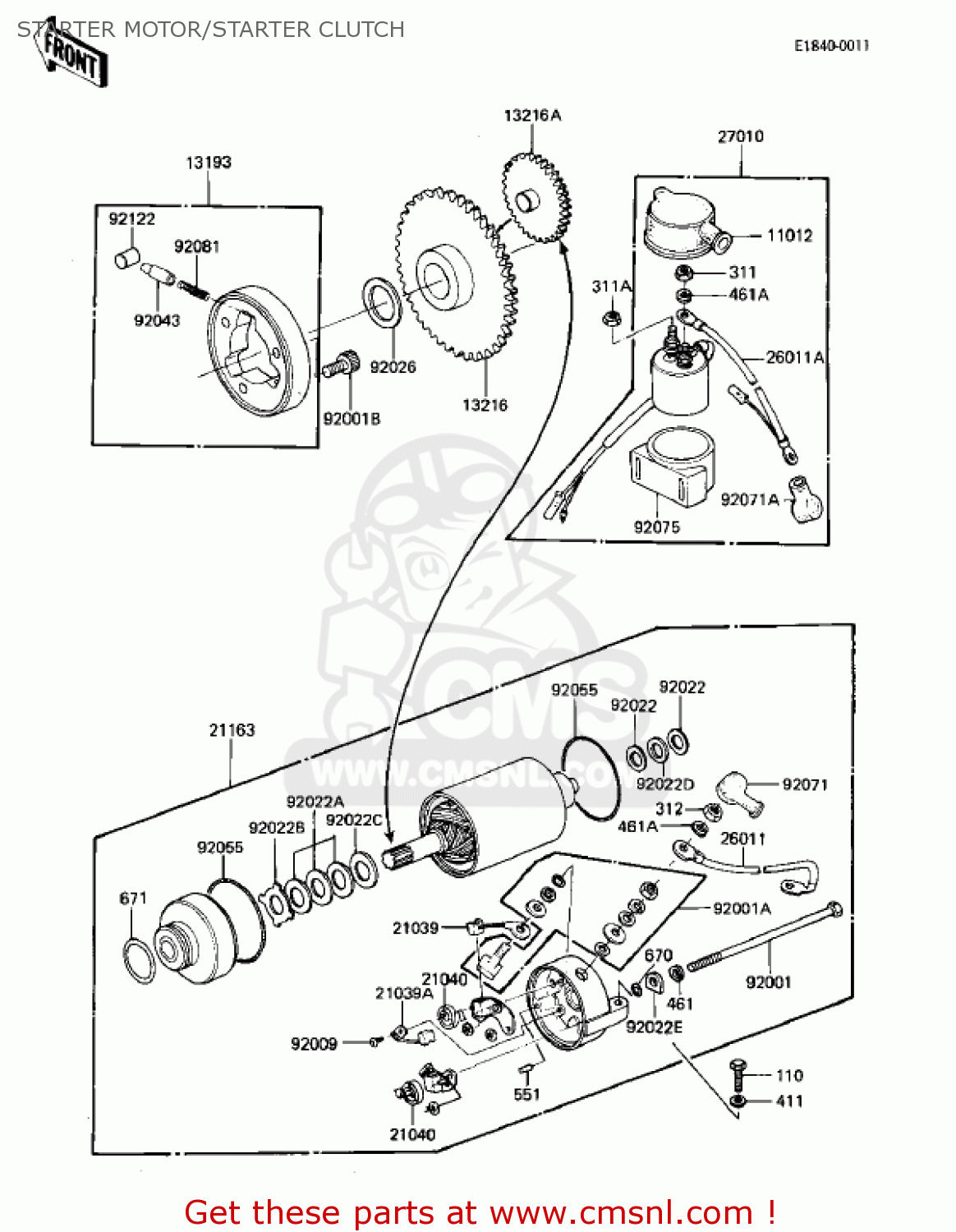

Starter motor/starter clutch diagram KZ305A2 CSR 1982 USA
STARTER MOTOR/STARTER CLUTCH KZ305A2 CSR 1982 USA
×
prices are in EUR
ref
part #
description
quantity
11012
21141004
ref: 11012
COVER,MAG SWITCH
€ 8.50
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
13216
160851032
ref: 13216
GEAR-COMP,ONEWAY
€ 93.00
13216A
132161009
ref: 13216A
GEAR-ASSY,STARTER,IDL
€ 79.00
21039
210391001
ref: 21039
BRUSH,CARBON(+)
€ 21.50
21039A
210391002
ref: 21039A
BRUSH,CARBON(-)
€ 15.50
21040
210401001
ref: 21040
SPRING-BRUSH
€ 4.50
21163
211631199
ref: 21163
STARTER-ELECTRIC
€ 369.50
26011
260111049
ref: 26011
WIRE-LEAD,STARTER MOT
€ 22.50
26011A
260111128
ref: 26011A
WIRE-LEAD,MAGNETIC SW
€ 36.00
27010
270101050
ref: 27010
SWITCH,MAGNETIC
€ 88.50
92001
920011156
ref: 92001
BOLT,PAN HEAD,5X108.5
€ 3.50
92001A
920011204
ref: 92001A
BOLT ASSY,STARTER MOT
€ 13.00
92001B
120P0816
ref: 92001B
BOLT-SOCKET
€ 2.50
92009
920091058
ref: 92009
SCREW,TAPPING,3.5X8
€ 2.00
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221129
ref: 92022A
WASHER,THRUST,B
€ 1.50
92022B
920221130
ref: 92022B
WASHER,THRUST SUPPORT
€ 4.00
92022C
920221131
ref: 92022C
WASHER,BAKELITE
€ 2.00
92022D
920221132
ref: 92022D
WASHER,9.1X18X0.8
€ 4.00
92022E
920221133
ref: 92022E
WASHER,LOCK,T=3.2
€ 2.00
92026
92026092
ref: 92026
SPACER,22X35.5X1.0
€ 8.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551042
ref: 92055
RING-O,56MM
€ 3.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92071A
21017023
ref: 92071A
GROMMET,MAGNETIC SWIT
€ 12.00
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
110
112G0620
ref: 110
BOLT 6X20
€ 1.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
311A
311G0600
ref: 311A
NUT,6M/M
€ 0.50
312
312B0600
ref: 312
NUT,6MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
551
551A0306
ref: 551
PIN,DOWEL,3X6
€ 1.00
670
670B1505
ref: 670
O RING,5MM
€ 1.00
671
671B2525
ref: 671
O RING,25MM
€ 3.00
