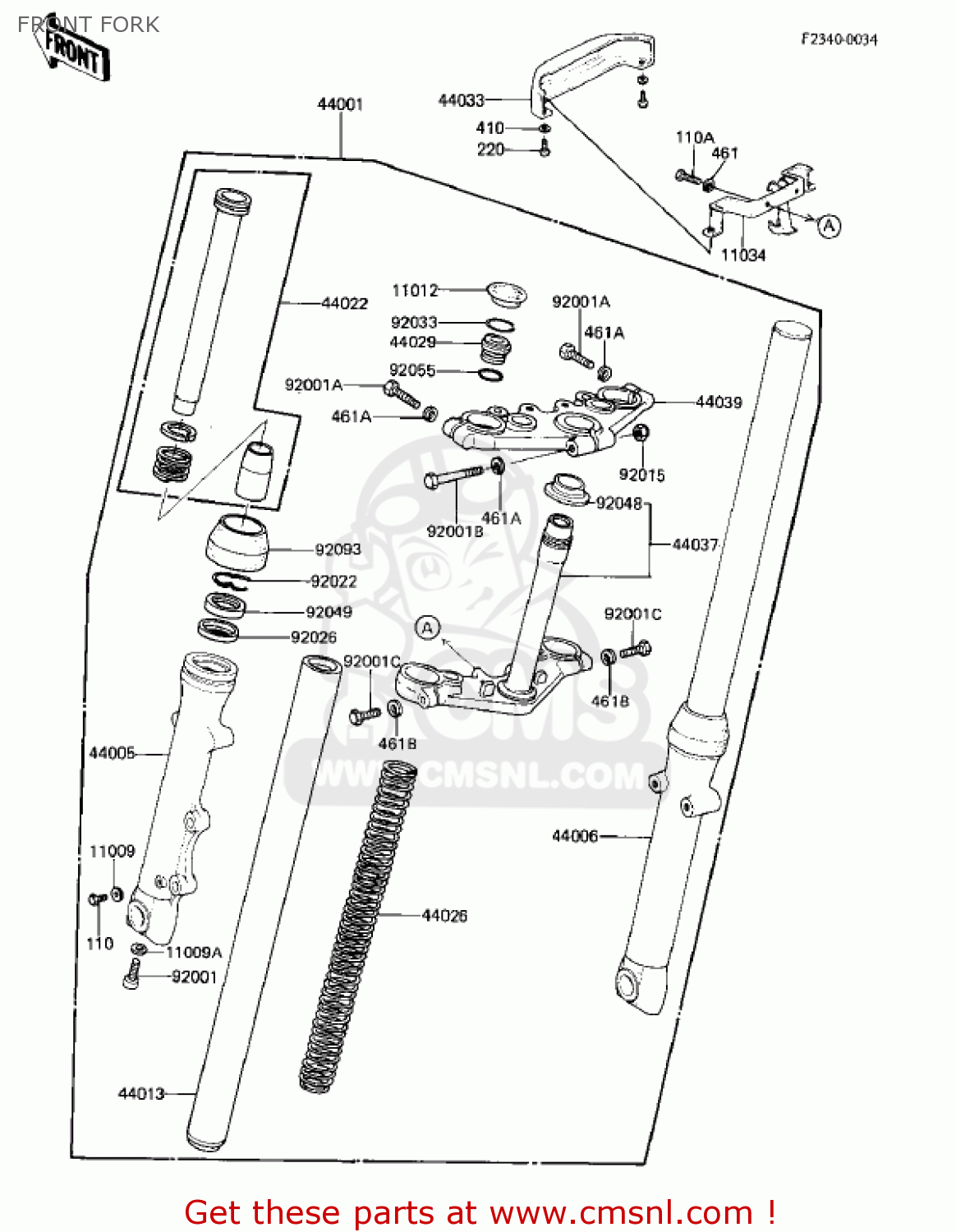

FRONT FORK

ref

part #

description

quantity

11009

44045047
ref: 11009

GASKET,DRAIN PLUG (NAS)

€ 6.00

11009A

44045051
ref: 11009A

GASKET,FORK CYLINDER (NAS)

€ 4.00

11012

110121021
ref: 11012

CAP,RUBBER,FORK TOP

€ 6.00

11034

110341758
ref: 11034

BRACKET,FORK COVER

€ 17.00

44001

440011196
ref: 44001

FORK-FRONT

€ 806.00

44005

440051053
ref: 44005

PIPE-LEFT FORK OUTER

€ 132.50

44006

440061053
ref: 44006

PIPE-RICHT FORK OUTER

€ 94.00

44013

440131025
ref: 44013

PIPE-FORK INNER

€ 124.00

44022

440221048
ref: 44022

CYLINDER-FORK

€ 69.00

44026

440261102
ref: 44026

SPRING-FRONT FORK

€ 38.00

44029

44029022
ref: 44029

GUIDE, FORK SPRING

€ 8.00

44033

440331062
ref: 44033

COVER-FORK

€ 20.00

44037

440371014
ref: 44037

STEM,STEERING

€ 267.00

44039

440391012
ref: 44039

HOLDER-FORK UPPER

€ 128.00

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92001A

920011063
ref: 92001A

BOLT,HEX HEAD,8X40

€ 6.50

92001B

920011064
ref: 92001B

BOLT,HEX HEAD,8X55

€ 6.00

92001C

920011252
ref: 92001C

BOLT,HEX HEAD,10X35

€ 3.50

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92022

44043057
ref: 92022

RING,OIL SEAL STOPER

€ 4.00

92026

920261005
ref: 92026

SPACER,FORK

€ 8.50

92033

44044023
ref: 92033

CIRCLIP

€ 3.50

92048

92047006
ref: 92048

CONE-STRNG STEM

€ 11.00

92049

920491077
ref: 92049

OIL SEAL,FORK

€ 13.50

92055

44046025
ref: 92055

'O' RING, FORK

€ 4.00

92093

920931063
ref: 92093

SEAL,FORK

€ 19.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

110A

112G0612
ref: 110A

BOLT-UPSET

€ 2.50

220

220B0410
ref: 220

SCREW-PAN-CROS

€ 2.00

410

410B0400
ref: 410

WASHER-PLAIN-SMALL,4M

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50

461B

461F1000
ref: 461B

WASHER-SPRING,10MM

€ 0.50
