CLUTCH (KZ305-A1)
KZ305A2 CSR 1982 USA

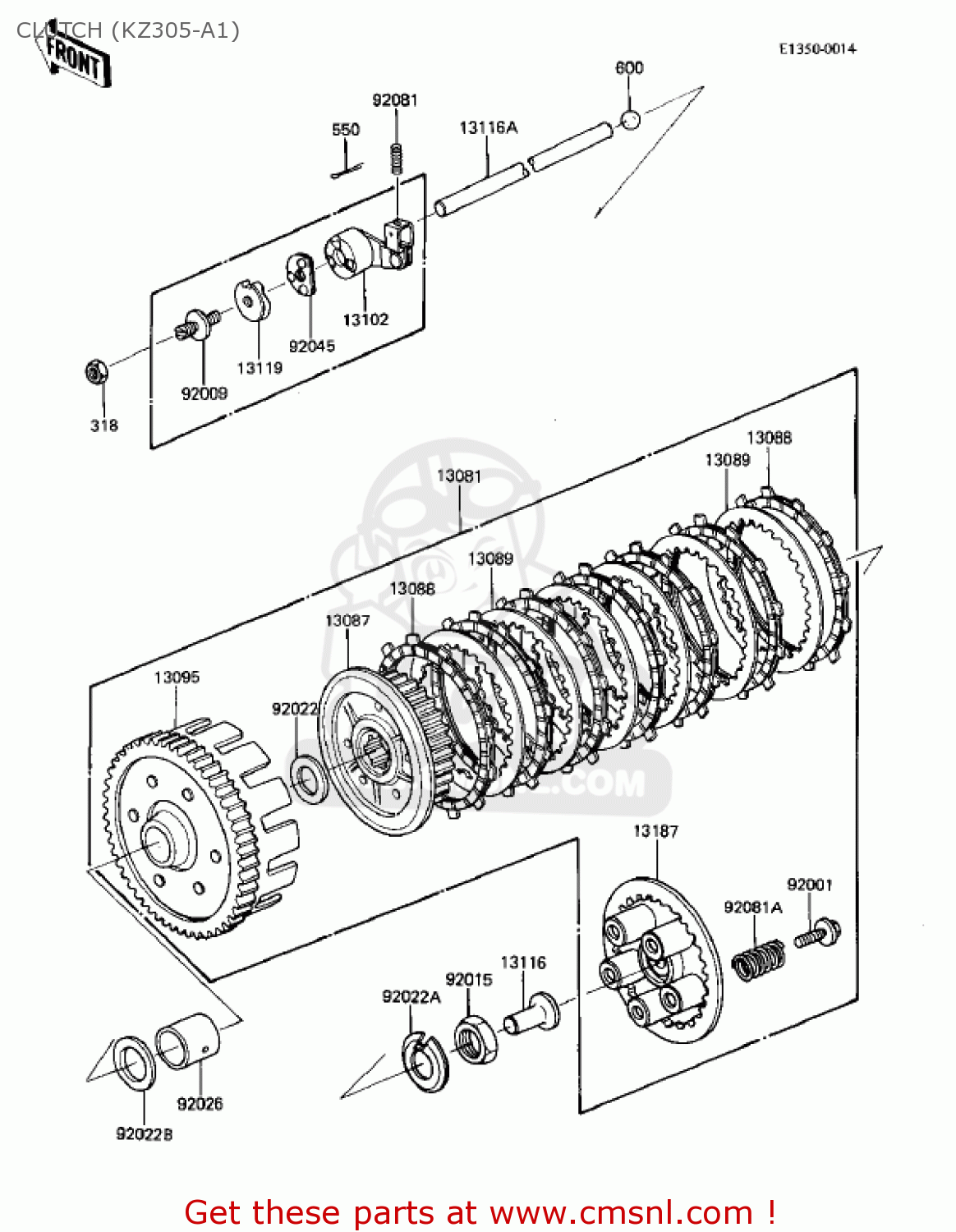

Clutch (kz305-a1) diagram KZ305A2 CSR 1982 USA
CLUTCH (KZ305-A1) KZ305A2 CSR 1982 USA
×
prices are in EUR
ref
part #
description
quantity
13081
130811048
ref: 13081
CLUTCH ASSY
€ 287.00
13087
130871005
ref: 13087
HUB-CLUTCH
€ 90.00
13088
130881009
ref: 13088
PLATE-FRICTION (NAS)
€ 10.50
13089
130891005
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 7.50
13095
130951020
ref: 13095
HOUSING-COMP-CLUTCH
€ 316.00
13102
131021004
ref: 13102
RELEASE-COMP-CLUTCH
€ 46.00
13116
131161010
ref: 13116
ROD-PUSH,CLUTCH
€ 12.50
13116A
131161031
ref: 13116A
ROD-PUSH,CLUTCH,7X242
€ 12.50
13119
131191003
ref: 13119
CAM-RELEASE,CLUTCH
€ 11.50
13187
131871009
ref: 13187
PLATE-CLUTCH OPERATIN
€ 41.50
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92009
920091009
ref: 92009
SCREW,SLOTTED,8M/M
€ 2.50
92015
92016028
ref: 92015
NUT
€ 9.50
92022
920221075
ref: 92022
WASHER,25.5X38X2
€ 9.00
92022A
920221142
ref: 92022A
WASHER,LOCK
€ 2.50
92022B
92022145
ref: 92022B
WASHER-CLUTCH THRUST
€ 4.50
92026
920261052
ref: 92026
BUSHING,CLUTCH
€ 10.50
92045
920451001
ref: 92045
BEARING,B.CLUTCH
€ 8.00
92081
92081069
ref: 92081
SPRING-CLUTCH RELEASE
€ 4.50
92081A
920811078
ref: 92081A
SPRING,CLUTCH
€ 7.00
318
318B0800
ref: 318
NUT,8MM
€ 0.50
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
