CARBURETOR ASSY
KZ305A2 CSR 1982 USA

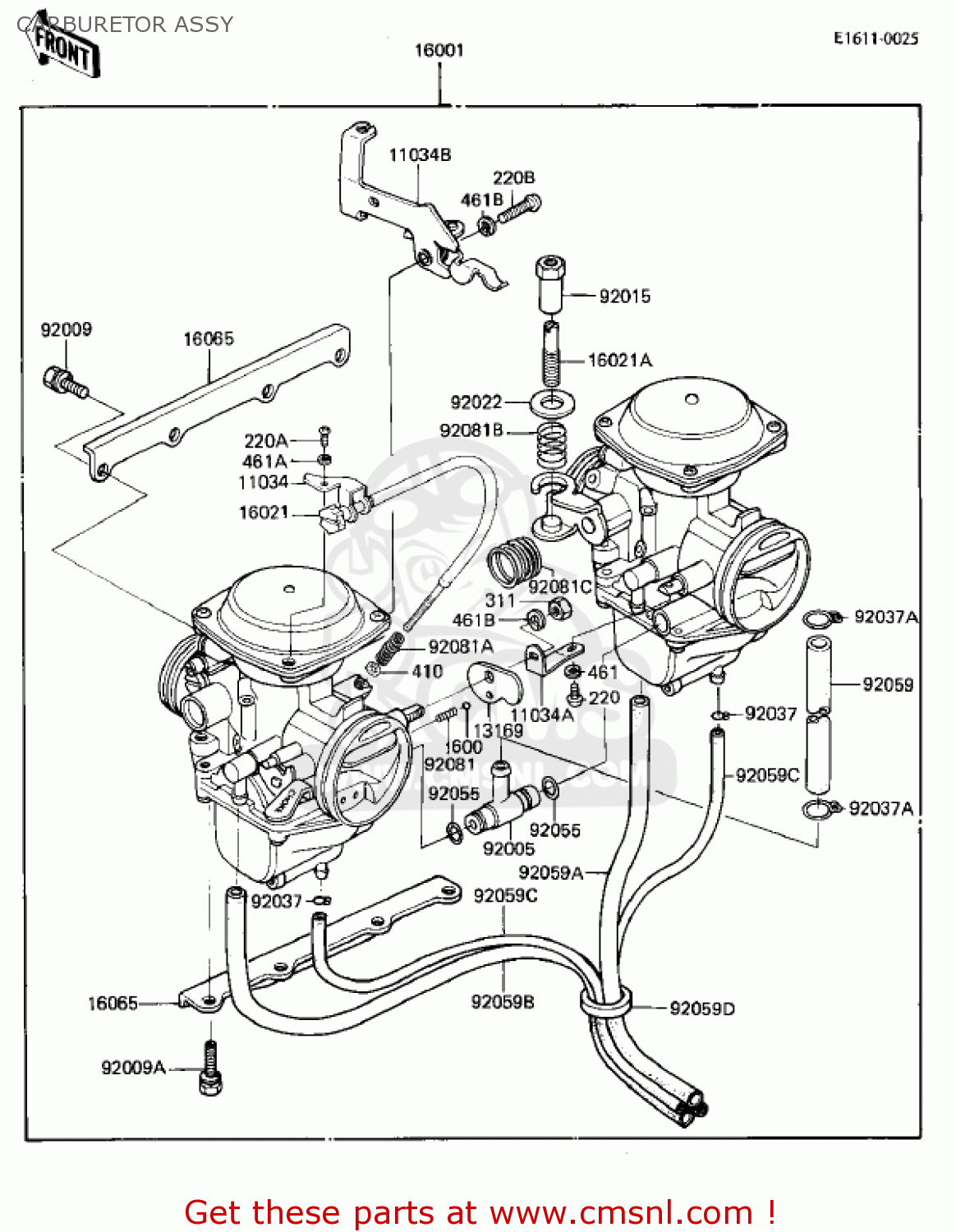

Carburetor assy diagram KZ305A2 CSR 1982 USA
CARBURETOR ASSY KZ305A2 CSR 1982 USA
×
prices are in EUR
ref
part #
description
quantity
11034
110341202
ref: 11034
BRACKET,STOP SCREW
€ 17.50
11034A
110341203
ref: 11034A
BRACKET,CHOKE LEVER
€ 6.00
11034B
110341826
ref: 11034B
BRACKET,THROTTLE CABL
€ 36.50
13169
131691151
ref: 13169
PLATE,CHOKE LINK
€ 4.50
16001
160011363
ref: 16001
CARBURETOR
€ 1,028.50
16021
160211007
ref: 16021
SCREW-THROTTLE STOP
€ 18.50
16021A
160211027
ref: 16021A
SCREW,SLOTTED
€ 12.00
16065
160651012
ref: 16065
PLATE,STAY
€ 23.00
92005
920051032
ref: 92005
FITTING,FUEL HOSE
€ 29.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091006
ref: 92009A
BOLT, HEX HEAD, 6X22
€ 3.00
92015
920151118
ref: 92015
NUT,5MM
€ 4.50
92022
920221204
ref: 92022
WASHER
€ 2.00
92037
920371142
ref: 92037
CLAMP,TUBE
€ 2.50
92037A
920371682
ref: 92037A
CLAMP,TUBE
€ 4.00
92055
920551004
ref: 92055
O RING
€ 2.50
92059
920591001
ref: 92059
HOSE, FUEL INLET
€ 13.50
92059A
92059110
ref: 92059A
HOSE
€ 11.50
92059B
920591106
ref: 92059B
HOSE,AIR,4.5X8X450
€ 11.50
92059C
92059111
ref: 92059C
HOSE,FUEL OVERFLOW
€ 17.50
92059D
920591114
ref: 92059D
TUBE,CLAMP
€ 7.50
92081
920811004
ref: 92081
SPRING
€ 3.00
92081A
920811062
ref: 92081A
SPRING,STOP SCREW
€ 4.50
92081B
920811252
ref: 92081B
SPRING
€ 2.50
92081C
920811453
ref: 92081C
SPRING,THROTTLE RETRN
€ 6.00
220
220B0306
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0410
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220B0520
ref: 220B
SCREW-PAN-CROS
€ 0.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
410
410B0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0400
ref: 461A
WASHER-SPRING,4MM
€ 0.50
461B
461F0500
ref: 461B
WASHER-SPRING,5MM
€ 0.50
600
600A0400
ref: 600
BALL-STEEL,1/8
€ 2.00
