THROTTLE ASSY (KZ1100-B1)
KZ1100B1 GPZ 1981 USA CANADA

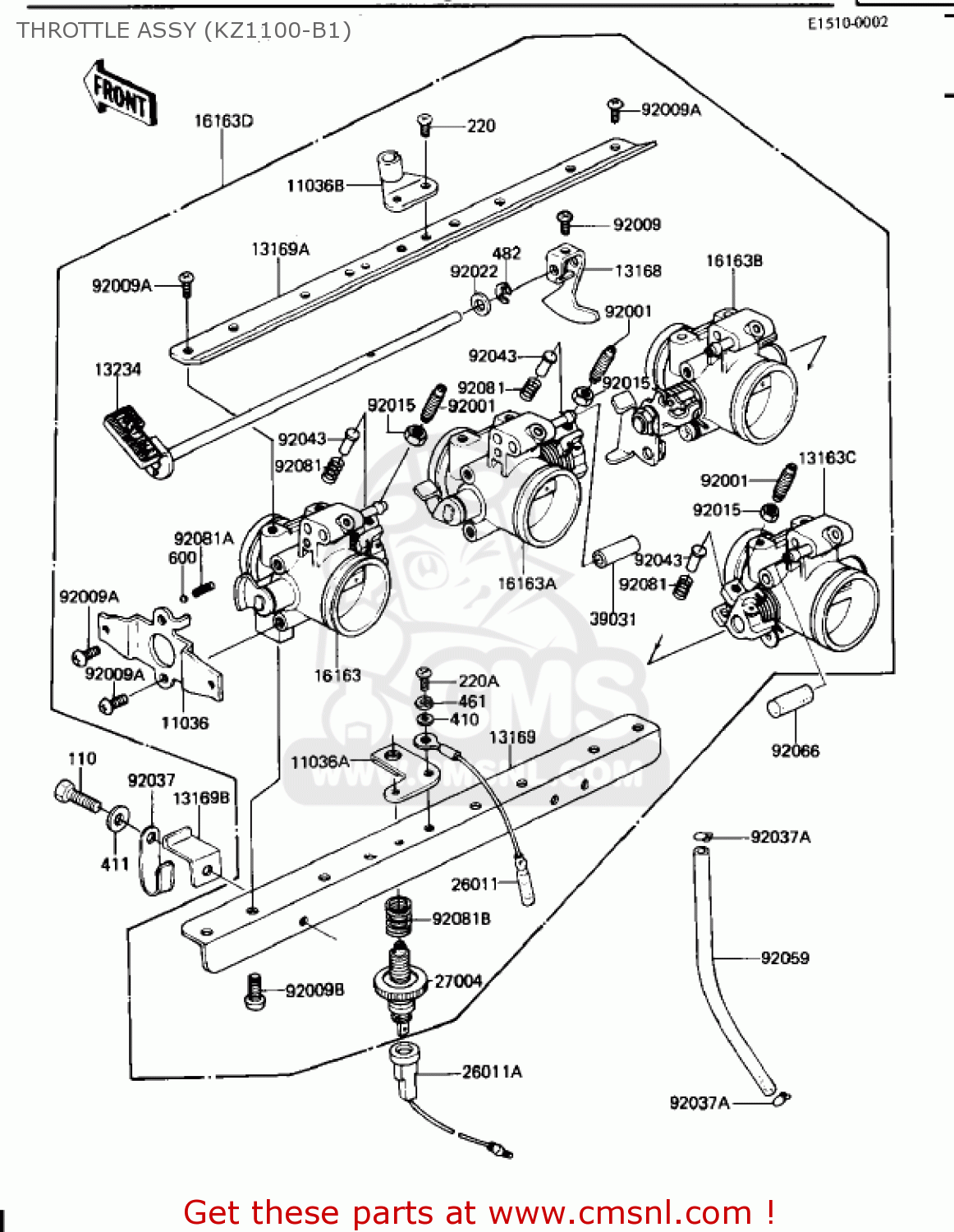

Throttle assy (kz1100-b1) diagram KZ1100B1 GPZ 1981 USA CANADA
THROTTLE ASSY (KZ1100-B1) KZ1100B1 GPZ 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361081
ref: 11036
BRACKET-A,THROTTLE SW
€ 9.00
11036A
110361082
ref: 11036A
BRACKET-A,IDLE SWITCH
€ 7.50
11036B
110361211
ref: 11036B
BRACKET-A,THRTTL CABL
€ 16.00
13168
131681089
ref: 13168
LEVER,FAST IDLE
€ 5.50
13169
131691403
ref: 13169
PLATE,THRTTL STAY,LWR
€ 22.50
13169A
131691439
ref: 13169A
PLATE,THRTTL STAY,UPP
€ 13.00
13169B
131691441
ref: 13169B
PLATE,PROTECTOR
€ 1.50
13234
132341005
ref: 13234
SHAFT-COMP,FAST IDLE
€ 26.50
16163
161631007
ref: 16163
THROTTLE-ASSY,LH,OUT
€ 71.00
16163A
161631008
ref: 16163A
THROTTLE-ASSY,LH,IN
€ 71.00
16163B
161631009
ref: 16163B
THROTTLE-ASSY,RH,IN
€ 71.00
16163C
161631010
ref: 16163C
THROTTLE-ASSY,RH,OUT
€ 72.00
16163D
161631011
ref: 16163D
THROTTLE-ASSY
€ 623.50
26011
260111068
ref: 26011
WIRE,TAIL LAMP GROUND
€ 2.50
26011A
260111127
ref: 26011A
WIRE-LEAD,IDLE SWITCH
€ 18.50
27004
270041010
ref: 27004
SWITCH-ASSY,IDLING
€ 123.00
39031
390311009
ref: 39031
CAP-END
€ 8.50
92001
920011447
ref: 92001
BOLT,ADJUSTING
€ 6.50
92009
16046007
ref: 92009
SCREW,PAN HEAD,5X7
€ 6.50
92009A
220B0510
ref: 92009A
SCREW-PAN-CROS,5X10
€ 0.50
92009B
220B0614
ref: 92009B
SCREW-PAN HEAD,6X14
€ 2.00
92015
920151119
ref: 92015
NUT,THROTTLE VALVE AD
€ 3.50
92022
16039019
ref: 92022
WASHER-PLAIN
€ 3.00
92037
21126008
ref: 92037
CLAMP,WIRING HARNESS
€ 3.00
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92043
920431079
ref: 92043
PIN,THROTTLE VALVE AD
€ 3.50
92059
920591043
ref: 92059
TUBE,TUBE 4X9X290
€ 7.00
92066
92068006
ref: 92066
CN
RUBBER PLUG
€ 2.50
92081
920811259
ref: 92081
SPRING,THROTTLE VLV
€ 3.00
92081A
920811260
ref: 92081A
SPRING,FAST IDLE SHFT
€ 3.50
92081B
920811392
ref: 92081B
SPRING,IDLING ADJUST
€ 3.00
110
110B0510
ref: 110
BOLT-HEX HEAD,5X10
€ 0.50
220
220B0508
ref: 220
SCREW-PAN-CROS,5X8
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
410
410B0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
411
411B0500
ref: 411
WASHER-PLAIN,5MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
482
482K4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
600
600A0400
ref: 600
BALL-STEEL,1/8
€ 2.00
