METERS (KZ1100-B1)
KZ1100B1 GPZ 1981 USA CANADA

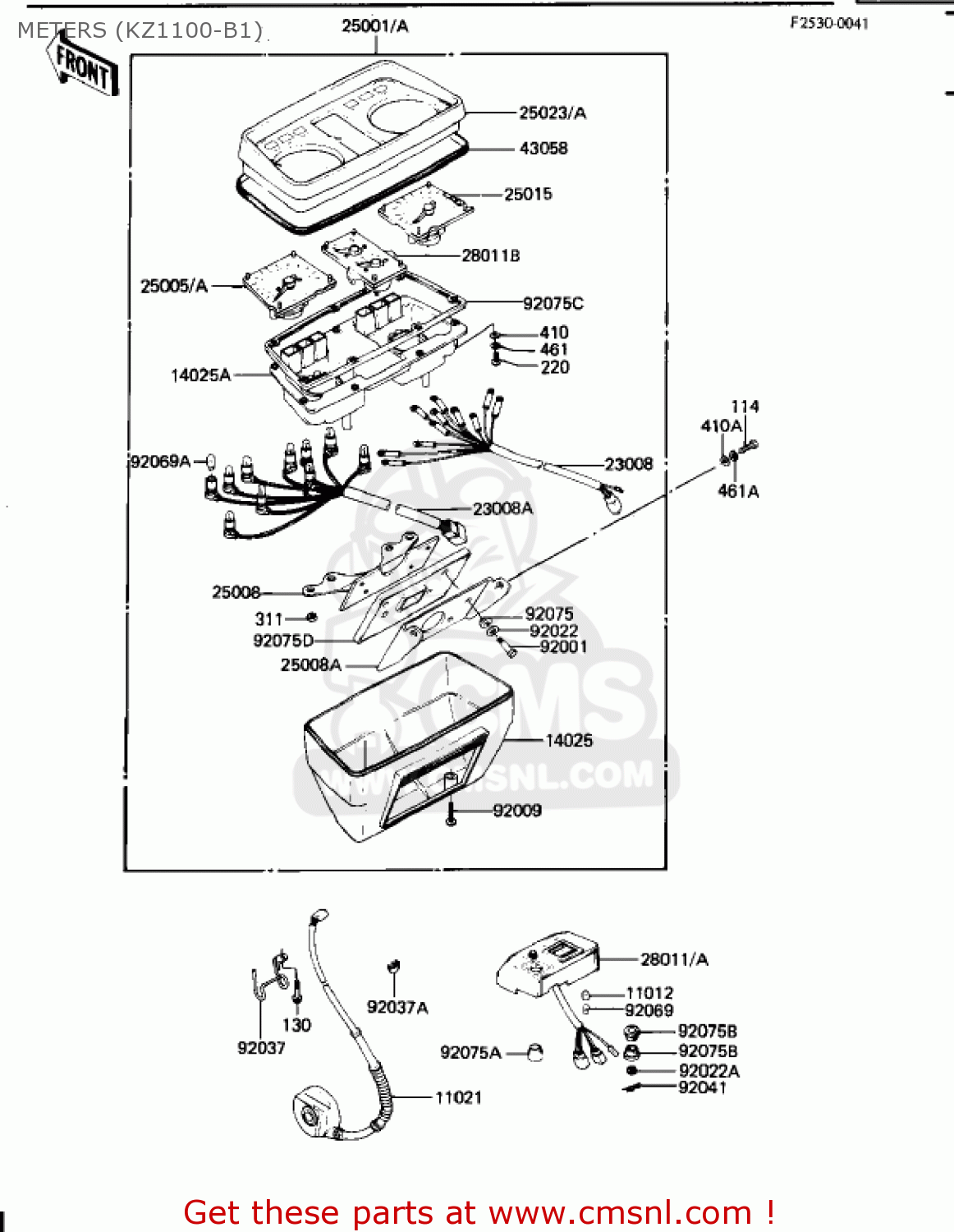

Meters (kz1100-b1) diagram KZ1100B1 GPZ 1981 USA CANADA
METERS (KZ1100-B1) KZ1100B1 GPZ 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121172
ref: 11012
CAP,BULB,GREEN
€ 2.00
11021
110211011
ref: 11021
CASE-ASSY,SPEED SENSO
€ 507.00
14025
140251384
ref: 14025
COVER,MATER CASE,LWR
€ 72.50
14025A
140251526
ref: 14025A
COVER, METER HOUSING
€ 125.00
23008
230081112
ref: 23008
SOCKET-ASSY,METER,UNT
€ 34.00
23008A
230081113
ref: 23008A
METER LAMP SOCKET ASSEMBLY
€ 68.00
25001
250011218
ref: 25001
US
METER ASSEMBLY,MPH
€ 1,000.50
25001A
250011219
ref: 25001A
CN
METER-ASSY,KPH (Canada)
€ 0.00
25005
250051128
ref: 25005
US
SPEEDOMETER,MPH
€ 438.50
25005A
250051129
ref: 25005A
CN
SPEEDOMETER,KPH
€ 195.50
25008
250081043
ref: 25008
BRACKET-METER,CASE
€ 49.50
25008A
250081044
ref: 25008A
BRACKET-METER,COVER
€ 61.00
25015
250151092
ref: 25015
TACHOMETER,X1000RPM
€ 104.00
25023
250231030
ref: 25023
CN
METER CASE COVER,UPPER
€ 115.00
25023A
250231031
ref: 25023A
US
COVER-METER CASE,UPP
€ 182.00
28011
280111011
ref: 28011
US
METER,TOTAL & TRIP
€ 629.00
28011A
280111012
ref: 28011A
CN
METER,TOTAL & TRIP
€ 704.50
28011B
280111026
ref: 28011B
METER,FUEL & VOLT
€ 196.50
43058
430581022
ref: 43058
RING,METER CASE COVER
€ 42.50
92001
920011477
ref: 92001
BOLT,5MM,BLACK
€ 2.50
92009
920091125
ref: 92009
SCREW,4X25,BLACK
€ 0.50
92022
920221273
ref: 92022
WASHER,7.2X15X1,BLACK
€ 2.50
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
€ 1.50
92037
920371230
ref: 92037
CLAMP,CALIPER HOLDER
€ 12.00
92037A
920371249
ref: 92037A
CLAMP,HOSE
€ 3.50
92041
92041006
ref: 92041
COTTER
€ 2.00
92069
92069017
ref: 92069
BULB 12V 1.5W
€ 4.00
92069A
920691007
ref: 92069A
BULB,12V3.4W
€ 2.50
92075
25019023
ref: 92075
DAMPER RUBBER,METER
€ 2.50
92075A
920751286
ref: 92075A
DAMPER,TRIP METER
€ 4.50
92075B
920751300
ref: 92075B
DAMPER,TRIP METER
€ 3.50
92075C
920751341
ref: 92075C
DAMPER,WATERPROOF PRT
€ 13.50
92075D
920751342
ref: 92075D
DAMPER,METER CASE
€ 14.50
114
115G0818
ref: 114
BOLT SMALL-UPSET
€ 2.50
130
130B0608
ref: 130
BOLT,FLANGED,6X8
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
311
311B0500
ref: 311
NUT-HEX
€ 0.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
€ 0.50
410A
410B0800
ref: 410A
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
