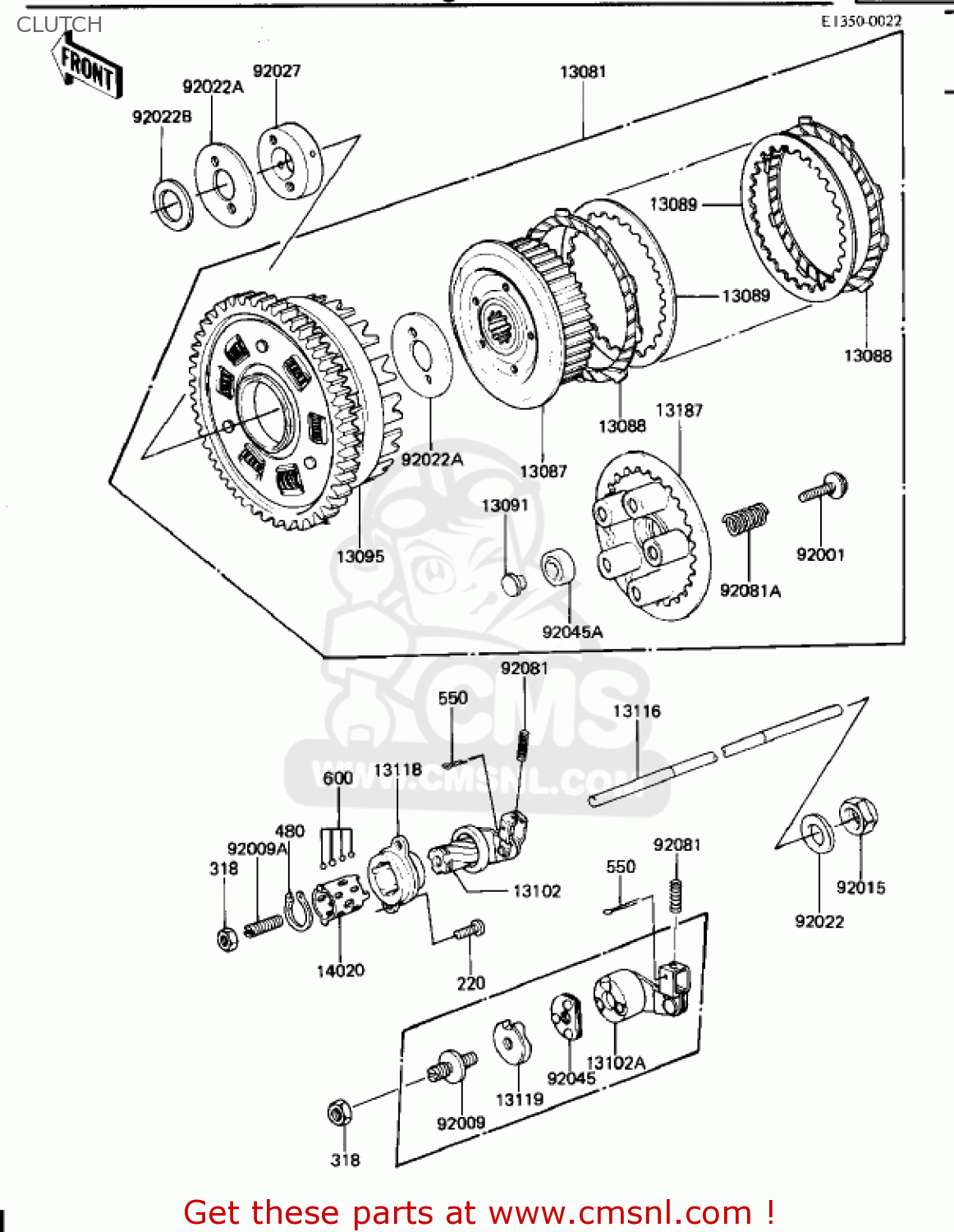

CLUTCH

ref

part #

description

quantity

13081

130811057
ref: 13081

CLUTCH-ASSY

€ 530.50

13087

130871015
ref: 13087

HUB-CLUTCH

€ 213.50

13088

130881013
ref: 13088

PLATE-FRICTION (NAS)

€ 12.50

13089

130891004
ref: 13089

PLATE,CLUTCH STEEL (NAS)

€ 6.50

13091

130911085
ref: 13091

HOLDER,CLUTCH PUSH RO

€ 6.50

13095

130951037
ref: 13095

HOUSING-COMP-CLUTCH

€ 515.00

13102

13102019
ref: 13102

INNER,CLUTCH RELEASE

€ 48.00

13102A

131021012
ref: 13102A

RELEASE-COMP-CLUTCH

€ 45.00

13116

131161033
ref: 13116

ROD-PUSH,CLUTCH

€ 38.50

13118

13118011
ref: 13118

OUTER,CLUTCH REREASEL

€ 14.00

13119

131191003
ref: 13119

CAM-RELEASE,CLUTCH

€ 11.50

13187

131871006
ref: 13187

PLATE-CLUTCH OPERATIN (NAS)

€ 58.00

14020

13197004
ref: 14020

RETAINER

€ 1.00

92001

920011066
ref: 92001

BOLT, CLUTCH SPR FITT

€ 4.00

92009

920091009
ref: 92009

SCREW,SLOTTED,8M/M

€ 2.50

92009A

92014014
ref: 92009A

SCREW-SLOTTED,8X25

€ 4.00

92015

920151555
ref: 92015

NUT,20MM

€ 9.00

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92022A

920221221
ref: 92022A

WASHER,CLUTCH THRUST

€ 10.50

92022B

920221223
ref: 92022B

WASHER,25.3X36X2.5

€ 5.50

92027

920271284
ref: 92027

COLLAR,25X57X16.1

€ 67.00

92045

920451001
ref: 92045

BEARING,B.CLUTCH

€ 8.00

92045A

920451235
ref: 92045A

BEARING-BALL,6001C3ML

€ 15.50

92081

92081069
ref: 92081

SPRING-CLUTCH RELEASE

€ 4.50

92081A

920811033
ref: 92081A

SPRING,CLUTCH

€ 6.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

480

480J1500
ref: 480

CIRCLIP-TYPE-C,15MM

€ 1.00

550

550D1615
ref: 550

PIN-COTTER,1.6X15

€ 1.50

600

600A0400
ref: 600

BALL-STEEL,1/8

€ 2.00

all assemblies
