FRONT FORK (KZ1100-B2)
KZ1100B1 GPZ 1981 USA CANADA

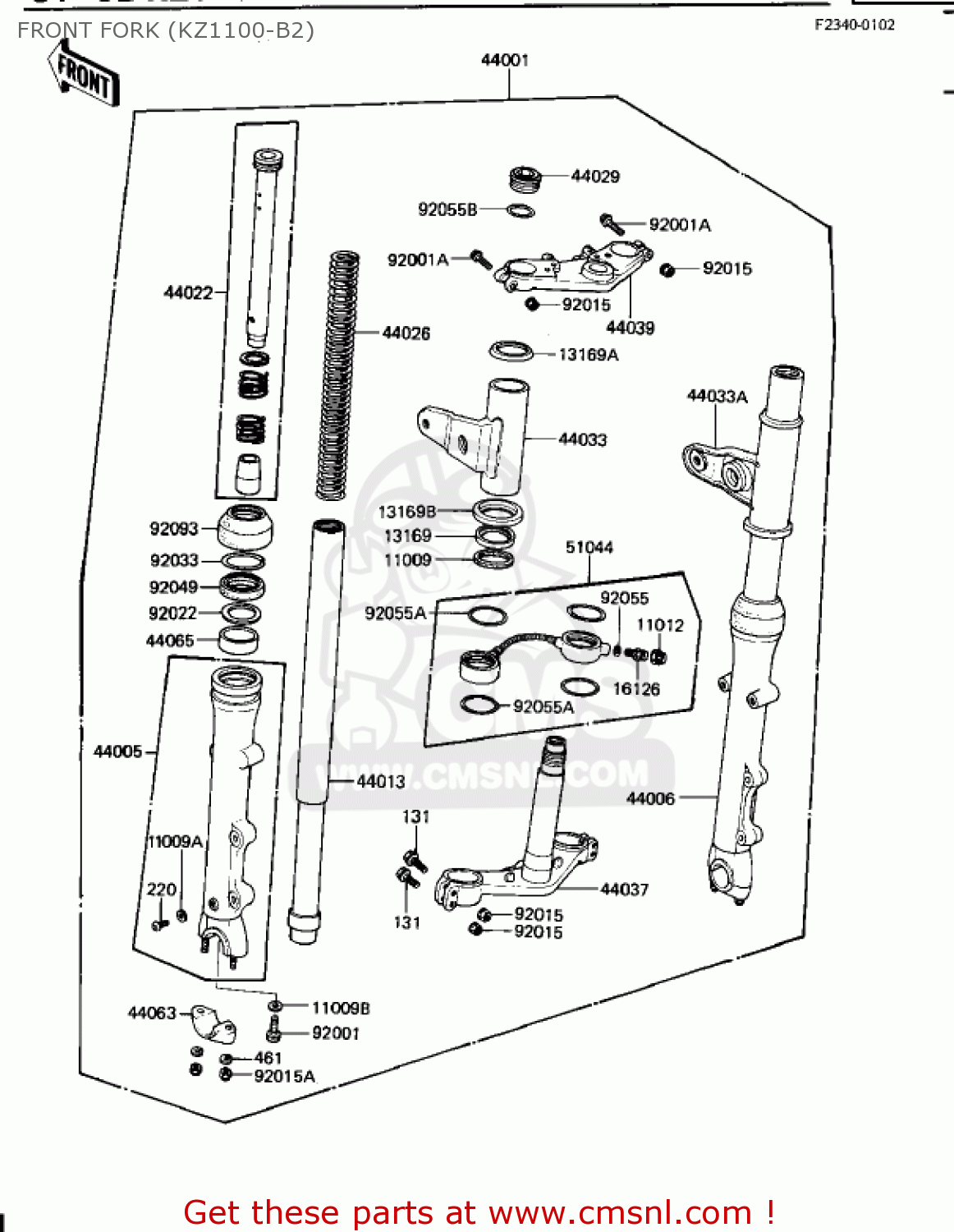

Front fork (kz1100-b2) diagram KZ1100B1 GPZ 1981 USA CANADA
FRONT FORK (KZ1100-B2) KZ1100B1 GPZ 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091015
ref: 11009
GASKET,FORK COVER (NAS)
€ 7.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
11012
110121241
ref: 11012
CAP,AIR VALVE
€ 11.00
13169
131691020
ref: 13169
PLATE,FORK COVER GUID
€ 20.50
13169A
131691498
ref: 13169A
PLATE,FORK COVER,UPP
€ 3.50
13169B
131691499
ref: 13169B
PLATE,FORK COVER,LWR
€ 4.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011338
ref: 44001
FRONT FORK
€ 927.00
44005
440051094
ref: 44005
PIPE-LEFT FORK OUTER
€ 253.00
44006
440061094
ref: 44006
PIPE-RIGHT FORK OUTER
€ 240.00
44013
440131094
ref: 44013
PIPE-FORK INNER
€ 229.50
44022
440221063
ref: 44022
CYLINDER-FORK
€ 46.00
44026
440261147
ref: 44026
SPRING-FRONT FORK
€ 43.50
44029
440291036
ref: 44029
SEAT-FORK SPRING
€ 16.50
44033
440331085
ref: 44033
COVER-FORK,LH,F.BLACK
€ 93.00
44033A
440331086
ref: 44033A
COVER-FORK,RH,F.BLACK
€ 93.00
44037
440371072
ref: 44037
HOLDER-FORK UNDER
€ 356.00
44039
440391052
ref: 44039
HOLDER-FORK UPPER
€ 147.00
44063
440631006
ref: 44063
HOLDER-FRONT AXLE
€ 25.50
44065
440651091
ref: 44065
BUSHING-FRONT FORK,OU
€ 17.00
51044
510441021
ref: 51044
TUBE-ASSY,AIR,FORK
€ 171.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920011572
ref: 92001A
BOLT,FLANGED,8X57,BLA
€ 3.00
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92015A
920151205
ref: 92015A
NUT,U,8MM,BLACK
€ 3.00
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491066
ref: 92049
SEAL-OIL,FRONT FORK
€ 18.50
92055
920551094
ref: 92055
0 RING,AIR VALVE
€ 1.00
92055A
920551369
ref: 92055A
RING-O,ROD
€ 6.50
92055B
920551135
ref: 92055B
RING-0,FORK SPRING SE
€ 4.00
92093
920931051
ref: 92093
SEAL,FORK
€ 24.50
131
131J0855
ref: 131
BOLT-FLANGED,8X55,BLA
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
461
461K0800
ref: 461
WASHER-SPRING,8MM,BLA
€ 1.50
