REAR HUB
KX65-A4 KX65 2003 USA CANADA

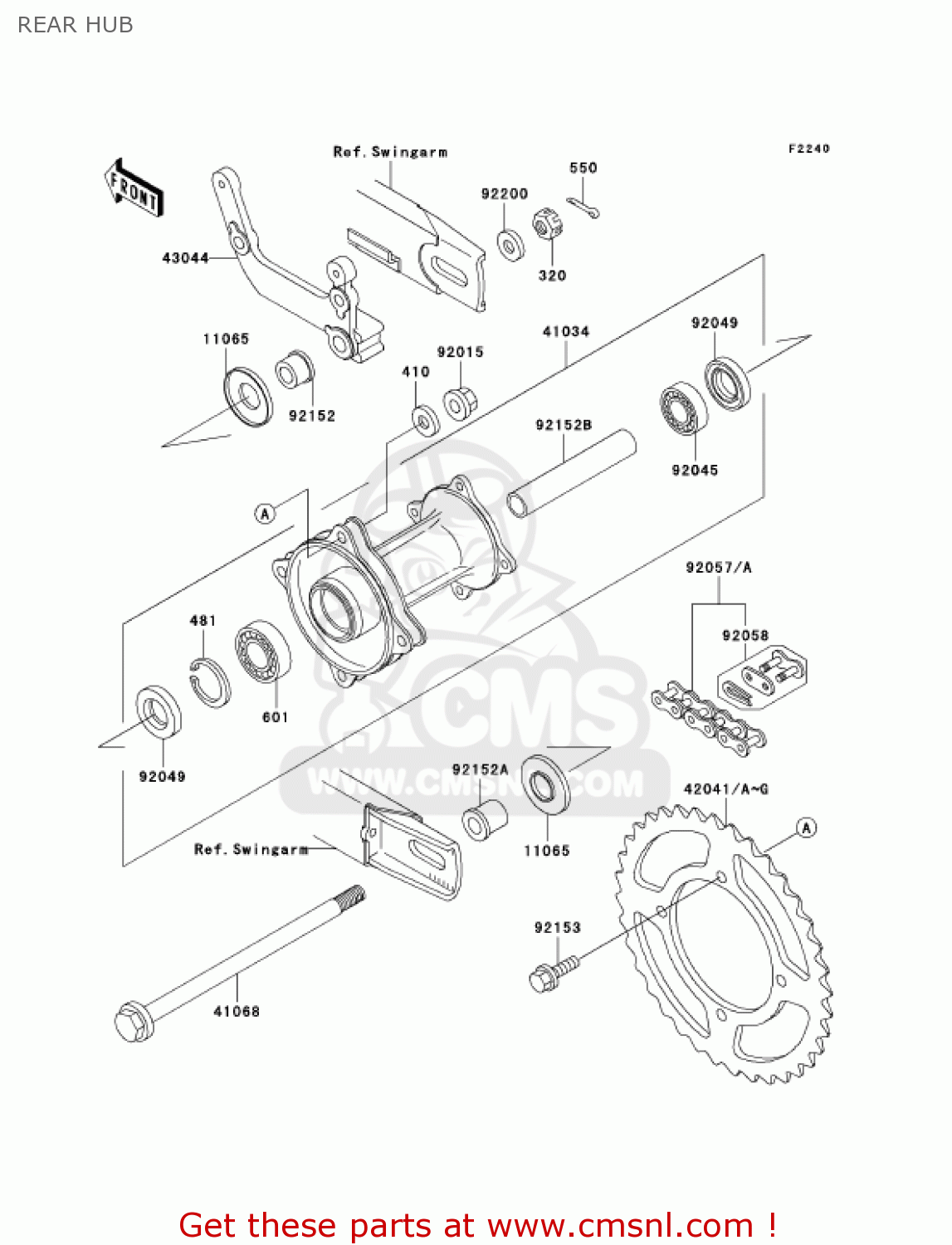

Rear hub diagram KX65-A4 KX65 2003 USA CANADA
REAR HUB KX65-A4 KX65 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
320
320G1200
ref: 320
NUT-CASTLE
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
€ 1.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6301UU
ref: 601
BEARING-BALL,#6301UUC
€ 24.00
11065
110651137
ref: 11065
CAP
€ 2.50
41034
410341303
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 246.50
41068
410681419
ref: 41068
AXLE,RR
€ 20.50
42041A
420411526
ref: 42041A
(OPTION)
SPROCKET-HUB,45T
€ 33.00
42041C
420411527
ref: 42041C
(OPTION)
SPROCKET-HUB,46T
€ 33.00
42041D
420411528
ref: 42041D
SPROCKET-HUB,47T
€ 33.00
42041F
420411529
ref: 42041F
(OPTION)
SPROCKET-HUB,48T
€ 33.00
42041G
420411549
ref: 42041G
(OPTION)
SPROCKET-HUB,49T
€ 33.00
43044
430441127
ref: 43044
HOLDER-COMP-CALIPER,R
€ 94.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92045
920451062
ref: 92045
BEARING-BALL,TMB201LL
€ 24.50
92049
920491257
ref: 92049
SEAL-OIL,TC20376.5
€ 7.00
92057A
920571504
ref: 92057A
CHAIN,DRIVE,DID420MBK
€ 25.50
92058
920581073
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92152
921521196
ref: 92152
COLLAR,AXLE,L=15.5
€ 7.00
92152A
921521198
ref: 92152A
COLLAR,RR AXLE,L=22
€ 7.50
92152B
921521199
ref: 92152B
COLLAR,RR BRAKE DRUM,
€ 8.00
92153
921531101
ref: 92153
BOLT,FLANGED,8X28
€ 3.00
92200
922001004
ref: 92200
WASHER,12.3X23X2.3
€ 3.00
