CRANKCASE
KX65-A4 KX65 2003 USA CANADA

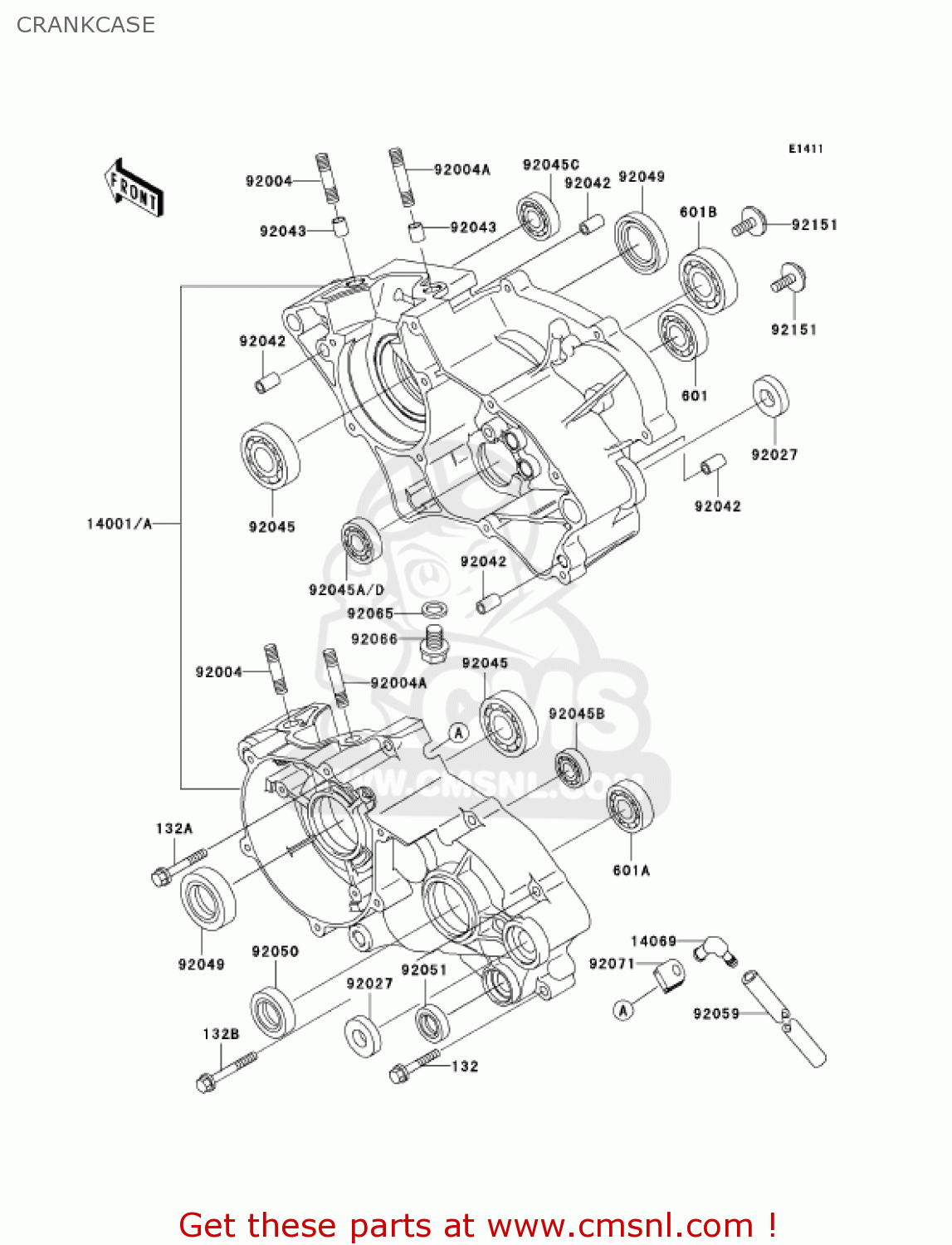

Crankcase diagram KX65-A4 KX65 2003 USA CANADA
CRANKCASE KX65-A4 KX65 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0635
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0640
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132G0655
ref: 132B
BOLT-FLANGED-SMALL
€ 2.00
601
601A6002
ref: 601
BEARING-BALL,#6002
€ 9.50
601A
601A6004
ref: 601A
BEARING-BALL,#6004
€ 13.00
601B
601A6203
ref: 601B
BEARING-BALL,#6203
€ 10.50
14001A
140011318
ref: 14001A
SET-CRANKCASE
€ 505.50
14069
14069002
ref: 14069
BREATHER
€ 17.50
92004
920041245
ref: 92004
STUD,8X30
€ 3.50
92004A
920041246
ref: 92004A
STUD
€ 3.00
92027
920271744
ref: 92027
COLLAR,12.1X26X6
€ 7.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431264
ref: 92043
PIN,DOWEL,8.2X10X14
€ 0.50
92045
920451059
ref: 92045
BEARING-BALL,R-6304C3
€ 29.00
92045B
920451235
ref: 92045B
BEARING-BALL,6001C3ML
€ 15.50
92045C
920451304
ref: 92045C
BEARING-BALL,626MC3
€ 11.00
92045D
920451432
ref: 92045D
BEARING-BALL,6805JRZ
€ 32.50
92049
920491188
ref: 92049
SEAL-OIL,SD20407GS
€ 12.00
92050
92050013
ref: 92050
OIL SEAL SC25376
€ 9.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92059
920591074
ref: 92059
TUBE,6X9X280
€ 9.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661437
ref: 92066
PLUG,DRAIN
€ 4.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
92151
921511762
ref: 92151
BOLT,6X16
€ 1.50
