Genuine KX Kawasaki Parts delivered quickly!


ENGINE COVER(S)

KX65-A4 KX65 2003 USA CANADA

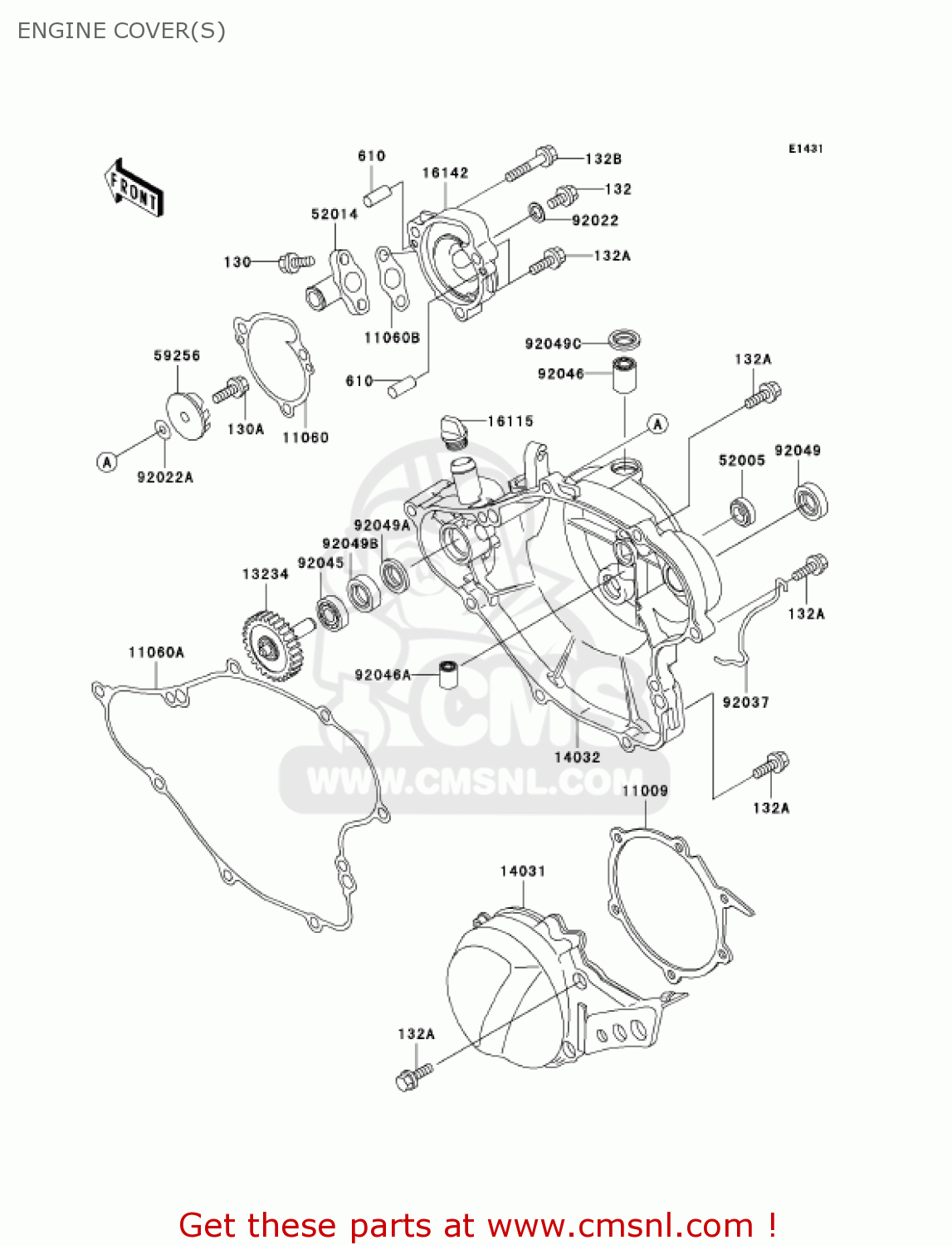

Engine cover(s) diagram KX65-A4 KX65 2003 USA CANADA

ENGINE COVER(S) KX65-A4 KX65 2003 USA CANADA
ENGINE COVER(S) KX65-A4 KX65 2003 USA CANADA
ENGINE COVER(S) KX65-A4 KX65 2003 USA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0516
ref: 130
BOLT-FLANGED
130G0516
€ 0.50
130A
130P0510
ref: 130A
BOLT-FLANGED
130P0510
€ 1.50
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
132G0608
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
132G0625
€ 3.00
132B
132G0660
ref: 132B
BOLT-FLANGED-SMALL
132G0660
€ 2.50
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
11009
110091974
ref: 11009
GASKET,GENERATOR COVE (NAS)
110091974
€ 13.00
11060
110601924
ref: 11060
GASKET,PUMP COVER (NAS)
110601924
€ 4.50
11060A
110601925
ref: 11060A
GASKET,CLUTCH COVER (NAS)
110601925
€ 12.00
11060B
110601927
ref: 11060B
GASKET,ELBOW (NAS)
110601927
€ 1.50
13234
132341110
ref: 13234
SHAFT-COMP,PUMP
132341110
€ 54.50
14031
140311215
ref: 14031
COVER-GENERATOR
€ 40.00
14032
140321501
ref: 14032
COVER-CLUTCH
€ 168.00
16115
16115018
ref: 16115
PLUG,OIL FILLER
16115018
€ 7.00
16142
161421158
ref: 16142
COVER-PUMP
161421158
€ 54.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
520051055
€ 10.50
52014
520141094
ref: 52014
ELBOW
520141094
€ 13.50
59256
592561064
ref: 59256
IMPELLER
592561064
€ 25.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92022A
920221380
ref: 92022A
WASHER,5.2X13X1
920221380
€ 2.50
92037
920371236
ref: 92037
CLAMP,TUBE
920371236
€ 7.00
92045
920451305
ref: 92045
BEARING-BALL,608MC3
920451305
€ 11.50
92046
920461160
ref: 92046
BEARING-NEEDLE,HK1010
920461160
€ 14.00
92046A
920461217
ref: 92046A
BEARING-NEEDLE,6BTM10
920461217
€ 18.00
92049
92049002
ref: 92049
OIL SEAL SB16244
92049002
€ 6.00
92049A
920491359
ref: 92049A
SEAL-OIL
920491359
€ 6.50
92049B
920491366
ref: 92049B
SEAL-OIL,MHSD8X18X10J
920491366
€ 12.50
92049C
920491414
ref: 92049C
SEAL-OIL
920491414
€ 3.50
