FRONT FORK
KX65-A4 KX65 2003 USA CANADA

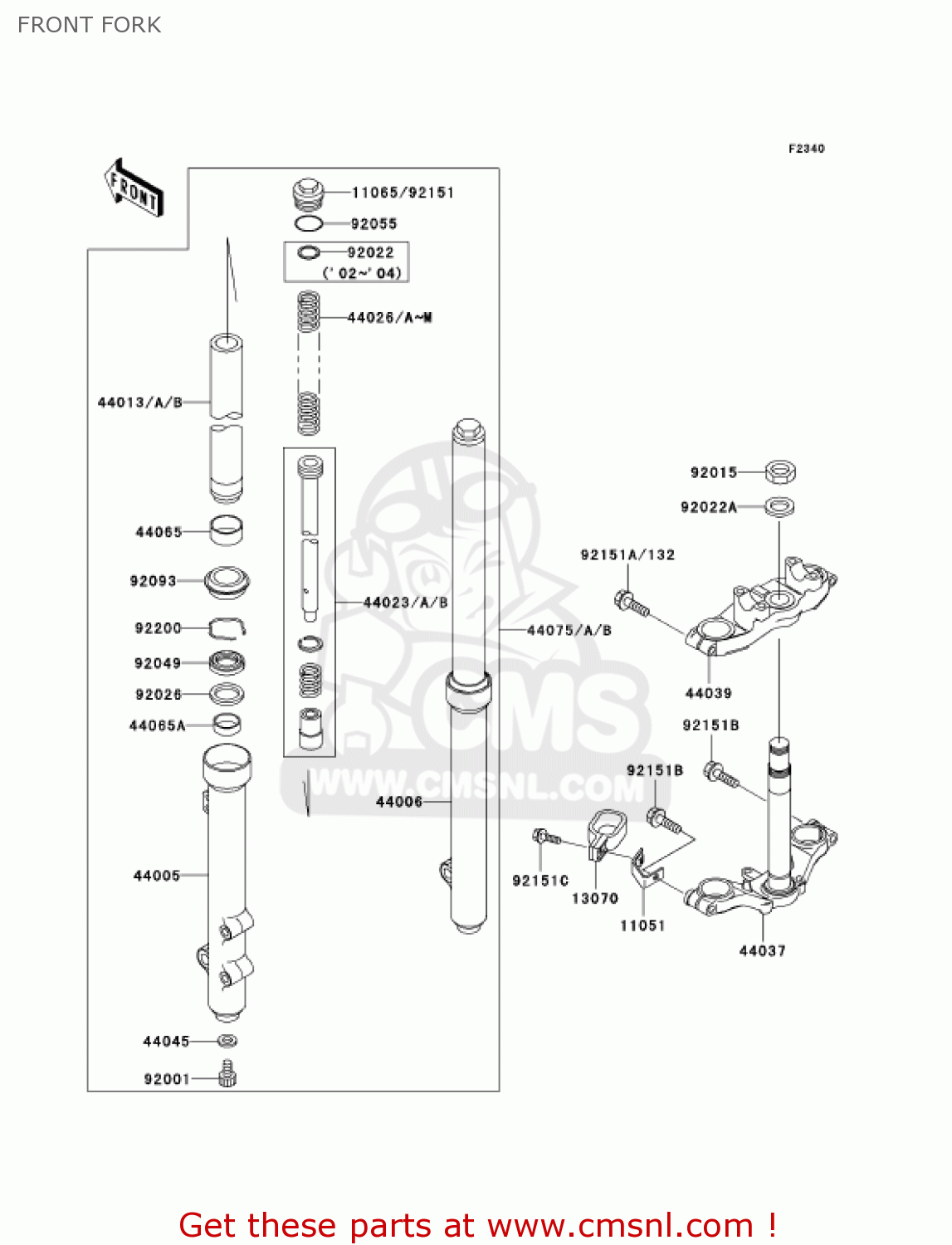

Front fork diagram KX65-A4 KX65 2003 USA CANADA
FRONT FORK KX65-A4 KX65 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11051
110511892
ref: 11051
BRACKET,BRAKE HOSE GU
€ 11.50
11065
110651225
ref: 11065
CAP,FORK TOP
€ 55.00
13070
130701349
ref: 13070
GUIDE
€ 7.50
44005
440051404
ref: 44005
PIPE-LEFT FORK OUTER
€ 196.50
44006
440061402
ref: 44006
PIPE-RIGHT FORK OUTER
€ 206.50
44013B
440131496
ref: 44013B
PIPE-FORK INNER
€ 128.00
44023B
440231161
ref: 44023B
CYLINDER-SET-FORK
€ 52.00
44026I
440261735
ref: 44026I
(OPTION)
SPRING-FRONT FORK,K=0
€ 34.50
44026J
440261736
ref: 44026J
SPRING-FRONT FORK,K=0
€ 34.50
44026K
440261737
ref: 44026K
(OPTION)
SPRING-FRONT FORK,K=0
€ 34.50
44026L
440261738
ref: 44026L
(OPTION)
SPRING-FRONT FORK,K=0
€ 34.50
44026M
440261739
ref: 44026M
(OPTION)
SPRING-FRONT FORK,K=0
€ 34.50
44037
440371397
ref: 44037
HOLDER-FORK UNDER
€ 205.00
44039
440391302
ref: 44039
HOLDER-FORK UPPER
€ 178.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44065
440651123
ref: 44065
BUSHING-FRONT FORK,IN
€ 12.50
44065A
440651133
ref: 44065A
BUSHING-FRONT FORK
€ 12.50
132
132G0835
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
44075B
440751158
ref: 44075B
DAMPER-SET-FORK
€ 600.00
92001
920011464
ref: 92001
BOLT
€ 4.00
92015
920151653
ref: 92015
NUT,STEERING STEM,22M
€ 11.50
92022
920221841
ref: 92022
WASHER,FORK SPRING
€ 7.00
92022A
920221873
ref: 92022A
WASHER
€ 5.00
92026
920261365
ref: 92026
SPACER
€ 6.50
92049
920491524
ref: 92049
SEAL-OIL,FORK OUTER T
€ 12.00
92055
920551367
ref: 92055
RING-O,FORK TOP
€ 3.00
92093
920931519
ref: 92093
SEAL,FORK OUTER TUBE
€ 12.50
92151B
921511636
ref: 92151B
BOLT
€ 7.50
92151C
921511637
ref: 92151C
BOLT
€ 2.50
92200
922001496
ref: 92200
WASHER
€ 3.50
