FRONT FORK(KX500-E4/E5)
KX500-E4 1992 EUROPE AS

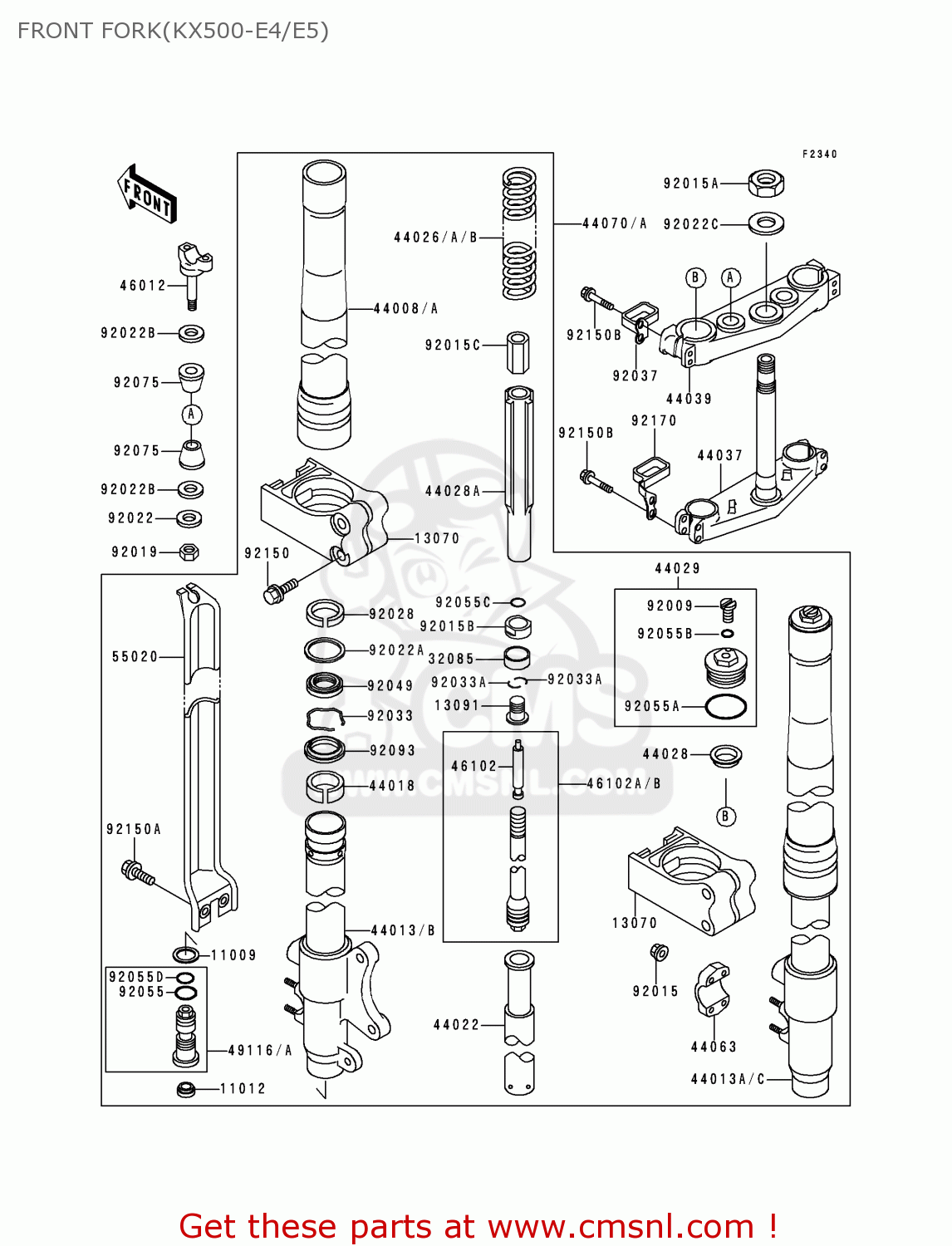

Front fork(kx500-e4/e5) diagram KX500-E4 1992 EUROPE AS
FRONT FORK(KX500-E4/E5) KX500-E4 1992 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
11009
110091791
ref: 11009
GASKET (NAS)
€ 2.50
11012
110121692
ref: 11012
CAP
€ 4.00
13070
130701204
ref: 13070
GUIDE,PROTECTOR
€ 15.50
13091
130911651
ref: 13091
HOLDER
€ 18.00
32085
320851323
ref: 32085
STOPPER
€ 10.50
44008
440081012
ref: 44008
AS
FORK INNER PIPE
€ 509.00
44008A
440081013
ref: 44008A
EU
PIPE-FORK OUTER
€ 654.00
44013
440131340
ref: 44013
AS
PIPE-FORK INNER,LH
€ 261.50
44013A
440131341
ref: 44013A
AS
PIPE-FORK INNER,RH
€ 275.00
44013B
440131342
ref: 44013B
EU
PIPE-FORK INNER,LH
€ 261.50
44013C
440131343
ref: 44013C
EU
PIPE-FORK INNER,RH
€ 197.00
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221264
ref: 44022
CYLINDER-FORK
€ 160.50
44026
440261486
ref: 44026
SPRING-FRONT FORK
€ 57.50
44026A
440261489
ref: 44026A
SPRING-FRONT FORK
€ 40.50
44026B
440261491
ref: 44026B
SPRING-FRONT FORK
€ 64.50
44028
440281081
ref: 44028
GUIDE-FORK SPRING
€ 8.50
44028A
440281087
ref: 44028A
GUIDE-FORK SPRING
€ 42.00
44029
440291148
ref: 44029
SEAT-FORK SPRING
€ 77.50
44037
440371280
ref: 44037
HOLDER-FORK UNDER
€ 429.50
44039
440391212
ref: 44039
HOLDER-FORK UPPER
€ 197.50
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
€ 41.50
44070
440705129
ref: 44070
AS
DAMPER ASSEMBLY
€ 1,095.50
44070A
440705130
ref: 44070A
EU
DAMPER-ASSY
€ 1,441.00
46012
460121192
ref: 46012
HOLDER-HANDLE,LWR
€ 25.00
46102
461021303
ref: 46102
ROD,FORK
€ 17.50
46102A
461021307
ref: 46102A
AS
ROD,FORK
€ 373.00
46102B
461021308
ref: 46102B
EU
ROD,FORK
€ 373.00
49116
491161093
ref: 49116
AS
FORK VALVE ASSEMBLY
€ 88.00
49116A
491161094
ref: 49116A
EU
VALVE-ASSY,FORK
€ 100.50
55020
550201384
ref: 55020
GUARD,FORK
€ 32.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92015B
920151805
ref: 92015B
NUT
€ 14.50
92015C
920151872
ref: 92015C
NUT
€ 18.00
92019
92019021
ref: 92019
NUT,LOCK,10M/M
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221299
ref: 92022A
WASHER
€ 5.50
92022B
920221737
ref: 92022B
WASHER
€ 3.50
92022C
920221873
ref: 92022C
WASHER
€ 5.00
92028
920281581
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92033A
920331271
ref: 92033A
RING-SNAP
€ 3.50
92037
920371627
ref: 92037
CLAMP
€ 19.50
92049
920491373
ref: 92049
SEAL-OIL
€ 19.00
92055
920551062
ref: 92055
RING-O,FORK TOP CAP
€ 3.00
92055A
920551333
ref: 92055A
RING-O,FORK,AIR TUBE
€ 3.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551442
ref: 92055C
RING-O
€ 4.50
92055D
920551513
ref: 92055D
RING-O,FORK VALVE
€ 2.00
92075
920751776
ref: 92075
DAMPER
€ 5.00
92093
920931315
ref: 92093
SEAL,FORK OUTER TUBE
€ 12.50
92150
921501270
ref: 92150
BOLT,5X35
€ 3.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501516
ref: 92150B
BOLT, FLANGED 8X40
€ 9.50
92170
921701088
ref: 92170
CLAMP
€ 19.50
