BRAKE PEDAL

KX500-E4 1992 EUROPE AS

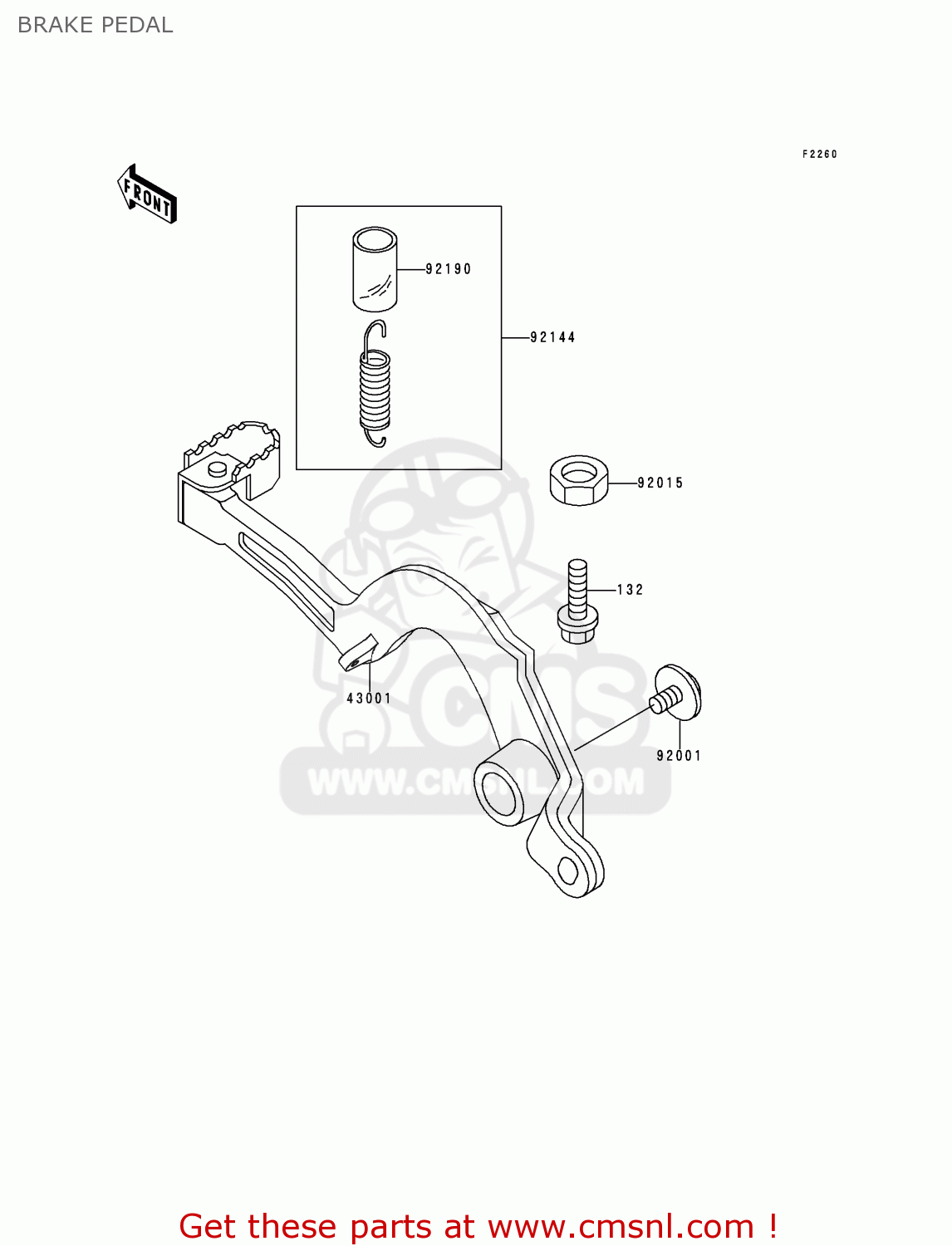

Brake pedal diagram KX500-E4 1992 EUROPE AS

BRAKE PEDAL KX500-E4 1992 EUROPE AS

BRAKE PEDAL KX500-E4 1992 EUROPE AS

prices are in EUR

ref

part #

description

quantity

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

43001

430011239
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.00

92001

920011034
ref: 92001

BOLT,HEX HEAD,6X10

€ 7.00

92015

920151391
ref: 92015

NUT,6MM

€ 2.00

92144

921441752
ref: 92144

SPRING,BRAKE PEDAL RE

€ 4.50

92190

921901488
ref: 92190

TUBE,13X16X25

€ 2.00
