FRONT BRAKE(KX500-E4/E5)

KX500-E4 1992 EUROPE AS

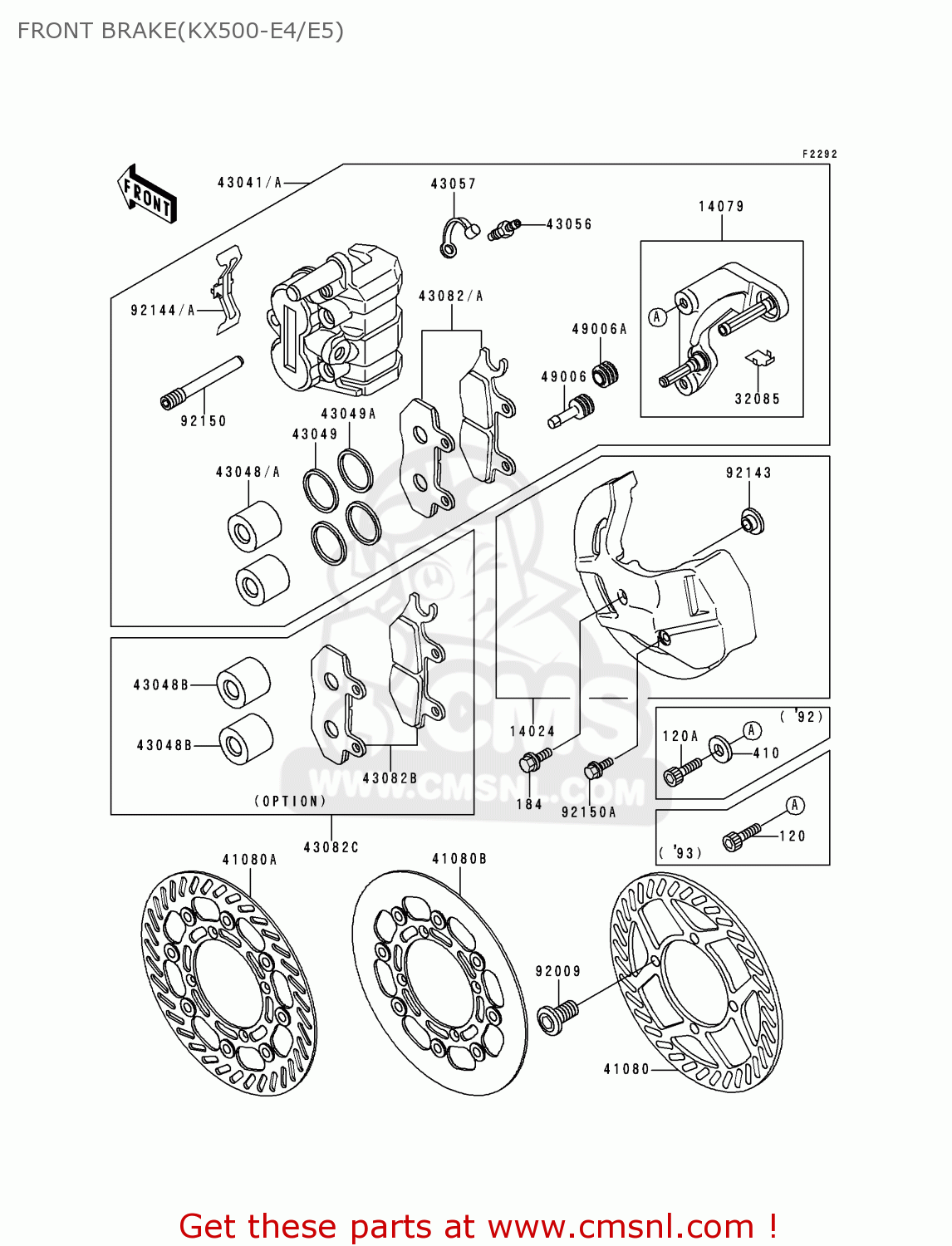

Front brake(kx500-e4/e5) diagram KX500-E4 1992 EUROPE AS

FRONT BRAKE(KX500-E4/E5) KX500-E4 1992 EUROPE AS
FRONT BRAKE(KX500-E4/E5) KX500-E4 1992 EUROPE AS
FRONT BRAKE(KX500-E4/E5) KX500-E4 1992 EUROPE AS
prices are in EUR
ref
part #
description
quantity
120A
120P0840
ref: 120A
BOLT-SOCKET,8X40
120P0840
€ 2.00
184
184B0812
ref: 184
BOLT-UPSET-WP-SMALL
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
14024
1402418596F
ref: 14024
COVER,DISK,P.WHITE
1402418596F
€ 47.50
14079
140791088
ref: 14079
HOLDER-ASSY,FRONT CAL
140791088
€ 95.50
32085
320851314
ref: 32085
STOPPER,PAD
320851314
€ 4.50
41080
410801293
ref: 41080
DISC,FR
410801293
€ 171.00
43041
430411427
ref: 43041
CALIPER-ASSY,FR,LH
430411427
€ 554.00
43048
430481057
ref: 43048
PISTON-CALIPER
430481057
€ 40.50
43048B
430481064
ref: 43048B
PISTON-CALIPER
430481064
€ 49.00
43049
430491060
ref: 43049
PACKING,PISTON SEAL (NAS)
430491060
€ 13.00
43049A
430491061
ref: 43049A
PACKING,PISTON SEAL (NAS)
430491061
€ 7.00
43056
430561055
ref: 43056
BREATHER-BRAKE
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43082
430821089
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821089
€ 50.00
43082B
430821117
ref: 43082B
PAD-ASSY-BRAKE (NAS)
430821117
€ 50.00
43082C
430821129
ref: 43082C
PAD-ASSY-BRAKE
€ 50.00
49006
490061088
ref: 49006
BOOT,CALIPER
490061088
€ 7.50
49006A
490061242
ref: 49006A
BOOT
490061242
€ 3.50
92009
920091546
ref: 92009
SCREW,6X14.5
920091546
€ 3.00
92143
921431196
ref: 92143
COLLAR
921431196
€ 3.00
92144
921441319
ref: 92144
SPRING,PAD
921441319
€ 3.50
92150
921501144
ref: 92150
BOLT
921501144
€ 6.50
92150A
921501340
ref: 92150A
BOLT,6X14
921501340
€ 3.00
