FRAME

KX500-E4 1992 EUROPE AS

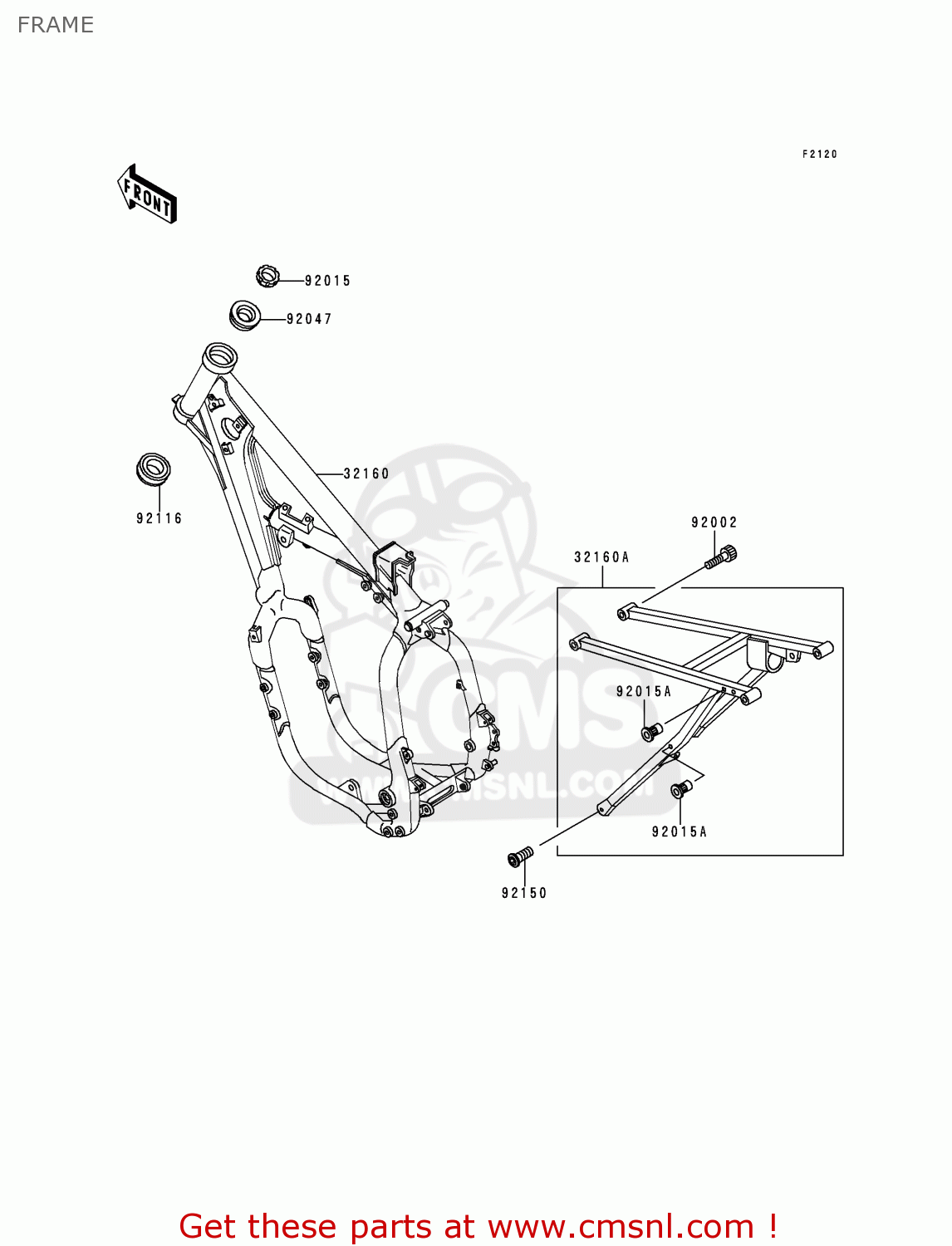

Frame diagram KX500-E4 1992 EUROPE AS

FRAME KX500-E4 1992 EUROPE AS

FRAME KX500-E4 1992 EUROPE AS

prices are in EUR

ref

part #

description

quantity

32160

321601095
ref: 32160

FRAME-COMP,FR

€ 1,215.00

32160A

321601170
ref: 32160A

FRAME-COMP,AL,RR

€ 344.50

92002

920021713
ref: 92002

BOLT,SOCKET,10X17

€ 4.50

92015

920151684
ref: 92015

NUT,STEERING STEM,25M

€ 15.50

92015A

920151792
ref: 92015A

NUT,POP,6MM,L=16.5

€ 3.00

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92116

921161008
ref: 92116

BEARING-ROLLER,LWR,32

€ 78.00

92150

921501266
ref: 92150

BOLT

€ 5.50
