GEAR CHANGE MECHANISM

KX500-C1 1987 EUROPE UK AL

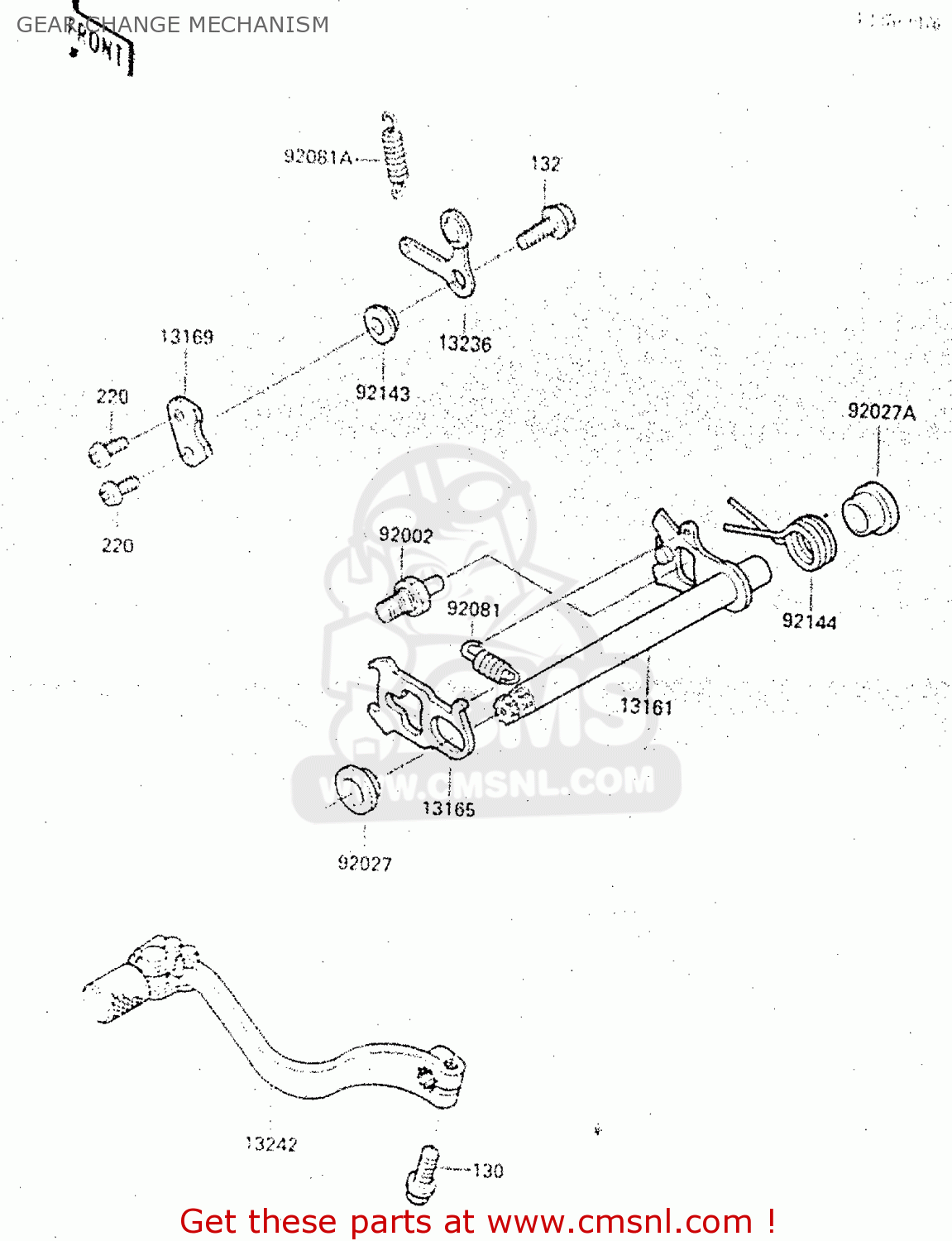

Gear change mechanism diagram KX500-C1 1987 EUROPE UK AL

prices are in EUR

ref

part #

description

quantity

13161

131611144
ref: 13161

LEVER-COMP-CHANGE SHA

€ 35.00

13165

131651122
ref: 13165

PAWL,CHANGE LEVER

€ 9.50

13169

13169012
ref: 13169

PLATE,CHANGE DRAM

€ 11.50

13236

132361155
ref: 13236

LEVER-COMP,POSITION

€ 8.00

13242

132421226
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 46.00

92002

920021601
ref: 92002

BOLT,8X15

€ 5.00

92027

920271512
ref: 92027

COLLAR,CHANGE SHAFT,L

€ 8.00

92027A

920271946
ref: 92027A

COLLAR

€ 4.00

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92081A

92083012
ref: 92081A

SPRING,CHNG DRUM LEV

€ 3.00

92143

921431055
ref: 92143

COLLAR

€ 4.50

92144

921441142
ref: 92144

SPRING,CHANGE SHAFT R

€ 9.50

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00
