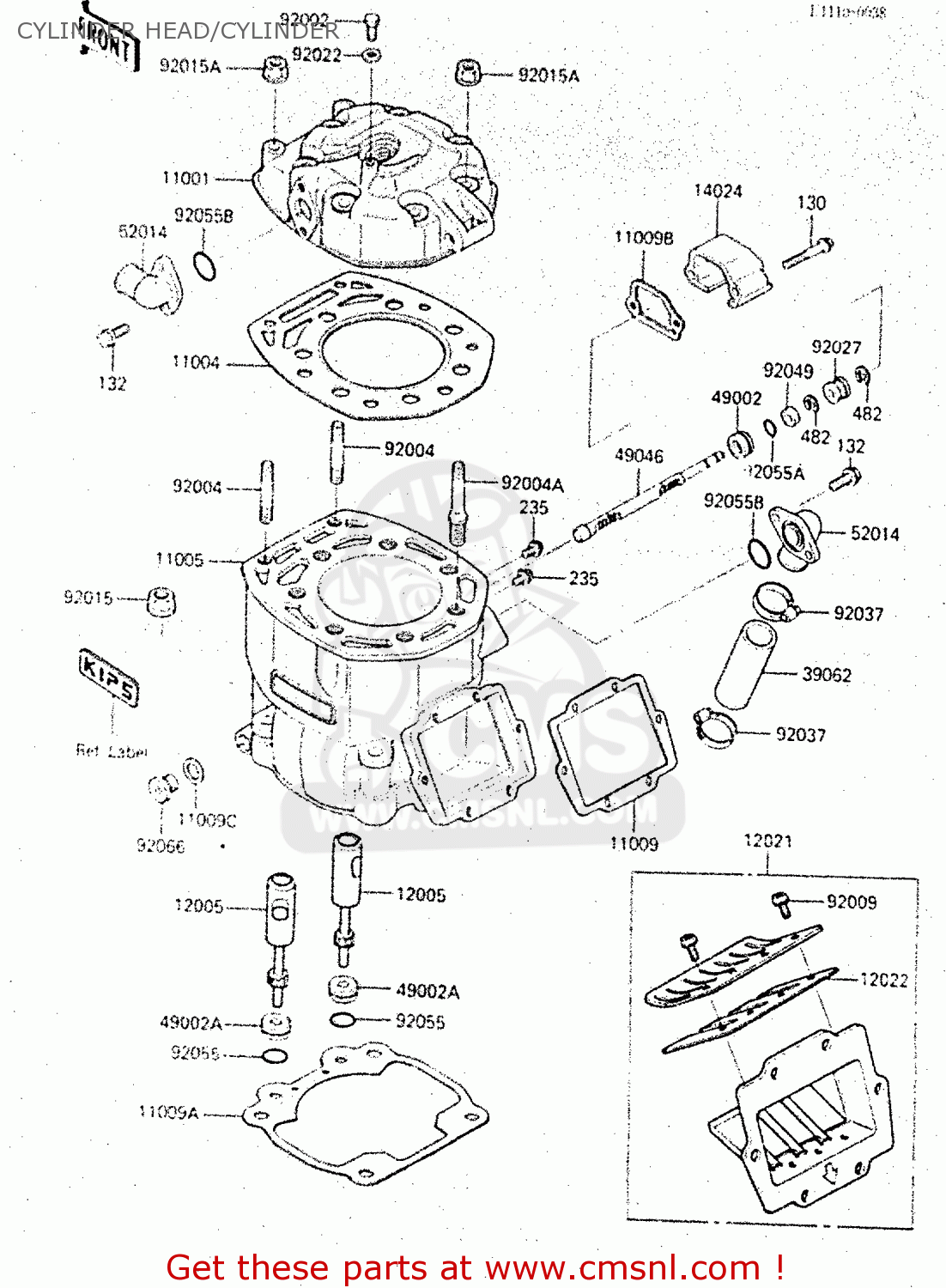

CYLINDER HEAD/CYLINDER

ref

part #

description

quantity

11001

110011253
ref: 11001

HEAD-CYLINDER

€ 151.00

11004

110041156
ref: 11004

GASKET-HEAD (MCA)

€ 30.50

11005

110051510
ref: 11005

CYLINDER-ENGINE

€ 799.00

11009

110091252
ref: 11009

GASKET,REED VALVE (MCA)

€ 7.50

11009A

110091537
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 8.50

11009B

110091539
ref: 11009B

GASKET,GOVERNOR COVER

€ 3.50

11009C

92065073
ref: 11009C

GASKET,12.5X18X1,DRAI (NAS)

€ 2.50

12005

120051080
ref: 12005

VALVE-EXHAUST

€ 51.00

12021

120211066
ref: 12021

VALVE-ASSY-REED

€ 93.00

12022

120221017
ref: 12022

VALVE-REED

€ 19.50

14024

140241123
ref: 14024

COVER,GOVERNOR

€ 5.50

39062

390621137
ref: 39062

HOSE-COOLING,19X25X75

€ 17.00

49002

490021062
ref: 49002

GUIDE-VALVE,ROD

€ 11.50

49002A

490021072
ref: 49002A

GUIDE-VALVE

€ 11.50

49046

490461057
ref: 49046

ROD-GOVERNOR

€ 46.50

52014

520141004
ref: 52014

ELBOW,CYLINDER

€ 25.50

92002

920021222
ref: 92002

BOLT,6X10

€ 5.50

92004

920041009
ref: 92004

STUD, 8X35

€ 4.00

92004A

920041022
ref: 92004A

STUD,CYLINDER

€ 4.50

92009

920091371
ref: 92009

SCREW,3X6

€ 2.50

92015

92015077
ref: 92015

NUT, 10MM

€ 3.00

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92027

920271834
ref: 92027

COLLAR,GOVERNOR ROD

€ 11.50

92037

920371589
ref: 92037

CLAMP,COOLING HOSE

€ 13.00

92049

920491206
ref: 92049

SEAL-OIL,RSO-5.5 11 4

€ 7.50

92055

92055022
ref: 92055

'O' RING

€ 4.00

92055A

92055025
ref: 92055A

'O' RING

€ 3.00

92055B

92055055
ref: 92055B

'0'RING

€ 2.50

92066

920661222
ref: 92066

PLUG,12X10

€ 8.00

130

130G0535
ref: 130

BOLT-FLANGED

€ 2.50

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

235

235B0510
ref: 235

SCREW-PAN-WP-CROS

€ 2.50

482

482K4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50
