FRAME FITTING
KX500-C1 1987 EUROPE UK AL

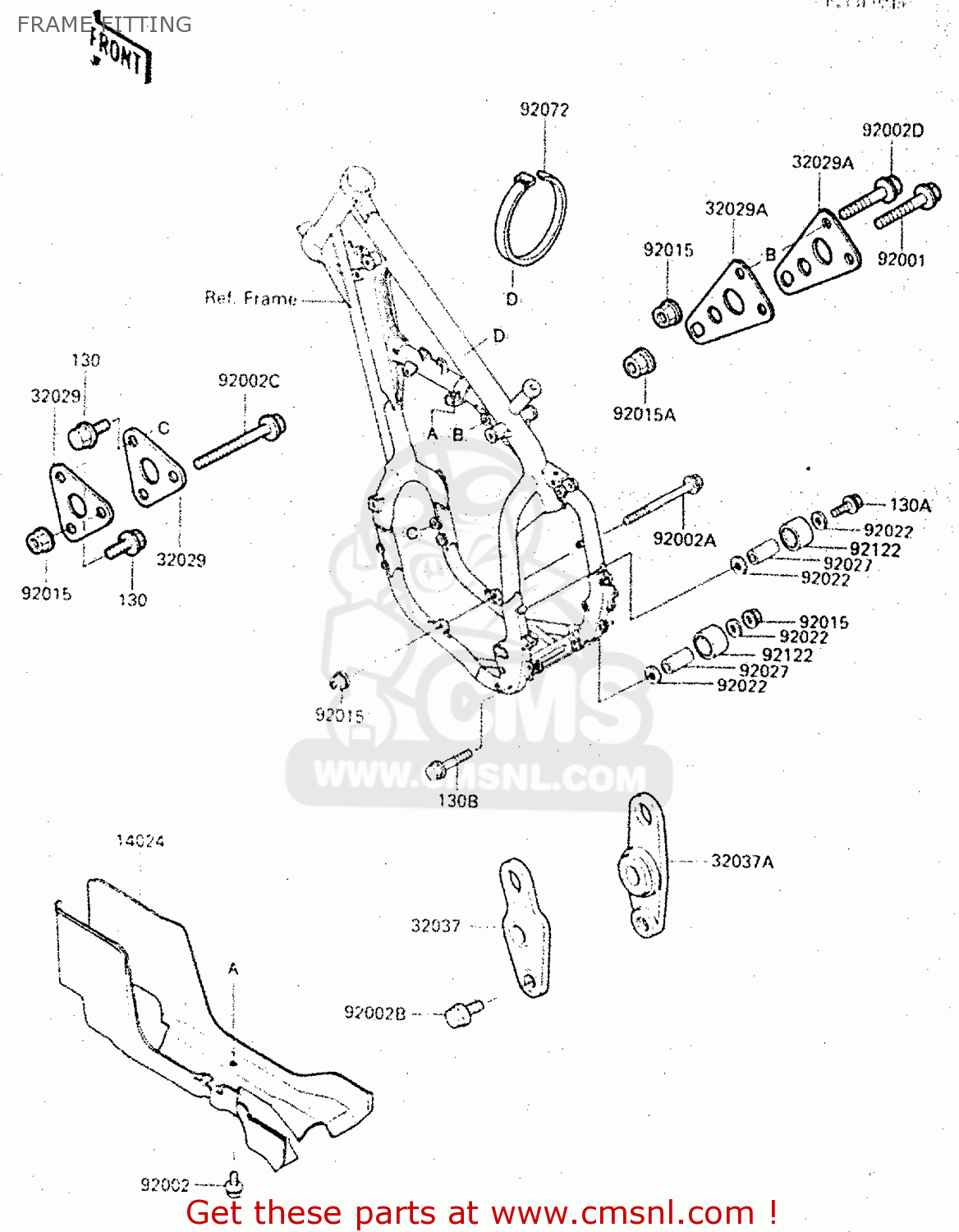

Frame fitting diagram KX500-C1 1987 EUROPE UK AL
FRAME FITTING KX500-C1 1987 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
14024
140241360
ref: 14024
COVER,AIR FILTER DUCT
€ 14.50
32029
320291506
ref: 32029
BRACKET-ENGINE
€ 22.00
32029A
320291509
ref: 32029A
BRACKET-ENGINE
€ 18.50
32037
320371420
ref: 32037
BRACKET-SHOCKABSORBER
€ 21.00
32037A
320371421
ref: 32037A
BRACKET-SHOCKABSORBER
€ 30.50
92001
920011584
ref: 92001
BOLT,10X50
€ 2.50
92002
920021460
ref: 92002
BOLT,6X14
€ 3.00
92002A
920021543
ref: 92002A
BOLT
€ 6.00
92002B
920021845
ref: 92002B
BOLT,FLANGED,12X21
€ 5.00
92002C
920021849
ref: 92002C
BOLT,FLANGED,8X90
€ 4.50
92002D
920021850
ref: 92002D
BOLT,FLANGED,8X47
€ 3.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151415
ref: 92015A
NUT,10MM
€ 3.00
92022
920221629
ref: 92022
WASHER,8.5X22X1.5
€ 4.00
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92072
92072032
ref: 92072
BAND,LONG
€ 3.00
92122
921221144
ref: 92122
ROLLER,CHAIN GUIDE
€ 19.50
130
130G0825
ref: 130
BOLT,FLANGED,8X25
€ 0.50
130A
130G0840
ref: 130A
BOLT-FLANGED,8X40
€ 1.00
130B
130G0870
ref: 130B
BOLT-FLANGED,8X70
€ 1.50
