CRANKSHAFT/PISTON
KX500-C1 1987 EUROPE UK AL

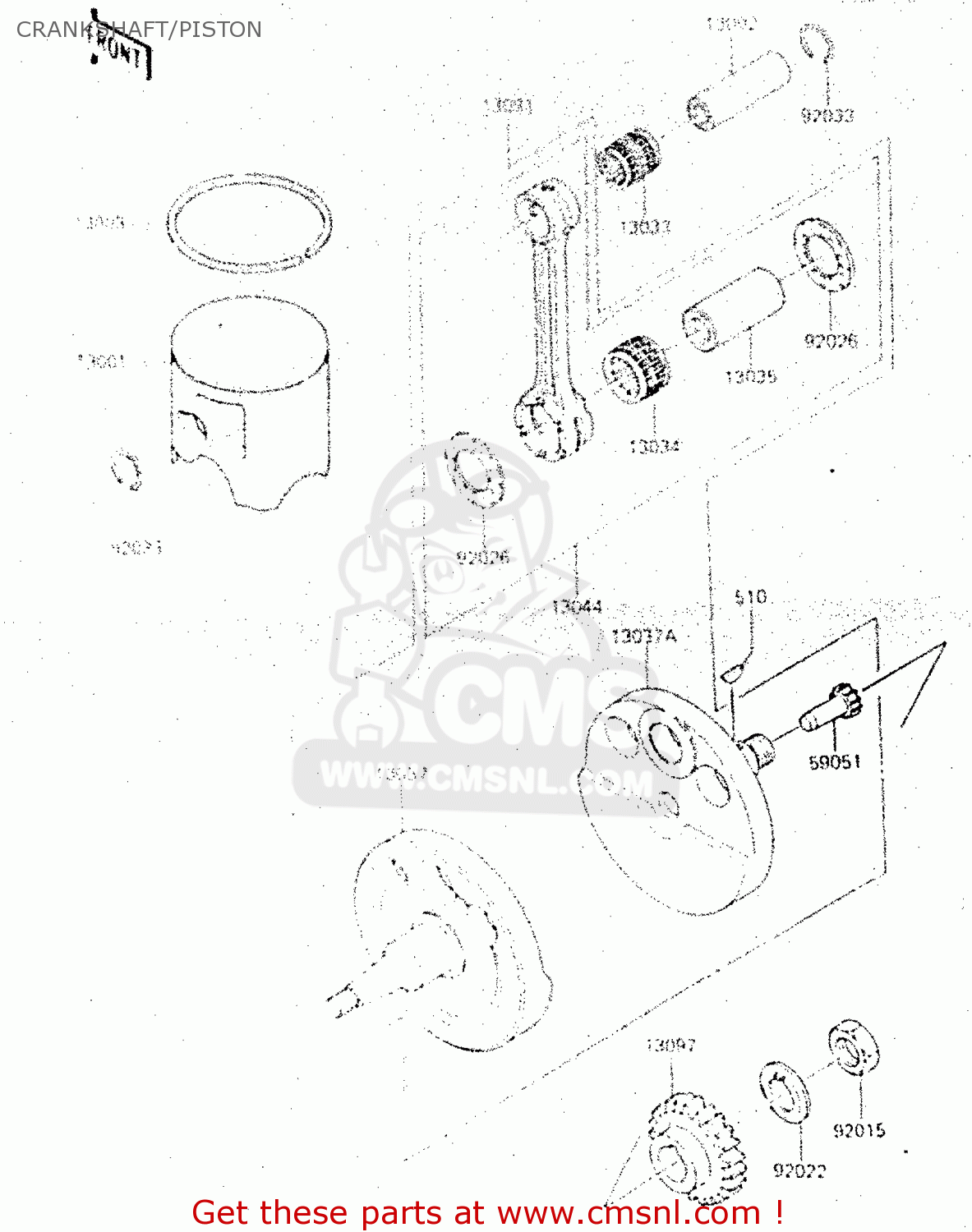

Crankshaft/piston diagram KX500-C1 1987 EUROPE UK AL
CRANKSHAFT/PISTON KX500-C1 1987 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
13001
130011245
ref: 13001
PISTON-ENGINE
€ 96.00
13002
130021067
ref: 13002
PIN-PISTON
€ 21.50
13003
130031253
ref: 13003
RING-PISTON TOP
€ 34.00
13031
130311231
ref: 13031
CRANKSHAFT-COMP
€ 611.00
13033
13033031
ref: 13033
BEARING,KTV19242.5
€ 26.00
13034
130341051
ref: 13034
BEARING-BIG END
€ 62.00
13035
130351008
ref: 13035
PIN-CRANK
€ 50.50
13037
130371290
ref: 13037
CRANKSHAFT,LH
€ 330.00
13037A
130371291
ref: 13037A
CRANKSHAFT,RH
€ 229.50
13044
130445048
ref: 13044
SET-CONNECTING ROD
€ 134.50
13097
130971154
ref: 13097
GEAR-PRIMARY SPUR,26T
€ 67.50
59051
590511128
ref: 59051
GEAR-SPUR,WATER PUMP,
€ 27.50
92015
92015019
ref: 92015
NUT,18MM
€ 4.00
92022
920221378
ref: 92022
WASHER,CLAW,18MM
€ 6.00
92026
92026093
ref: 92026
WASHER
€ 17.50
92033
92036008
ref: 92033
CIRCLIP-PISTON PIN
€ 0.50
510
510A5100
ref: 510
KEY-WOODRUFF
€ 1.50
