KICKSTARTER MECHANISM
KX500-B2 1986 EUROPE UK AL

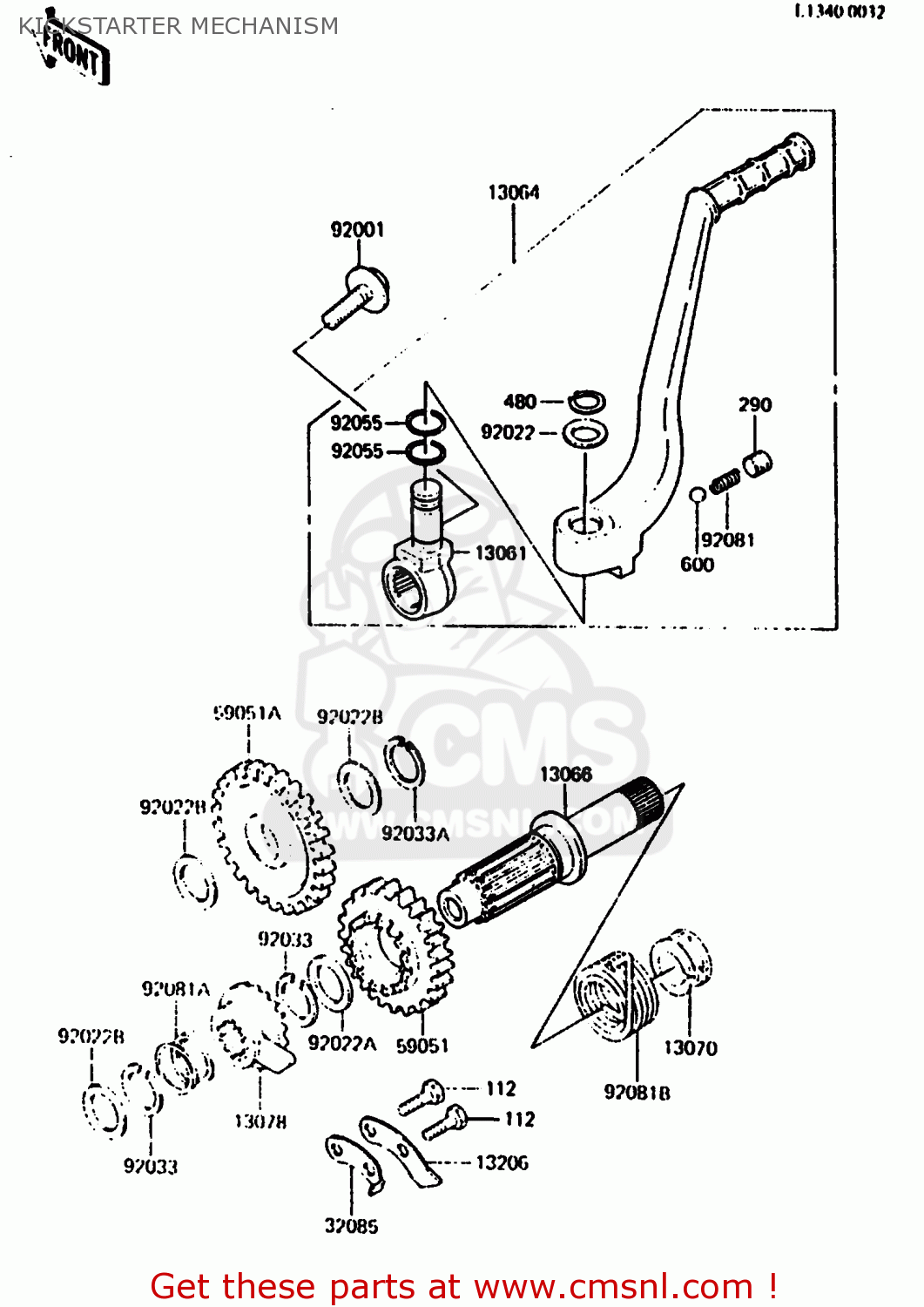

Kickstarter mechanism diagram KX500-B2 1986 EUROPE UK AL
KICKSTARTER MECHANISM KX500-B2 1986 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
13061
130611139
ref: 13061
BOSS,KICK PEDAL
€ 54.00
13064
130641118
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 140.00
13066
130661056
ref: 13066
SHAFT-KICK
€ 95.50
13070
13070011
ref: 13070
GUIDE,KICKSTARTER SPR
€ 6.50
13078
13078007
ref: 13078
RATCHET
€ 50.00
13206
132061003
ref: 13206
GUIDE-KICK
€ 7.00
32085
13072014
ref: 32085
STOPPER,KICKSTARTER
€ 6.50
59051
590511149
ref: 59051
GEAR-SPUR,KICKSTARTER
€ 114.00
59051A
590511150
ref: 59051A
GEAR-SPUR,IDLE,26T
€ 90.50
92001
920011171
ref: 92001
BOLT,HEX HEAD,6X12
€ 2.00
92022
920221205
ref: 92022
WASHER,16.3X24X1
€ 2.50
92022A
92022159
ref: 92022A
WASHER-THRUST,25MM
€ 5.50
92022B
92022252
ref: 92022B
WASHER
€ 4.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92055
92055061
ref: 92055
RING-O,10X1.5
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081097
ref: 92081A
SPRING
€ 7.50
92081B
92082003
ref: 92081B
SPRING-KICKSTARTER
€ 19.00
112
112G0618
ref: 112
BOLT-UPSET
€ 0.50
290
290P0816
ref: 290
SCREW-SET-SOCKET
€ 2.50
680
480J1500
ref: 680
CIRCLIP-TYPE-C,15MM
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
