CLUTCH
KX500-B2 1986 EUROPE UK AL

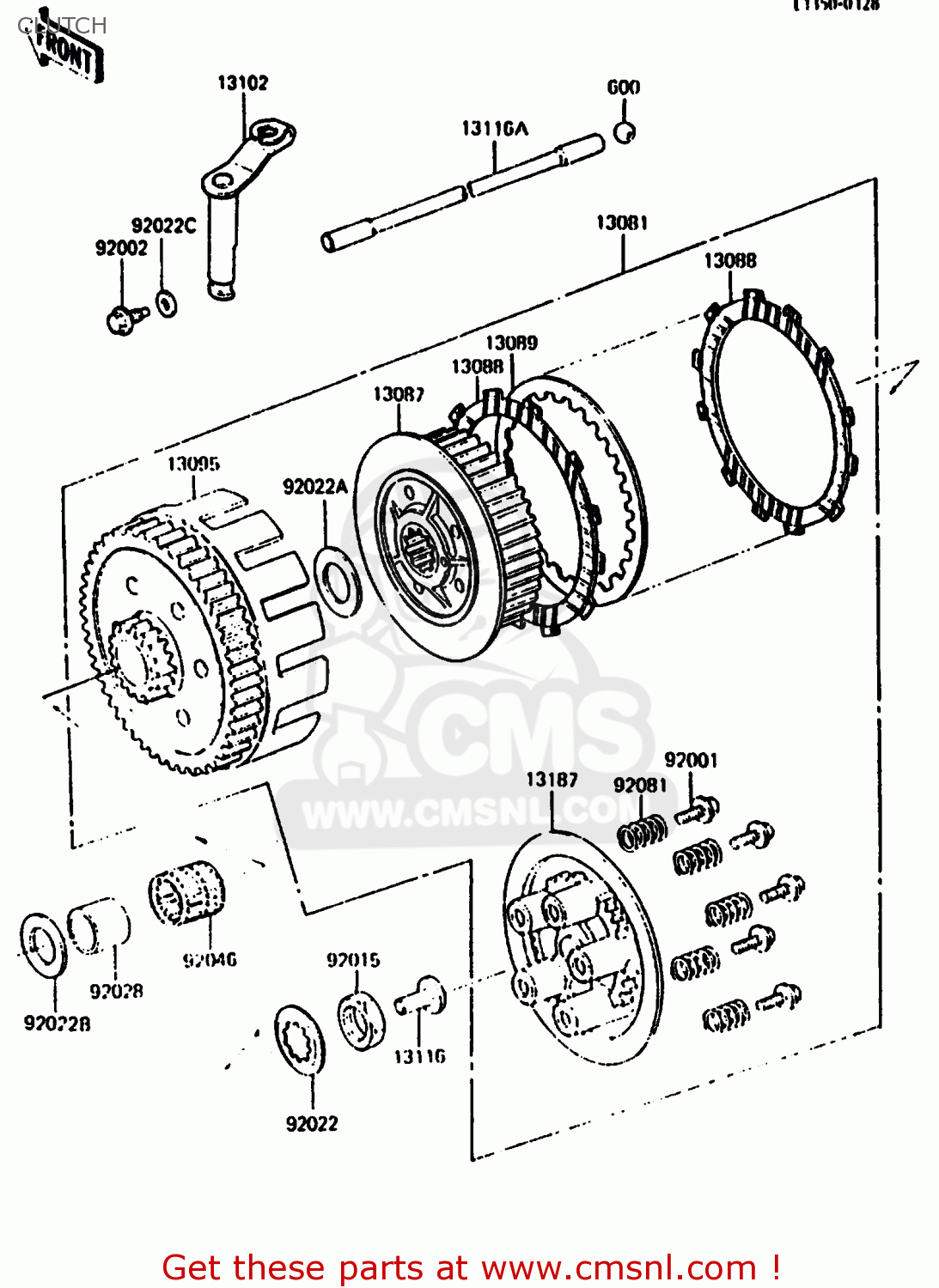

Clutch diagram KX500-B2 1986 EUROPE UK AL
CLUTCH KX500-B2 1986 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
13081
130811215
ref: 13081
CLUTCH-ASSY
€ 527.50
13087
130871074
ref: 13087
HUB-CLUTCH
€ 79.00
13088
130881064
ref: 13088
PLATE-FRICTION (MCA)
€ 14.00
13089
130891010
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 7.50
13095
130951137
ref: 13095
HOUSING-COMP-CLUTCH
€ 230.50
13102
131021078
ref: 13102
RELEASE-COMP-CLUTCH
€ 35.50
13116
131161010
ref: 13116
ROD-PUSH,CLUTCH
€ 12.50
13116A
131161117
ref: 13116A
ROD-PUSH,L=167
€ 9.00
13187
131871011
ref: 13187
PLATE-CLUTCH OPERATIN
€ 52.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92002
920021357
ref: 92002
BOLT
€ 3.00
92016
92016028
ref: 92016
NUT
€ 9.50
92022
920221738
ref: 92022
WASHER,LOCK
€ 2.50
92022A
920221739
ref: 92022A
WASHER,22.5X46X2.6
€ 7.50
92022B
920221740
ref: 92022B
WASHER,22.3X38X1.4
€ 2.00
92022C
92022304
ref: 92022C
WASHER,PLAIN
€ 2.50
92028
920281385
ref: 92028
BUSHING,22X28X27.5
€ 17.50
92048
920461149
ref: 92048
BEARING-NEEDLE,28R322
€ 21.00
92081
920811176
ref: 92081
SPRING,CLUTCH
€ 6.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
