CRANKCASE
KX500-B2 1986 EUROPE UK AL

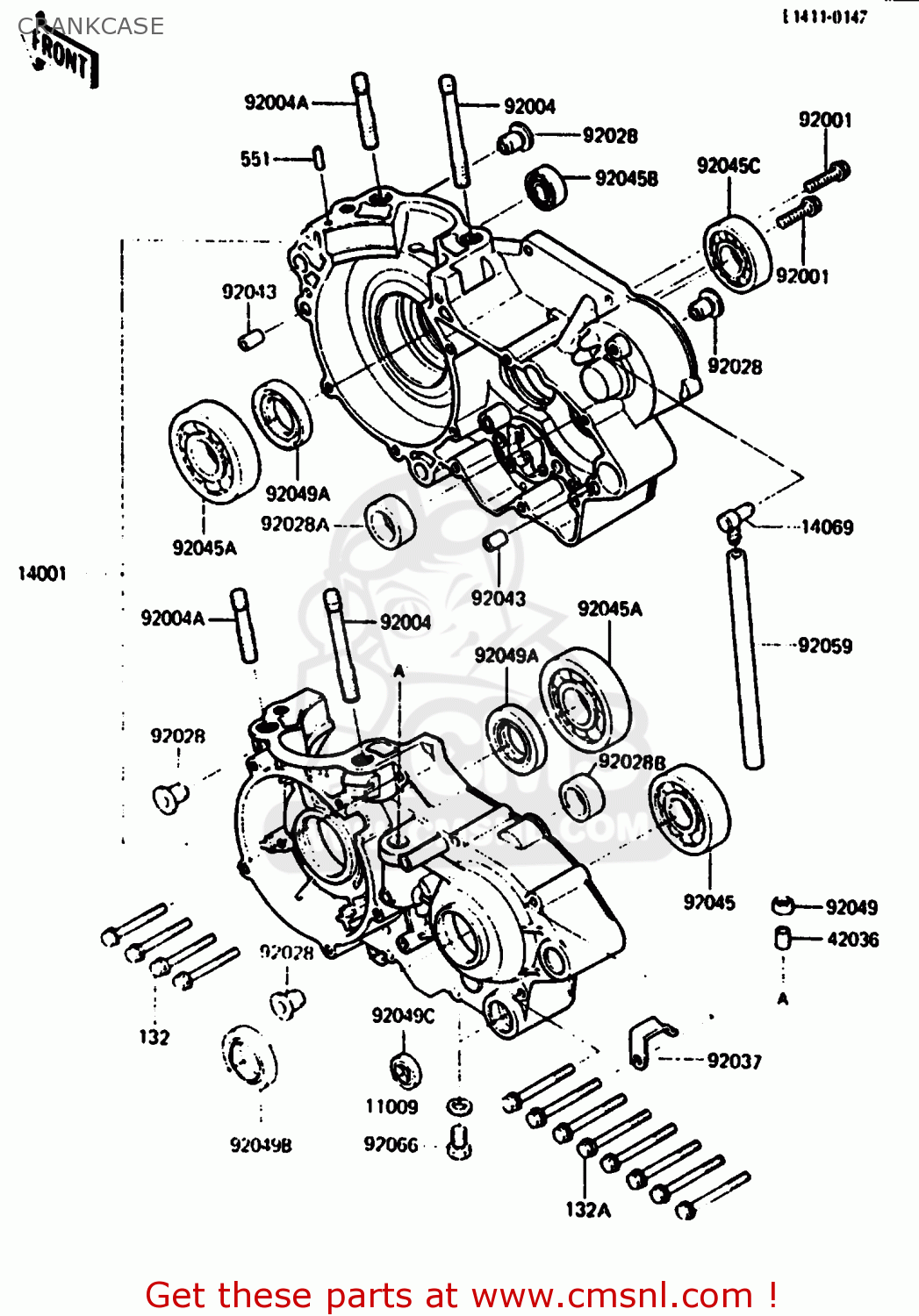

Crankcase diagram KX500-B2 1986 EUROPE UK AL
CRANKCASE KX500-B2 1986 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
14001
140015207
ref: 14001
SET-CRANKCASE
€ 534.50
16069
16069003
ref: 16069
COVER,DIAPHRAGM
€ 9.50
42036
420361177
ref: 42036
SLEEVE,12X14X20
€ 12.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92004
920041052
ref: 92004
STUD,10X67
€ 9.50
92004A
920041160
ref: 92004A
STUD,10X45
€ 8.50
92028
920281133
ref: 92028
BUSHING
€ 9.50
92028A
92028131
ref: 92028A
BUSHING
€ 28.00
92028B
92028132
ref: 92028B
BUSHING
€ 28.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92045
920451011
ref: 92045
BEARING-BALL,#6305
€ 33.50
92045A
920451027
ref: 92045A
BEARING-BALL,6306SH2,
€ 60.50
92045B
920451048
ref: 92045B
BEARING-BALL,#608
€ 11.50
92045C
920451134
ref: 92045C
BEARING-BALL,63/22T2C
€ 36.00
92049
92049004
ref: 92049
OIL SEAL SB12205
€ 6.00
92049A
92050057
ref: 92049A
OIL SEAL,L.H CRNKCASE
€ 14.50
92049B
92050083
ref: 92049B
OIL SEAL,OUTPUT SHAFT
€ 8.00
92049C
92051005A
ref: 92049C
OIL SEAL,TB13225.5
€ 5.50
92059
92059061
ref: 92059
PIPE-BREATHER
€ 3.00
92066
920661241
ref: 92066
PLUG
€ 4.00
132
132G0650
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132G0660
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
551
551A0412
ref: 551
PIN-DOWEL
€ 2.50
