FRONT FORK
KX500-A2 1984 UNITED KINGDOM AL

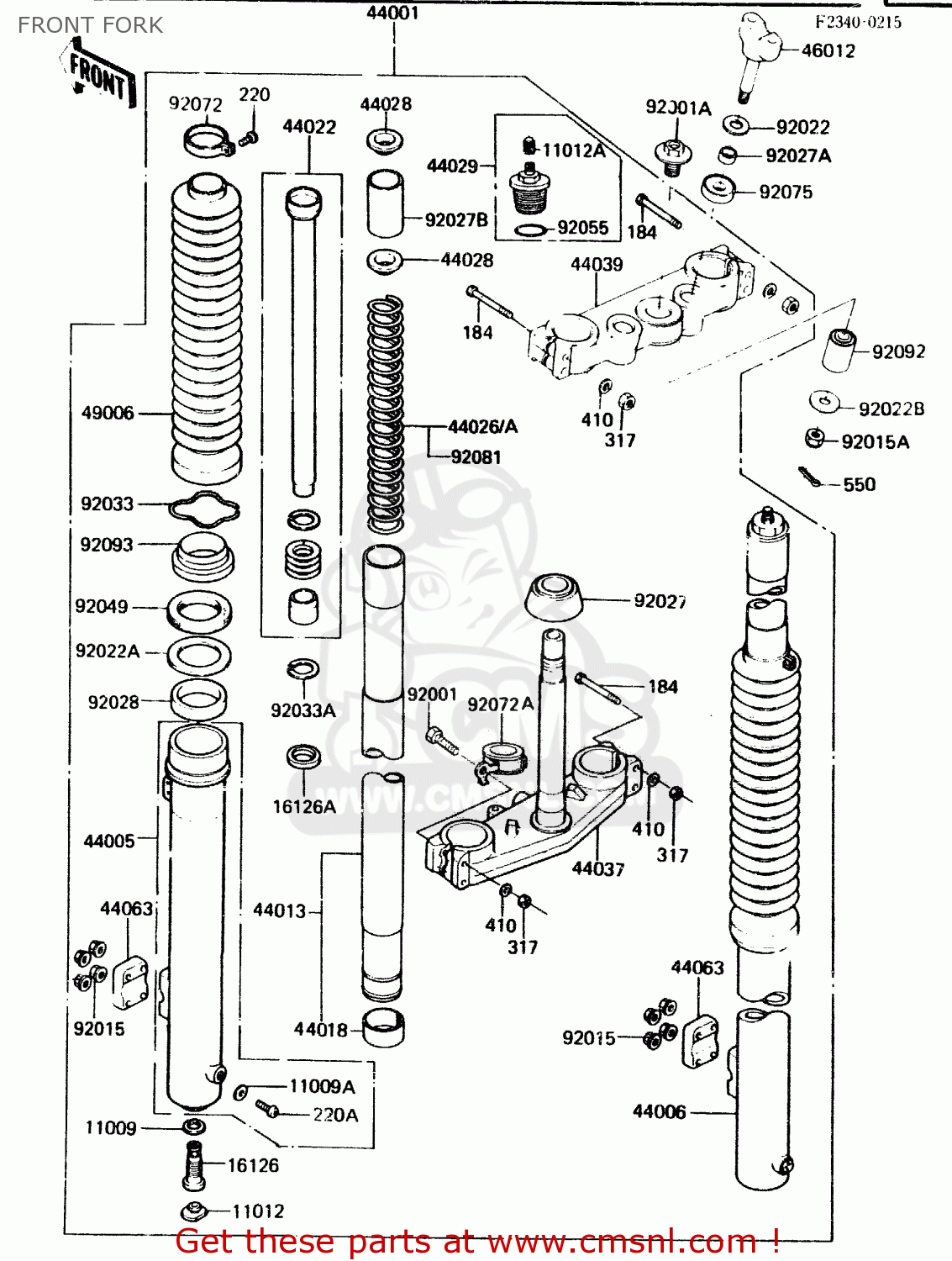

Front fork diagram KX500-A2 1984 UNITED KINGDOM AL
FRONT FORK KX500-A2 1984 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091324
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 3.50
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
11012A
110121391
ref: 11012A
CAP,VALVE AIR
€ 3.50
16126
161261107
ref: 16126
VALVE,FORK CYLINDER
€ 55.50
16126A
161261120
ref: 16126A
VALVE,FORK CYLINDER
€ 14.00
44001
440011505
ref: 44001
FORK-FRONT
€ 1,148.50
44005
440051212
ref: 44005
PIPE-LEFT FORK OUTER
€ 270.50
44006
440061207
ref: 44006
PIPE-RIGHT FORK OUTER
€ 330.50
44013
440131213
ref: 44013
PIPE-FORK INNER
€ 175.50
44018
440181005
ref: 44018
BUSHING-FRONT FORK,IN
€ 24.00
44022
440221162
ref: 44022
CYLINDER-FORK
€ 80.50
44026
440261191
ref: 44026
SPRING-FRONT FORK
€ 33.50
44026A
440261268
ref: 44026A
(OPTION)
SPRING-FRONT FORK,K=0
€ 64.50
44028
440281011
ref: 44028
GUIDE-FORK SPRING
€ 4.00
44029
440291107
ref: 44029
SEAT-FORK SPRING
€ 38.50
44037
440371163
ref: 44037
HOLDER-FORK UNDER
€ 274.00
44039
440391075
ref: 44039
HOLDER-FORK UPPER
€ 150.50
44063
440631008
ref: 44063
HOLDER-FRONT AXLE
€ 31.00
46012
460121015
ref: 46012
HOLDER-HANDLE
€ 14.50
49006
490061081
ref: 49006
BOOT
€ 50.50
92001
920011398
ref: 92001
BOLT,FLANGED 8X55
€ 2.50
92001A
920011520
ref: 92001A
BOLT
€ 10.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
92019021
ref: 92015A
NUT,LOCK,10M/M
€ 2.00
92022
920221239
ref: 92022
WASHER,12.4X28X2.3
€ 3.00
92022A
920221299
ref: 92022A
WASHER
€ 5.50
92022B
92022196
ref: 92022B
WASHER,10.5X30X2
€ 2.00
92027
920271421
ref: 92027
COLLAR
€ 41.50
92027A
920271474
ref: 92027A
COLLAR,12.5X16X8
€ 2.50
92027B
920271765
ref: 92027B
COLLAR,FORK SPRING
€ 7.50
92028
920281145
ref: 92028
BUSHING
€ 19.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92033A
920331167
ref: 92033A
RING,SNAP
€ 2.50
92049
920491104
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.50
92055
920551123
ref: 92055
RING-O
€ 4.00
92072
920721078
ref: 92072
BAND,BOOT
€ 7.00
92072A
920721166
ref: 92072A
BAND,CABLE
€ 18.00
92075
920751398
ref: 92075
DAMPER,HANDLE HOLDER
€ 2.00
92081
920811548
ref: 92081
(OPTION)
SPRING,FRONT FORK,K=0
€ 34.00
92092
92092005
ref: 92092
BUSH-SWING ARM SHAFT
€ 9.50
92093
920931086
ref: 92093
SEAL,FORK DUST
€ 12.50
184
184G0855
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.50
220
220B0316
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0408
ref: 220A
SCREW-PAN-CROS
€ 0.50
317
317G0800
ref: 317
NUT-HEX-SMALL,8MM
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
550
550D2020
ref: 550
PIN-COTTER,2.0X20
€ 0.50
