FRAME FITTING
KX500-A2 1984 UNITED KINGDOM AL

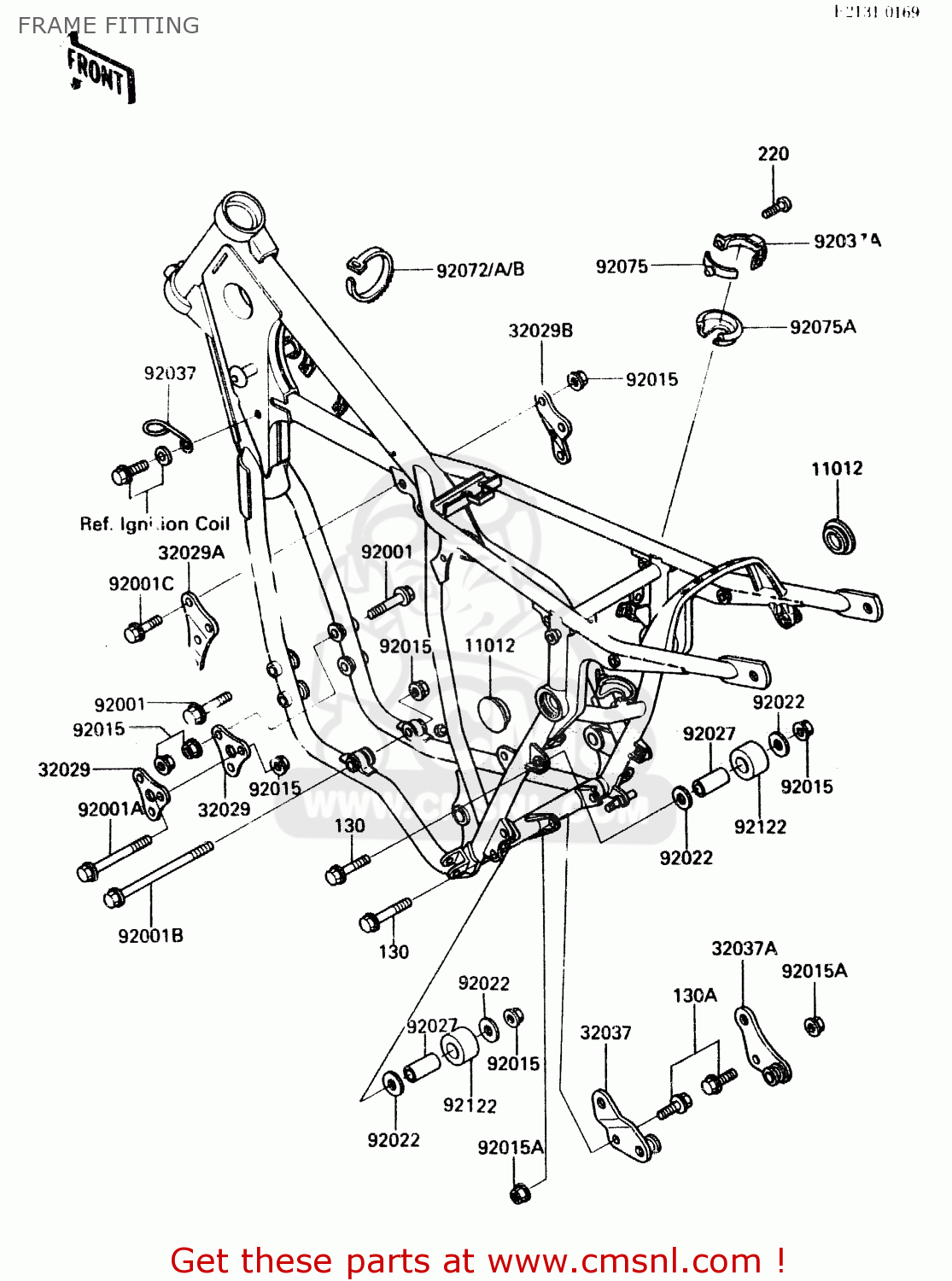

Frame fitting diagram KX500-A2 1984 UNITED KINGDOM AL
FRAME FITTING KX500-A2 1984 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11012
110121211
ref: 11012
CAP,UNI-TRAK
€ 3.50
32029
320291203
ref: 32029
BRACKET-ENGINE,FR
€ 16.50
32029A
320291204
ref: 32029A
BRACKET-ENGINE,UPP,LH
€ 20.00
32029B
320291205
ref: 32029B
BRACKET-ENGINE,UPP,RH
€ 20.00
32037
320371230
ref: 32037
BRACKET-SHOCKABSORBER
€ 27.50
32037A
320371231
ref: 32037A
BRACKET-SHOCKABSORBER
€ 28.00
92001
920011493
ref: 92001
BOLT,8X57
€ 2.50
92001A
920011689
ref: 92001A
BOLT,FLANGED,8X95
€ 2.00
92001B
920011690
ref: 92001B
BOLT,FLANGED,8X160
€ 6.00
92001C
920011691
ref: 92001C
BOLT,FLANGED,8X25
€ 2.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151234
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92022
92022092
ref: 92022
WASHER
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371148
ref: 92037
CLAMP,SPEEDOMETER
€ 3.00
92037A
920371375
ref: 92037A
CLAMP,RESERVE TANK,UP
€ 15.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072032
ref: 92072B
BAND,LONG
€ 3.00
92075
920751431
ref: 92075
DAMPER,RESERVE TANK,U
€ 12.50
92075A
920751432
ref: 92075A
DAMPER,RESERVE TANK,L
€ 8.50
92122
921221104
ref: 92122
ROLLER,CHAIN GUIDE
€ 12.00
130
130G0850
ref: 130
BOLT,8X50
€ 1.00
130A
130P1020
ref: 130A
BOLT-FLANGED,10X20
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
