CARBURETOR
KX500-A2 1984 UNITED KINGDOM AL

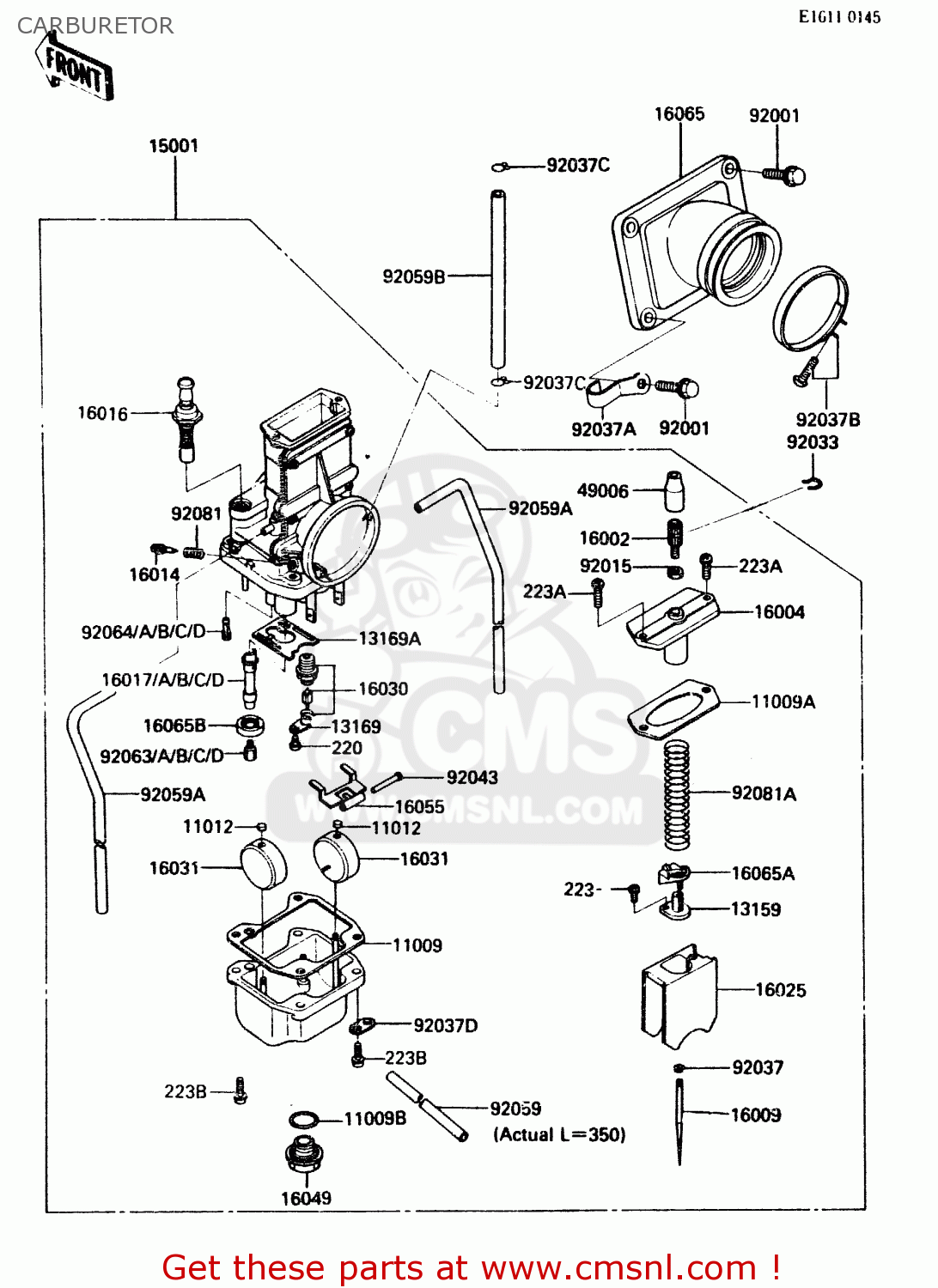

Carburetor diagram KX500-A2 1984 UNITED KINGDOM AL
CARBURETOR KX500-A2 1984 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091275
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 8.00
11009A
110091406
ref: 11009A
GASKET,CHAMBER CAP
€ 4.00
11009B
16038009
ref: 11009B
GASKET,MAIN JET COVER
€ 5.50
11012
110121047
ref: 11012
CAP,FLOAT
€ 3.50
13159
131591051
ref: 13159
CONNECTOR
€ 15.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
13169A
131691807
ref: 13169A
PLATE,FLOAT CHAMBER
€ 9.50
15001
150011085
ref: 15001
CARBURETOR-ASSY
€ 291.00
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16004
160041051
ref: 16004
CAP-CHAMBER,MIXING
€ 20.00
16009
160091224
ref: 16009
NEEDLE-JET,6EL4
€ 16.00
16014
160141031
ref: 16014
SCREW-PILOT AIR
€ 12.00
16016
160161026
ref: 16016
PLUNGER,STARTER
€ 40.50
16017
160171214
ref: 16017
(OPTION)
JET-NEEDLE,R-6
€ 21.00
16017A
160171233
ref: 16017A
(OPTION)
JET-NEEDLE,R-8
€ 22.00
16017B
160171234
ref: 16017B
(OPTION)
JET-NEEDLE,R-2
€ 27.00
16017C
160171235
ref: 16017C
(OPTION)
JET-NEEDLE,R-0
€ 23.00
16017D
160171236
ref: 16017D
JET-NEEDLE,R-4
€ 26.50
16025
160251113
ref: 16025
VALVE-THROTTLE,CA1.0
€ 52.50
16030
160301020
ref: 16030
VALVE-FLOAT,3.3
€ 33.00
16031
16031029
ref: 16031
FLOAT
€ 40.00
16049
16049006
ref: 16049
COVER-MAIN JET
€ 10.50
16055
16055009
ref: 16055
ARM-FLOAT
€ 12.50
16065
160651101
ref: 16065
HOLDER-CARBURETOR
€ 88.00
16065A
160651113
ref: 16065A
HOLDER-CARBURETOR,THR
€ 8.50
16065B
160651114
ref: 16065B
HOLDER-CARBURETOR,NEE
€ 8.50
49006
490061085
ref: 49006
BOOT,CARBURETOR
€ 22.00
92001
920011629
ref: 92001
BOLT FLANGED 6X20
€ 1.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
92037016
ref: 92037A
CLAMP,WIRING HARNESS
€ 1.50
92037B
920371313
ref: 92037B
CLAMP,CARBURETOR HOLD
€ 7.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92037D
920371474
ref: 92037D
CLAMP
€ 4.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591211
ref: 92059
TUBE,3.5X6.5X350
€ 7.00
92059A
920591292
ref: 92059A
TUBE,4X7X400,OVERFLOW
€ 5.50
92059B
920591392
ref: 92059B
TUBE,6.5X11.5X260
€ 4.50
92063
92063045
ref: 92063
(OPTION)
MAIN JET #300
€ 6.00
92063A
92063046
ref: 92063A
(OPTION)
JET-MAIN,#310
€ 8.00
92063B
92063047
ref: 92063B
JET-MAIN,#320
€ 8.50
92063C
92063048
ref: 92063C
(OPTION)
JET-MAIN,#330
€ 12.50
92063D
92063049
ref: 92063D
(OPTION)
JET-MAIN,#340
€ 10.50
92064
92064024
ref: 92064
(OPTION)
JET-PILOT,#40
€ 14.00
92064A
92064031
ref: 92064A
(OPTION)
PILOT JET, # 60 A
€ 9.00
92064B
92064044
ref: 92064B
(OPTION)
JET-PILOT,#45
€ 13.00
92064C
920641005
ref: 92064C
JET-PILOT,#50
€ 10.50
92064D
920641006
ref: 92064D
(OPTION)
JET-PILOT,#55
€ 9.00
92081
16015001
ref: 92081
PILOT AIR SCREW SPRING
€ 5.50
92081A
920811687
ref: 92081A
SPRING,THROTTLE VALVE
€ 7.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
223
223B0310
ref: 223
SCREW-PAN-WS-CROS
€ 1.50
223A
223B0412
ref: 223A
SCREW-PAN-WS-CROS
€ 3.00
223B
223B0518
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
