KICKSTARTER MECHANISM
KX450D6F KX450F 2006 USA CANADA

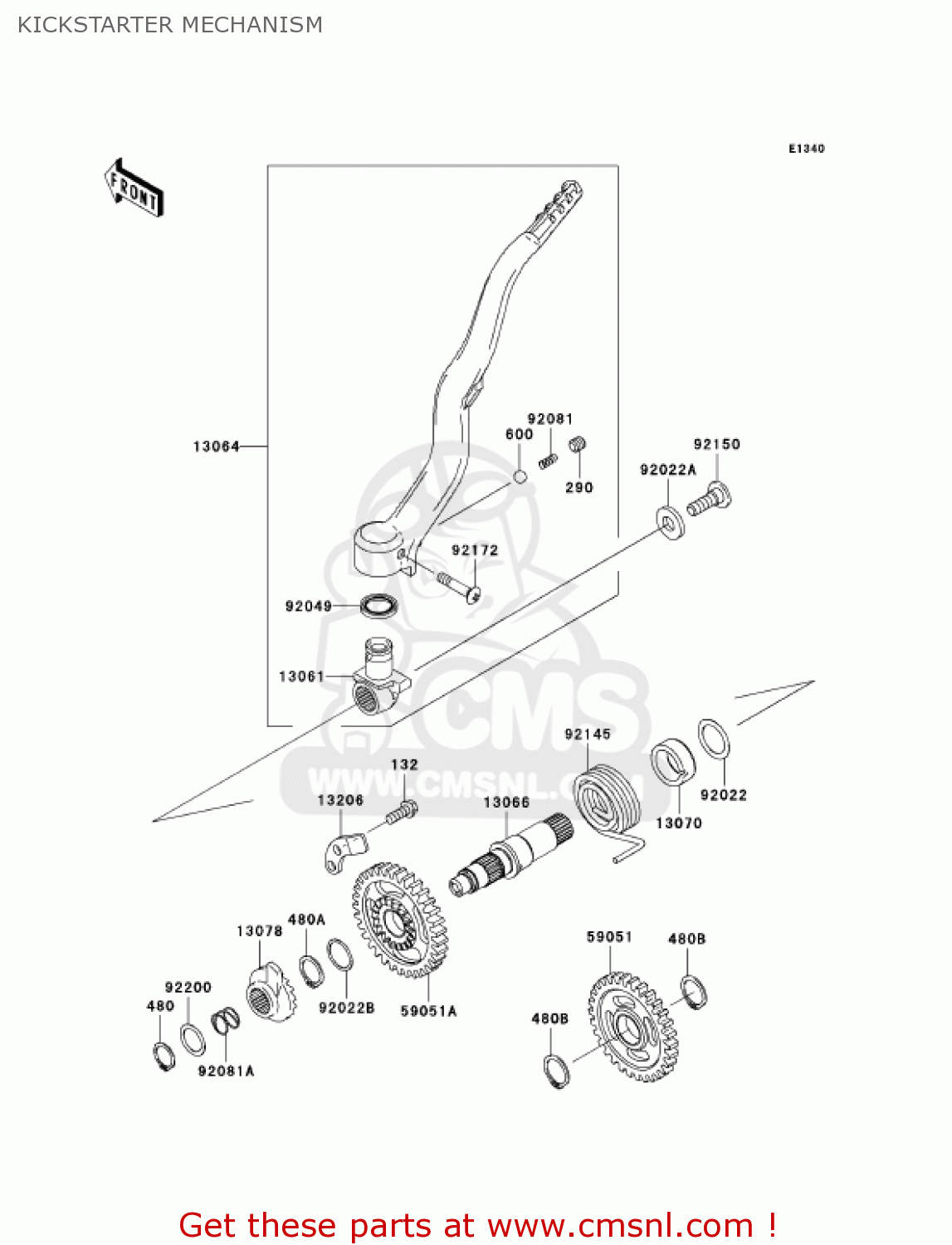

Kickstarter mechanism diagram KX450D6F KX450F 2006 USA CANADA
KICKSTARTER MECHANISM KX450D6F KX450F 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
290
290P0808
ref: 290
SCREW-SET-SOCKET
€ 2.00
480
480J1600
ref: 480
CIRCLIP-TYPE-C,16MM
€ 2.50
480A
480J1800
ref: 480A
CIRCLIP-TYPE-C,18MM
€ 1.00
480B
480J1900
ref: 480B
CIRCLIP-TYPE-C,19MM
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130610146
ref: 13061
BOSS
€ 64.50
13064
130640031
ref: 13064
LEVER-ASSY-KICK
€ 175.50
13066
130661107
ref: 13066
SHAFT-KICK
€ 98.00
13070
130701378
ref: 13070
GUIDE,KICK SPRING
€ 14.50
13078
130780008
ref: 13078
RATCHET
€ 49.00
13206
132060005
ref: 13206
GUIDE-KICK
€ 9.00
59051
590510030
ref: 59051
GEAR-SPUR,30T
€ 75.50
59051A
590510046
ref: 59051A
GEAR-SPUR,33T
€ 81.50
92022
920221885
ref: 92022
WASHER
€ 2.00
92022A
920221944
ref: 92022A
WASHER,10X22X3.2
€ 3.00
92022B
92022271
ref: 92022B
WASHER,PLAIN
€ 3.50
92049
920491387
ref: 92049
SEAL-OIL
€ 4.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92145
921450297
ref: 92145
SPRING,RETURN
€ 7.50
92150
921501858
ref: 92150
BOLT,DISC PLATE,8X25
€ 5.00
92172
921721088
ref: 92172
SCREW,6X30
€ 3.00
92200
922001209
ref: 92200
WASHER
€ 4.00
