GEAR CHANGE DRUM/SHIFT FORK(S)

KX450D6F KX450F 2006 USA CANADA

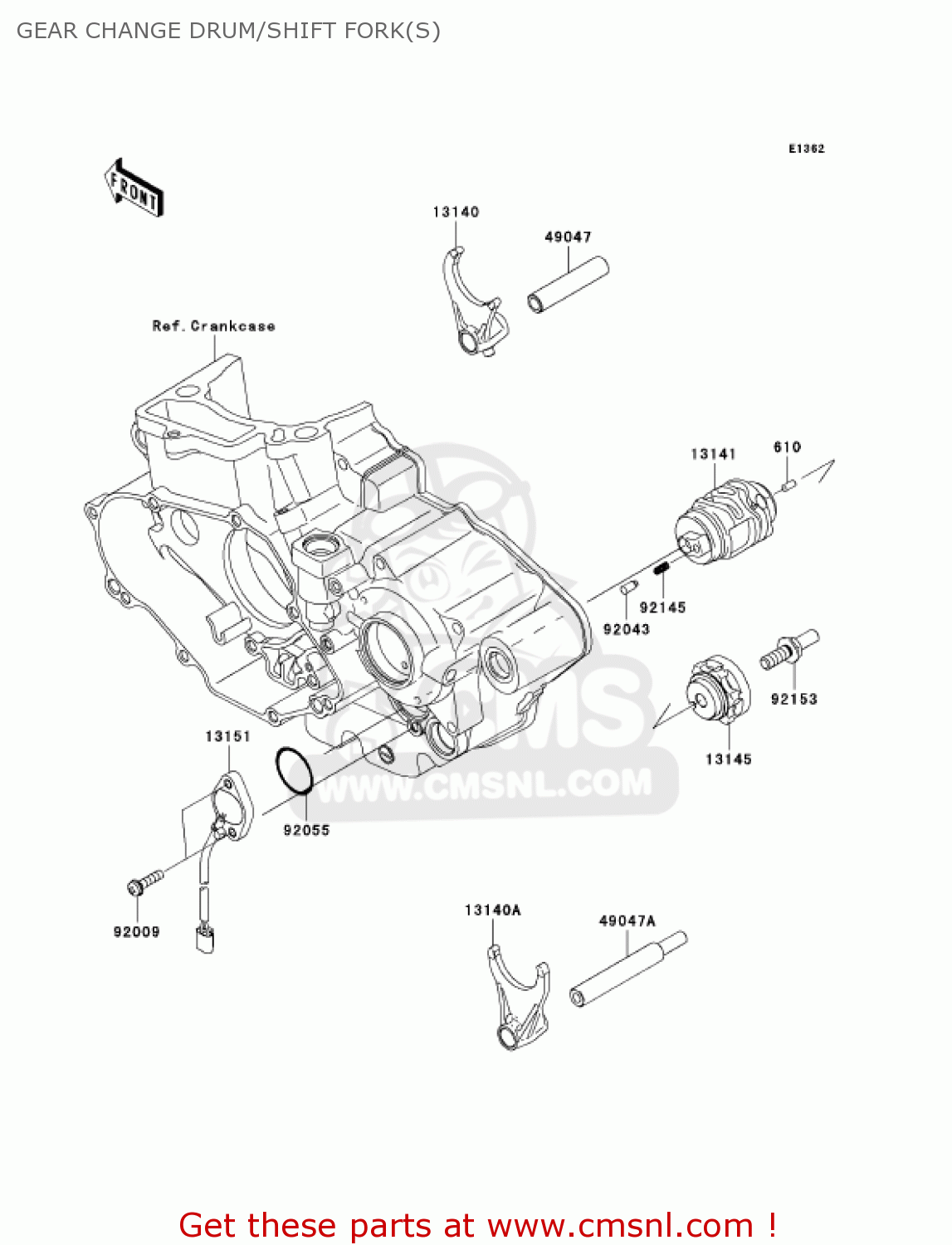

Gear change drum/shift fork(s) diagram KX450D6F KX450F 2006 USA CANADA

prices are in EUR

ref

part #

description

quantity

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

13140

131400020
ref: 13140

FORK-SHIFT,IN

€ 76.00

13140A

131400021
ref: 13140A

FORK-SHIFT,OUT

€ 76.00

13141

131410017
ref: 13141

DRUM-CHANGE

€ 98.50

13145

131450022
ref: 13145

CAM-CHANGE DRUM

€ 53.00

13151

131510008
ref: 13151

SWITCH-COMP,NEUTRAL

€ 53.00

49047

490470017
ref: 49047

ROD-SHIFT,IN

€ 12.50

49047A

490470018
ref: 49047A

ROD-SHIFT,OUT

€ 27.00

92009

920091905
ref: 92009

SCREW

€ 1.50

92043

920431654
ref: 92043

PIN

€ 2.50

92055

92055091
ref: 92055

0 RING

€ 4.00

92145

921451414
ref: 92145

SPRING

€ 2.50

92153

921530530
ref: 92153

BOLT,8X20

€ 4.00

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
