CYLINDER HEAD
KX450D6F KX450F 2006 USA CANADA

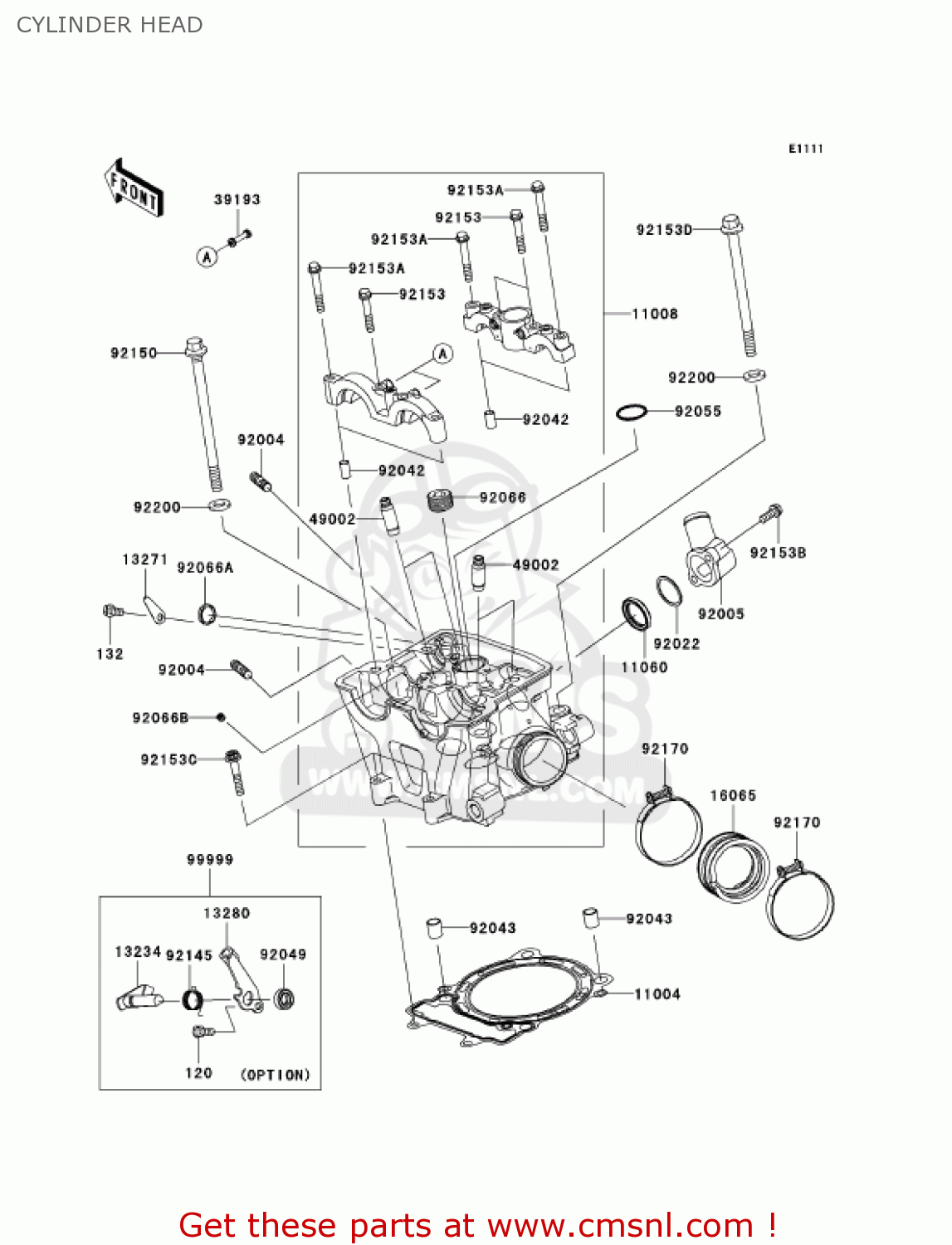

Cylinder head diagram KX450D6F KX450F 2006 USA CANADA
CYLINDER HEAD KX450D6F KX450F 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0612
ref: 120
(OPTION)
BOLT,SOCKET,6X12
€ 1.00
132
132L0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
11004
110040045
ref: 11004
GASKET-HEAD (NAS)
€ 31.00
11008
110080086
ref: 11008
HEAD-COMP-CYLINDER
€ 686.00
11060
110601300
ref: 11060
GASKET,THERMOSTAT (NAS)
€ 4.00
13234
132340009
ref: 13234
(OPTION)
SHAFT-COMP,DECOMP
€ 23.50
13271
132710675
ref: 13271
PLATE
€ 2.00
13280
132800038
ref: 13280
(OPTION)
HOLDER,DECOMP
€ 5.00
16065
160650021
ref: 16065
HOLDER-CARBURETOR
€ 13.00
39193
391930027
ref: 39193
PIPE-OIL
€ 12.50
49002
490020007
ref: 49002
GUIDE-VALVE
€ 28.00
92004
920041249
ref: 92004
STUD,8X22
€ 2.50
92005
920050018
ref: 92005
FITTING
€ 20.00
92022
92022161
ref: 92022
WASHER-THRUST,25MM
€ 7.00
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920434009
ref: 92043
PIN,10.1X12X14
€ 4.00
92049
920491196
ref: 92049
(OPTION)
SEAL-OIL
€ 3.50
92055
920550046
ref: 92055
RING-O,23.5X2.0
€ 1.50
92066
920660002
ref: 92066
PLUG,PT1/2X12.5
€ 6.50
92066A
920660024
ref: 92066A
PLUG,4X18
€ 3.00
92066B
920660068
ref: 92066B
PLUG,6X6
€ 3.50
92145
921450048
ref: 92145
(OPTION)
SPRING
€ 2.50
92150
921501935
ref: 92150
BOLT
€ 11.50
92153
921530338
ref: 92153
BOLT,6X38
€ 2.00
92153A
921530339
ref: 92153A
BOLT,6X45
€ 2.00
92153B
921530695
ref: 92153B
BOLT,6X16
€ 2.00
92153C
921530810
ref: 92153C
BOLT,6X35
€ 2.50
92153D
921531001
ref: 92153D
BOLT,FLANGED-SMALL,10
€ 11.00
92170
921701448
ref: 92170
CLAMP
€ 5.50
92200
922000114
ref: 92200
WASHER,10.5X19X2.3
€ 2.00
99999
999990023
ref: 99999
(OPTION)
KIT.,MANUAL DECOMP
€ 29.50
