FRAME FITTINGS
KX450D6F KX450F 2006 USA CANADA

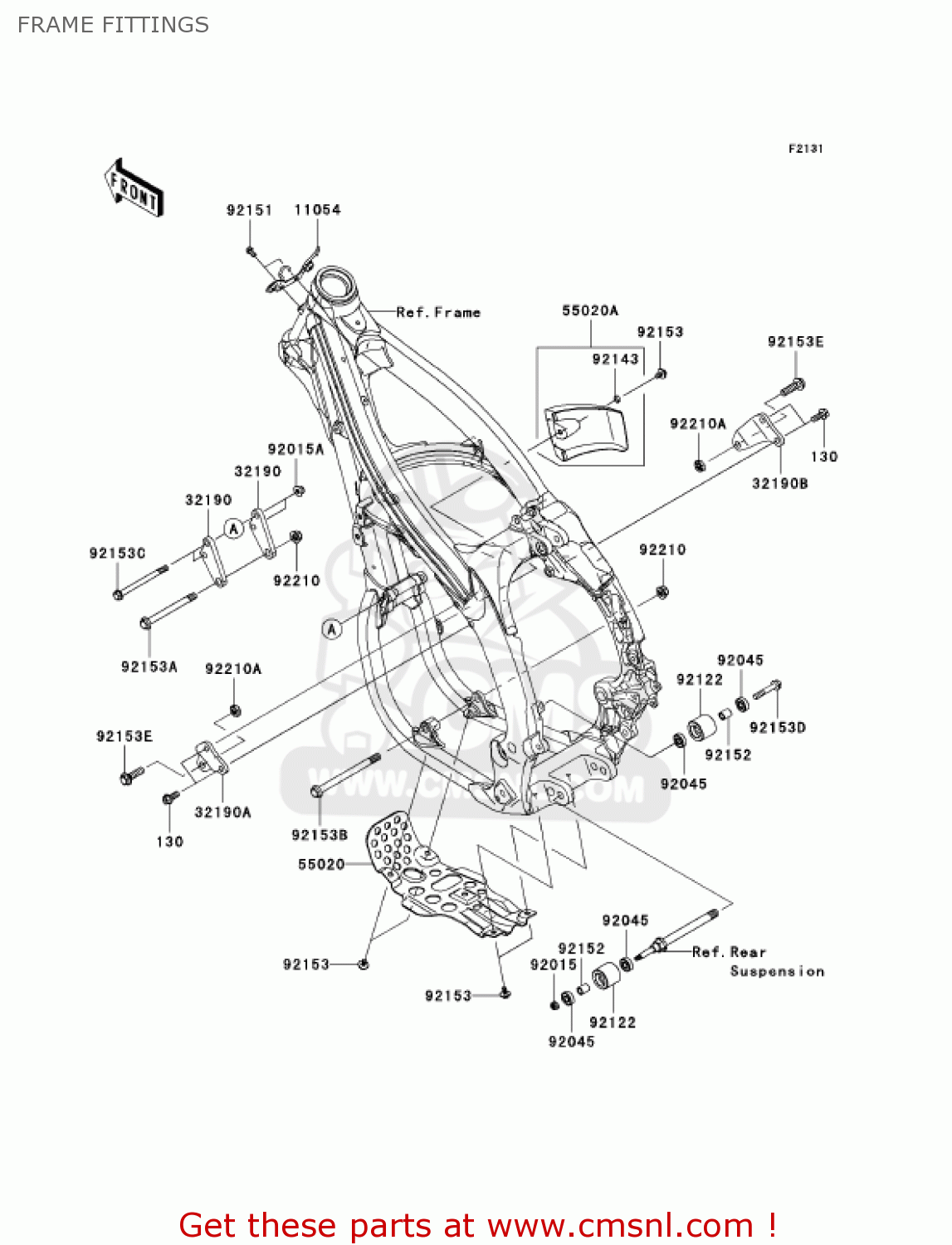

Frame fittings diagram KX450D6F KX450F 2006 USA CANADA
FRAME FITTINGS KX450D6F KX450F 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130P0820
ref: 130
BOLT-FLANGED,8X20
€ 1.00
11054
110540300
ref: 11054
BRACKET,IGNITER
€ 15.50
32190
321900232
ref: 32190
BRACKET-ENGINE,FR
€ 24.50
32190A
321900244
ref: 32190A
BRACKET-ENGINE,UPP,LH
€ 23.50
32190B
321900245
ref: 32190B
BRACKET-ENGINE,UPP,RH
€ 23.50
55020
550200177
ref: 55020
GUARD,SKID
€ 31.00
55020A
550200179RZ
ref: 55020A
GUARD,ENGINE,RH,WHITE
€ 24.00
92015
920151339
ref: 92015
NUT,LOCK,FLANGED,6MM
€ 1.00
92015A
920151432
ref: 92015A
NUT,8MM
€ 4.50
92045
920451009
ref: 92045
BEARING-BALL,608LLU/2
€ 34.50
92122
921220007
ref: 92122
ROLLER,CHAIN GUIDE
€ 9.00
92143
921431307
ref: 92143
COLLAR
€ 2.00
92151
921511233
ref: 92151
BOLT,6X10
€ 1.50
92152
921520211
ref: 92152
COLLAR,8.5X12.5X15.5
€ 4.50
92153
921530503
ref: 92153
BOLT,6X12
€ 2.00
92153A
921530659
ref: 92153A
BOLT,FLANGED,10X102
€ 6.00
92153B
921530704
ref: 92153B
BOLT,FLANGED,10X137
€ 8.50
92153C
921530705
ref: 92153C
BOLT,FLANGED,8X100
€ 6.00
92153D
921530751
ref: 92153D
BOLT,FLANGED,8X45
€ 3.50
92153E
921530802
ref: 92153E
BOLT,FLANGED,10X35
€ 4.00
92210
922101080
ref: 92210
NUT
€ 7.00
92210A
922101184
ref: 92210A
NUT
€ 2.00
