FOOTRESTS/STAND

KX420-A2 KX420 1981 UNITED KINGDOM USA CANADA EXPORT

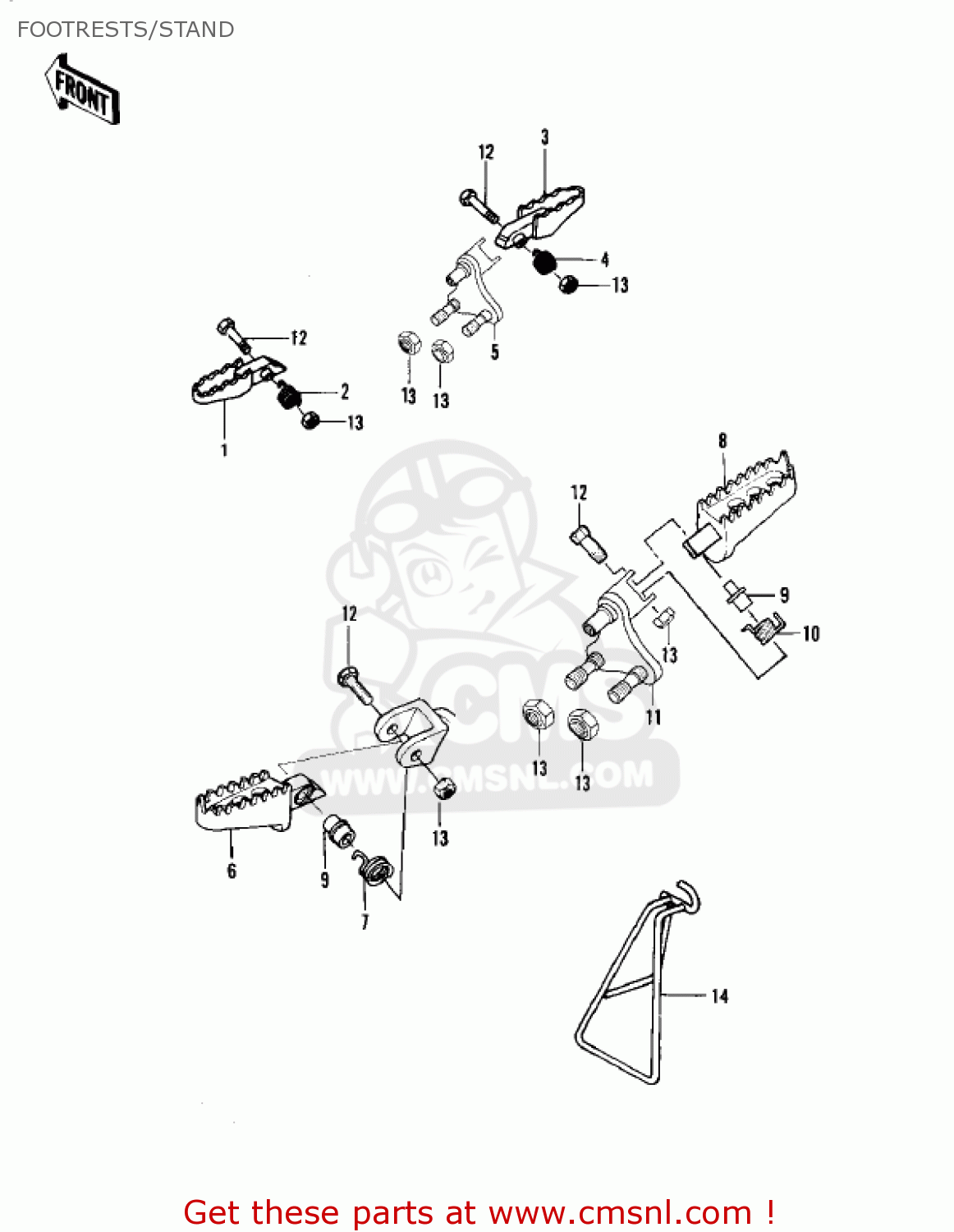

Footrests/stand diagram KX420-A2 KX420 1981 UNITED KINGDOM USA CANADA EXPORT

prices are in EUR

ref

part #

description

quantity

340281034
ref: 1

STEP,LH

€ 64.50

920811254
ref: 2

SPRING,FOOTREST,L.H

€ 3.50

340281033
ref: 3

STEP,RH

€ 36.00

920811255
ref: 4

SPRING,FOOTREST,R.H

€ 4.50

340031049
ref: 5

HOLDER,FOOTREST STEP

€ 39.00

340281034
ref: 6

STEP,LH

€ 64.50

920811254
ref: 7

SPRING,FOOTREST,L.H

€ 3.50

340281033
ref: 8

STEP,RH

€ 36.00

920271314
ref: 9

COLLAR,STEP

€ 7.00

920811255
ref: 10

SPRING,FOOTREST,R.H

€ 4.50

340031092
ref: 11

HOLDER,STEP

€ 30.00

920011028
ref: 12

BOLT,HEX HEAD,10X40

€ 7.50

92019021
ref: 13

NUT,LOCK,10M/M

€ 2.00

340241037
ref: 14

STAND,SIDE

€ 35.00

FOOTRESTS/STAND

all assemblies
