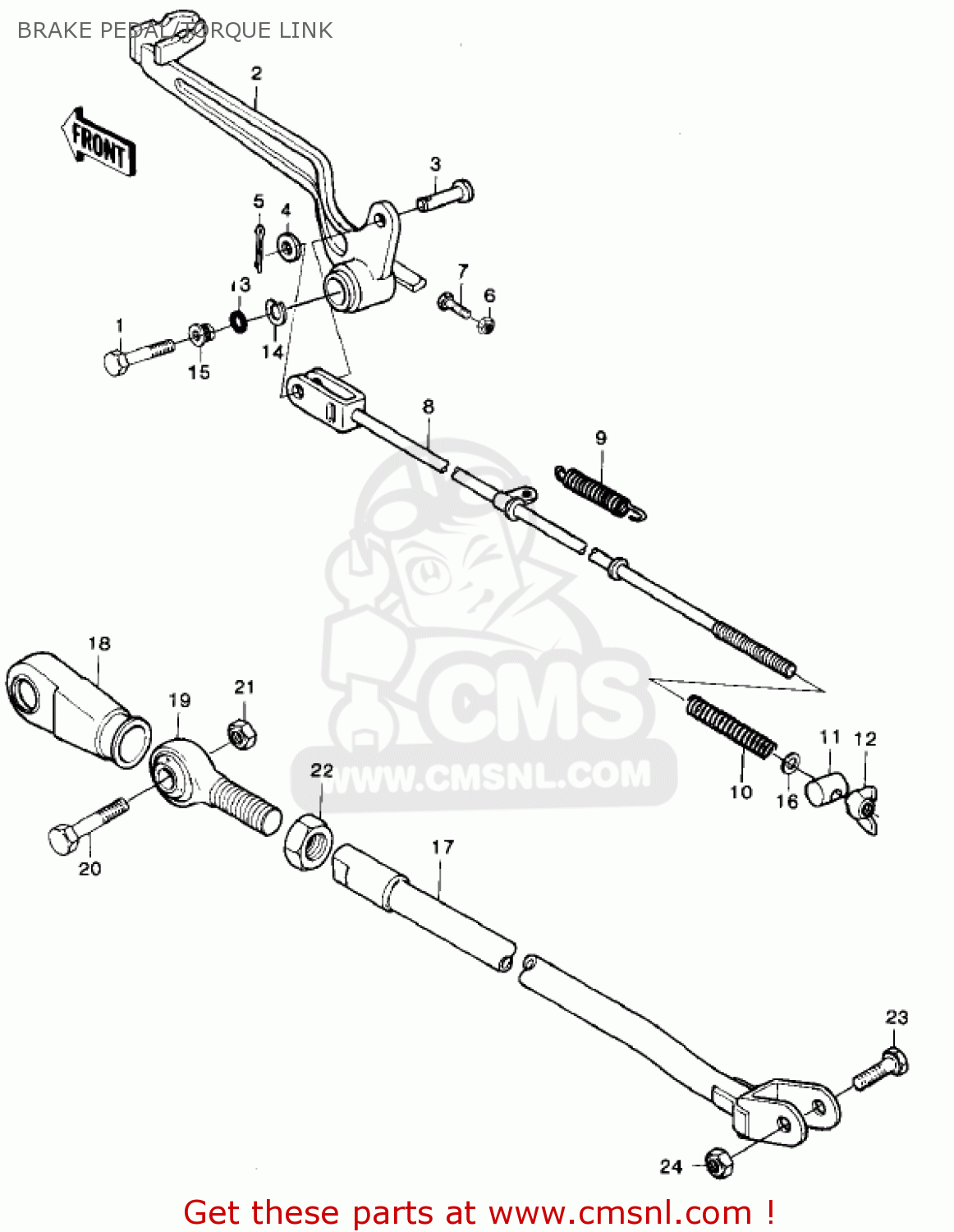

BRAKE PEDAL/TORQUE LINK

ref

part #

description

quantity

1

114G0812
ref: 1
KX420-A1

BOLT-SMALL,8X12

€ 2.00

1

114G0812
ref: 1
KX420-A2

BOLT-SMALL,8X12

€ 2.00

2

430011042
ref: 2

LEVER,BRAKE

€ 54.00

3

92043064
ref: 3

PIN-BRAKE ROD FITTING

€ 4.50

4

410B0600
ref: 4

WASHER-PLAIN-SMALL,6M

€ 0.50

5

550D2015
ref: 5

PIN-COTTER,2.0X15

€ 1.00

6

311B0600
ref: 6

NUT,6MM

€ 0.50

7

112B0622
ref: 7

BOLT, 6X22

€ 2.50

8

430111019
ref: 8

ROD-BRAKE

€ 28.00

9

920811059
ref: 9
KX420-A1

SPRING,RETURN

€ 5.50

9

920814012
ref: 9
KX420-A2

SPRING,RETURN

€ 4.50

10

43012001
ref: 10

SPRING,BRAKE ROD

€ 3.00

11

920431024
ref: 11

PIN,BRAKE

€ 6.00

12

920154004
ref: 12

NUT,BRAKE ADJUSTING

€ 4.50

13

670B2018
ref: 13

O RING,18MM

€ 1.00

14

461F0800
ref: 14

WASHER-SPRING,8MM

€ 0.50

15

110121101
ref: 15

CAP

€ 4.50

16

920224003
ref: 16
KX420-A2

WASHER,BRAKE ROD

€ 1.00

17

430071014
ref: 17

TORQUE LINK,RR BRAKE

€ 46.00

18

490061035
ref: 18

BOOT,BALL JOINT

€ 5.50

19

592661003
ref: 19

JOINT,BALL TORQUE LNK

€ 58.00

20

113P1235A
ref: 20

BOLT,HEX HEAD 12X35

€ 4.00

21

92019009
ref: 21

NUT,LOCK,12MM

€ 5.00

22

315B1200
ref: 22

NUT,12MM

€ 0.50

23

920011577
ref: 23

BOLT,FLANGED,8X35

€ 2.50

24

92017013
ref: 24
KX420-A1

NUT,LOCK,8MM

€ 5.50

24

920151134
ref: 24
KX420-A2

NUT,8MM

€ 3.50

all assemblies
